LEESON 116613.00 A6C34XK4C Explosion Proof Motor | AJ2QTY A6C34XK4C

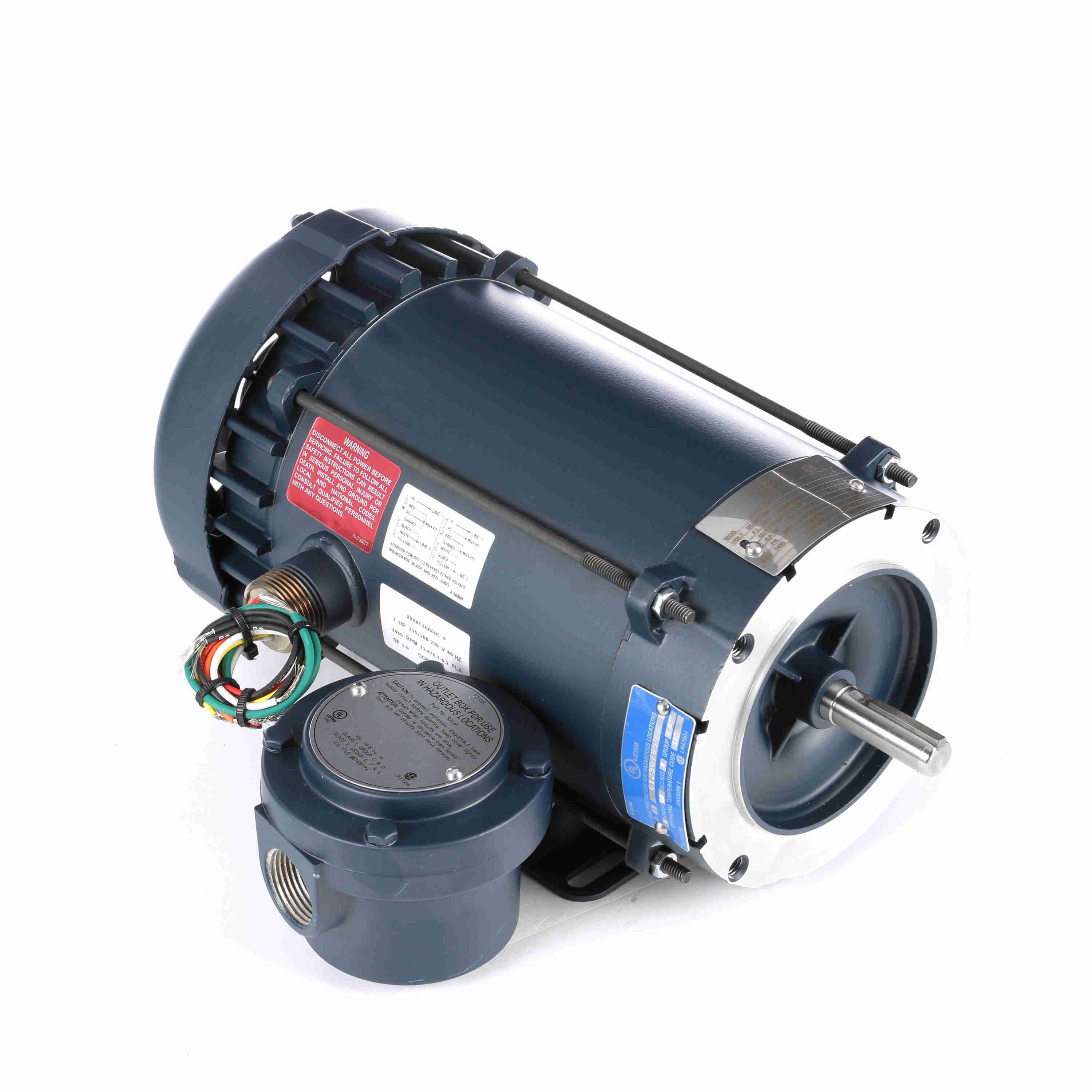

LEESON 116613.00 6C34XK4C Explosion Proof Motor, 1 HP, 1 Phase, 60 Hz, 115/208-230V, 3600 RPM

Item: AJ2QTYModel: 116613.00Cross Ref: 820J67 / 6C34XK4C
Check Availability
In Stock

Get it by Tuesday, Dec 23

€1,665.73
10.00% off
€1,499.16 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Explosion Proof Motor
Ambient Temp. 40°C
Amps 12.4/6.2-6.7A
Assembly A-S90894
Code K
Design N
Design Code No
Drive End Bearing Size 6203
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 72%
Electrical Type Capacitor Start, Induction Run
Enclosure Type EPFC
Frame 56C
Frame Length 7.31"
Frame Material Rolled Steel
Frame Type 56C
Frequency 60 Hz
Full Load Amps 12.4/6.7-6.2A
Grease Type Polyrex EM
Hazardous Location Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C
Hazardous Location Class 1C, D/2F, G
Height 12 22/25"
Hp 1 hp
Insulation Class Class B
Ip Code IP54
Kva Code K
Kw 0.75 kW
Length 17.94"
Lubrication Polyrex EM
Max. Rpm 3450 RPM
Motor Mounting Type Rigid Base
Motor Orientation Horizontal
Motor Shaft Rotation Selective Counter Clockwise
Motor Type Capacitor Start/Induction Run
Mounting Type Rigid Base
Nameplate Rpm 3600 RPM
No. Of Poles 2
No. Of Speeds 1
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Rating 0.75 kW
Packaging B
Phase 1
Power 0.75 kW
Power Factor 76
Rpm 3400-3600 RPM
Service Factor 1
Shaft Dia. 5/8"
Shaft Length 1 22/25"
Shaft Type NEMA 56
Starting Method Across The Line
Temp. Code T3C
Thermal Protection Automatic
Type CX
Voltage 115/208-230V
Width 13.06"

Shipping Info:

Ship weight (kg) 16.2
Ship height (cm)32.72
Ship length (cm)45.57
Ship width (cm)33.17
Country of OriginMX

Product Details:

    • Eff 100%: 72
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6203
    • Nameplate: A-92340
    • Winding: ZC223
    • GROUP: 3
    • Paint: BLUE - LEESON (ENAMEL)

Product Variants

ProductModelHpNameplate RpmHazardous Location ClassOutput RatingTemp. CodeNo. Of PolesMotor Shaft RotationFull Load AmpsPrice
LEESON 116605.00 A6C34XK7B Explosion Proof Motor | AJ2QTP A6C34XK7B 116605.0033/100 hp3450 RPM1 C, D / 2 F, G0.246 kWT3B2Counter Clockwise7/3.2-3.5A€1,479.18
LEESON 116606.00 A6C17XK33C Explosion Proof Motor | AJ2QTQ A6C17XK33C 116606.0033/100 hp1800 RPM1C, D/2F, G0.246 kWT3C4Selective Counter Clockwise6.6/3.1-3.3A€1,393.97
LEESON 116607.00 A6C17XK31B General Purpose Motor | AJ2QTR A6C17XK31B 116607.0033/100 hp1200 RPM1C, D/2F, G0.246 kWT3C6Selective Counter Clockwise7.8/3.6-3.9A€1,052.13
LEESON 116608.00 A6C34XK6B General Purpose Motor | AJ2QTT A6C34XK6B 116608.001/2 hp3600 RPM1C, D/2F, G0.37 kWT3C2Selective Counter Clockwise8.4/4-4.2A€885.95
LEESON 116609.00 A6C17XK32C General Purpose Motor | AJ2QTU A6C17XK32C 116609.001/2 hp1800 RPM1C, D/2F, G0.37 kWT3C4Selective Counter Clockwise8.8/4.2-4.4A€1,682.37
LEESON 116610.00 A6C17XK34B Explosion Proof Motor | AJ2QTV A6C17XK34B 116610.001/2 hp1200 RPM1C, D/2F, G0.37 kWT3C6Selective Counter Clockwise9.6/4.7-4.8A€1,738.24
LEESON 116611.00 A6C34XK5B General Purpose Motor | AJ2QTW A6C34XK5B 116611.003/4 hp3600 RPM1C, D/2F, G0.56 kWT3C2Selective Counter Clockwise10.6/5.3A€947.99
