LEESON 119424.00 A6T34XC49A General Purpose Motor 50-60 Hertz | AJ2RBJ A6T34XC49A

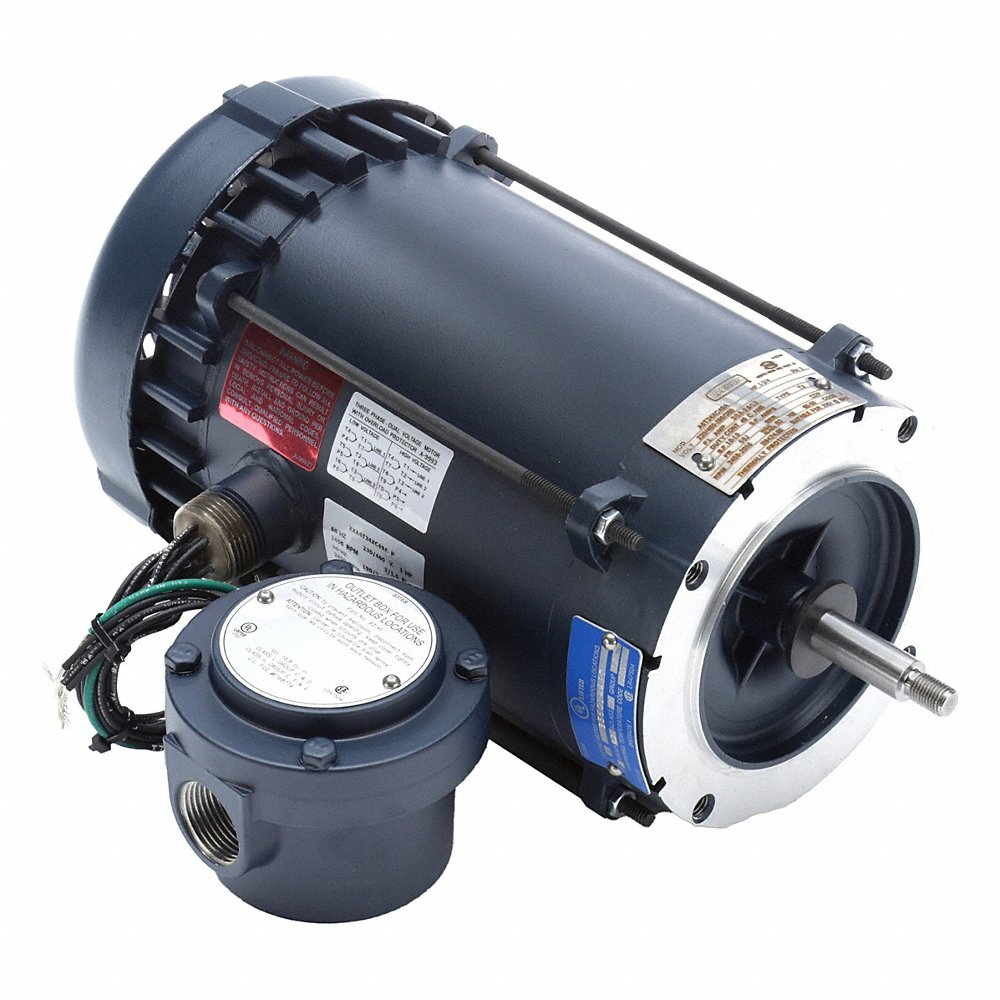

LEESON 119424.00 6T34XC49A Explosion Proof Motor, 1/0.75 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 RPM

Item: AJ2RBJModel: 119424.00Cross Ref: 820J73 / 6T34XC49A
Check Availability
In Stock
HP
Frame

Get it by Tuesday, May 19

€1,223.71 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Explosion Proof Motor
Ambient Temp. 40°C
Amps 3/1.5A
Code K
Conduit Box Position F1
Design B
Drive End Bearing Size 6203
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 80%
Electrical Type Squirrel Cage, Induction Run
Enclosure Type EPFC
Frame 56J
Frame Length 6.81"
Frame Material Rolled Steel
Frame Type 56J
Frequency 60 Hz
Full Load Amps 3/1.5A
Grease Type Polyrex EM
Hazardous Location Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C
Hazardous Location Class 1C, D/2F, G
Height 14"
Hp 1 hp
Insulation Class Class B
Ip Code IP54
Kva Code K
Kw 0.75 kW
Length 22.19"
Lubrication Polyrex EM
Max. Rpm 3450 RPM
Motor Orientation Horizontal
Motor Shaft Rotation Reversible
Motor Type Squirrel Cage Induction Run
Mounting Type Round
Nameplate Rpm 3600/3000 RPM
No. Of Poles 2
No. Of Speeds 1
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Rating 0.75 kW
Packaging F
Phase 3
Power 0.75 kW
Power Factor 83.5
Product Datasheet leeson-119424-00.pdf
Resistance Main 19.5 ohms
Rpm 3400-3600 RPM
Service Factor 1
Shaft Dia. 5/8"
Shaft Length 2 11/25"
Shaft Type J
Starting Method Across The Line
Temp. Code T3C
Thermal Protection Automatic
Type TX
Voltage 230/460V
Width 16 1/2"

Shipping Info:

Ship weight (kg) 18
Ship height (cm)35.56
Ship length (cm)56.36
Ship width (cm)41.91
Country of OriginMX

Product Details:

    • Supersedes Leeson - 116184.00 / A6T34XC31C
    • Eff 75%: 78
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6203
    • Nameplate: 91618
    • Winding: ZT270
    • GROUP: 1
    • Paint: BLUE - LEESON (ENAMEL)
    • Eff 100%: 80 / 81.5

Documentation:

Datasheet

Product Variants

ProductModelVoltageHpFrameNameplate RpmPhaseMotor ApplicationMotor Mounting TypeMotor Thermal ProtectionPrice
MARATHON MOTORS 056H17E5301 Vector Motor 0.75 Lb-ft 1/4 Hp 230/460 V | AA6ZUB 15G104 / Y600 056H17E5301230/460V AC1/4 hp56C1725 RPM3CraneRigid BaseThermostat€919.47
MARATHON MOTORS 056H17E5302 Vector Motor 1 Lb-ft 1/3 Hp 230/460 V | AA6ZUC 15G105 / Y601 056H17E5302230/460V AC1/3 hp56C1725 RPM3CraneRigid BaseThermostat€1,078.24
MARATHON MOTORS 056H17E5303 Vector Motor 1.52 Lb-ft 1/2 Hp 230/460 V | AA6ZUD 15G106 / Y602 056H17E5303230/460V AC1/2 hp56C1725 RPM3CraneRigid BaseThermostat€1,371.25
MARATHON MOTORS 056H17E5304 Vector Motor 2.25 Lb-ft 3/4 Hp 230/460 V | AA6ZUE 15G107 / Y603 056H17E5304230/460V AC3/4 hp56C1725 RPM3CraneRigid BaseThermostat€1,287.06
MARATHON MOTORS 056H17E5305 Vector Motor 3 Lb-ft 1 Hp 230/460 V | AA6ZUF 15G108 / Y604 056H17E5305230/460V AC1 hp56C1725 RPM3CraneRigid BaseThermostat€1,409.55
LEESON 118015.00 Hazardous Location Dc Motor 1/3 Hp 1750 Rpm 90vdc | AC7MAB 38N845 / C6D17EK1 118015.0090V33/100 hp56C1750 RPM-Hazardous LocationFace, BaseAuto€5,029.70
LEESON 118016.00 Hazardous Location Dc Motor 1/2 Hp 1750 Rpm 90vdc | AC7MAC 38N846 / C6D17EK2 118016.0090V1/2 hp56C1750 RPM-Hazardous LocationFace, BaseAuto€4,540.55
