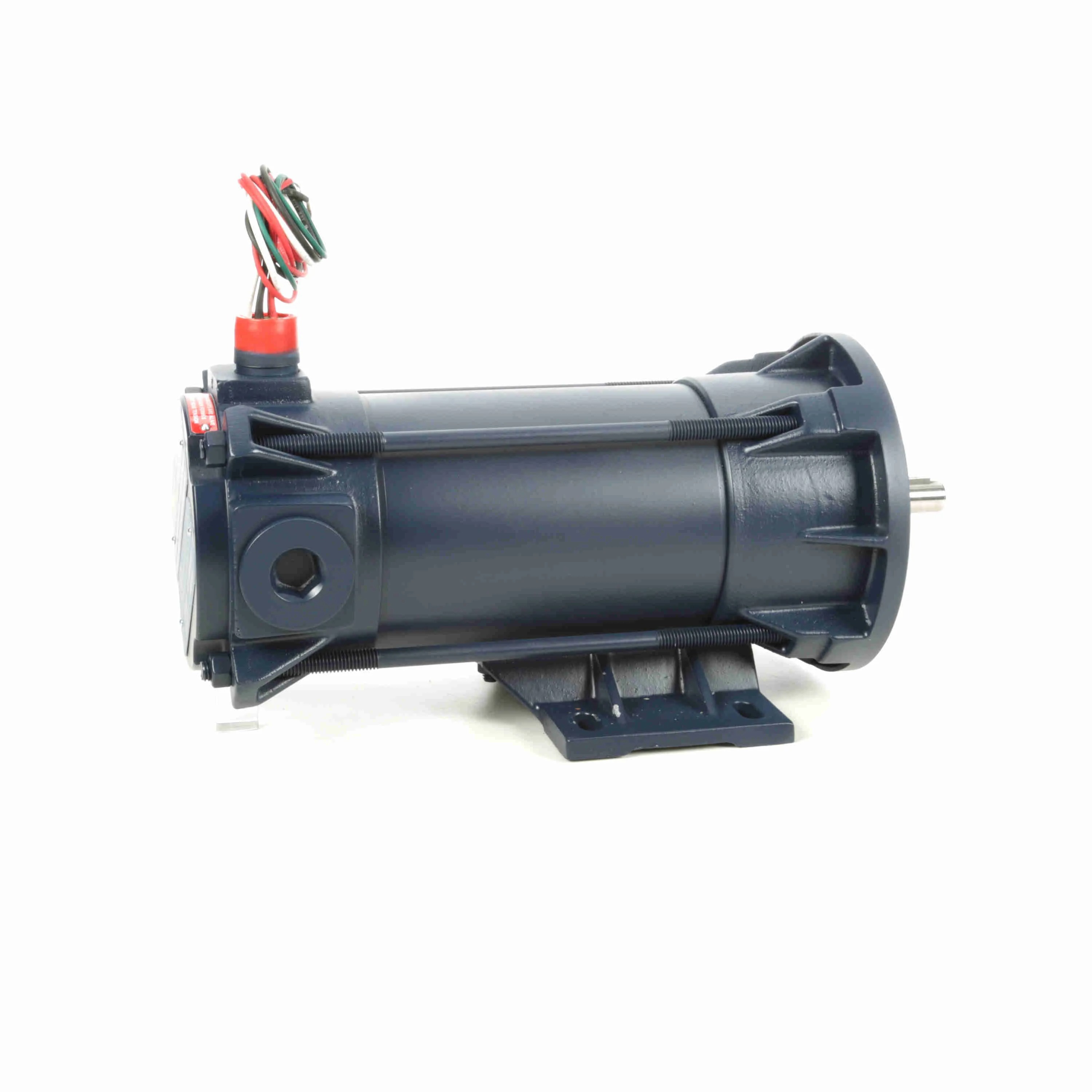

LEESON 118016.00 C6D17EK2A Explosion Proof Motor, 0.50 HP, 90V, 1750 RPM
Get it by Friday, Aug 21
5.00% off
€4,313.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Explosion Proof Motor |
| Ambient Temp. | 40°C |
| Amps | 4.7A |
| Bearing Type | Ball |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 84.4% |
| Efficiency Group | Standard |
| Enclosure Type | Tenv |
| Frame | 56C |
| Frame Material | Steel |
| Frame Type | S56C |
| Full Load Amps | 4.7A |
| Hazardous Location Class | 1 C, D / 2 F, G |
| Height | 9" |
| Hp | 1/2 hp |
| Included | 6" Leads Through 3/4-14 NPT |
| Ins. Class | Class H |
| Insulation Class | Class H |
| Kw | 0.37 kW |
| Lead Length | 6" |
| Length | 18.41" |
| Length Less Shaft | 12 5/16" |
| Max. Ambient Temp. | 40°C |
| Max. Speed | 1750 RPM |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | Permanent Magnet Dc |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face/Base |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Magnet DC |
| Mounting Type | Face, Base |
| Nameplate Speed | 1750 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 84.4% |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 14 7/16" |
| Product Datasheet | leeson-118016-00.pdf |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.1" |
| Speed | 1700-1800 RPM |
| Temp. Code | T5 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 90V |
| Width | 10 1/2" |
Shipping Info:
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 46.76 |
| Ship width (cm) | 26.67 |
| HS code | 8501314000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Hp | Voltage | Frame | Phase | Motor Application | Motor Mounting Type | Motor Thermal Protection | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056H17E5301 | 1/4 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €919.47 | |
 |
056H17E5302 | 1/3 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €1,078.24 | |
 |
056H17E5303 | 1/2 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €1,452.07 | |
 |
056H17E5304 | 3/4 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €1,287.06 | |
 |
056H17E5305 | 1 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €1,409.55 | |
 |
118015.00 | 33/100 hp | 90V | 56C | - | Hazardous Location | Face, Base | Auto | Permanent Magnet Dc | €5,029.70 | |
 |
118017.00 | 1/2 hp | 180V | 56C | - | Hazardous Location | Face, Base | Auto | Permanent Magnet Dc | €3,534.54 |
