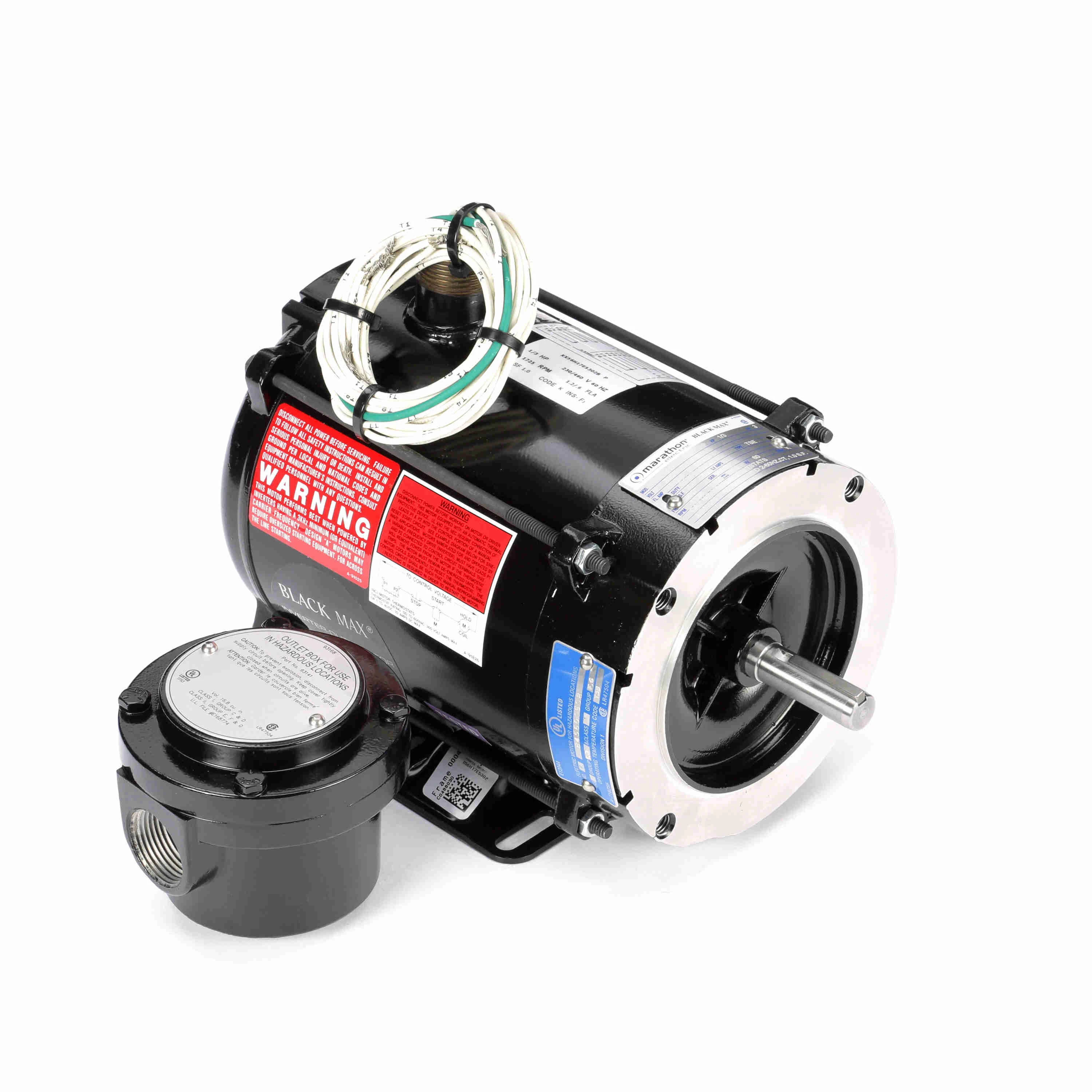

LEESON 056H17E5302 Y601 / 56H17E5302B Explosion Proof Motor, 0.33 HP, 3 Phase, 60 Hz, 230/460 V, 1800 RPM
Get it by Thursday, Dec 18
€1,078.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Vector Motor |
| Ambient Temp. | 40°C |
| Application | Crane |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Color | Black |
| Conduit Box Position | F3 |
| Duty Cycle | Continuous |
| Efficiency | 74.5% |
| Efficiency Group | Standard |
| Encoder Acceptable | No |
| Encoder Shaft | None |
| Finish | Black |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.2/0.6A |
| Full Load Torque | 1 lbs.-ft. |
| Hazardous Location Class | 1 C, D, 2 F, G |
| Hp | 1/3 hp |
| Insulation Class | Class F |
| Insulation Feature | Max Guard Class F |
| Max. Ambient Temp. | 104°F |
| Max. Operating Frequency | 120 Hz |
| Max. Rpm | 3600 RPM |
| Max. Speed | 3600 RPM |
| Motor Application | Crane |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Thermostat |
| Motor Type | Three Phase |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1725 RPM |
| Nema Design | A |
| Nominal Efficiency | 74% |
| Number Of Speeds | 1 |
| Overall Length | 12" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Speed Range | 1000:1 |
| Speed Range | 1000:1 CT |
| Speed Ratio | 1000:1 |
| Standards | Ul Listed And Csa Certified |
| Thermal Protection | None |
| Torque | 1 lbs.-ft. |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Warranty | 3 yrs. |
| Weight | 26 lbs. |
Shipping Info:
| Ship weight (kg) | 11.7 |
| Ship height (cm) | 23.16 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| HS code | 8501514040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Hp | Efficiency Group | Nominal Efficiency | Full Load Amps | Efficiency | Overall Length | Full Load Torque | Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056H17E5301 | 1/4 hp | Standard | 71% | 1.1/0.55A | 71% | 12" | 0.75 lbs.-ft. | 0.75 lbs.-ft. | €919.47 | |
 |
056H17E5303 | 1/2 hp | Standard | 80% | 1.6/0.8A | 80% | 12 1/2" | 1.52 lbs.-ft. | 1.52 lbs.-ft. | €1,371.25 | |
 |
056H17E5304 | 3/4 hp | Standard | 82.5% | 2.4/1.2A | 82.5% | 13 1/2" | 2.25 lbs.-ft. | 2.25 lbs.-ft. | €1,287.06 | |
 |
056H17E5305 | 1 hp | Epact | 84% | 3/1.5A | 84% | 14" | 3 lbs.-ft. | 3 lbs.-ft. | €1,409.55 |
