DESTACO Hold Down Toggle Clamps
Filter
A
B
C
D
E
F
G
H
I| Style | Model | Max. Holding Capacity | Holding Capacity | Material | Overall Depth | Height Under Arm | Mounting Holes Center To Center (short Side) | Clamp Bar Opening | Clamp Arm Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 305-URSS | 200 lbf. | 200 lbs. | Stainless Steel | 1.43" | 12/25" | 0.53" | 90° | 1 1/5" | €76.00 | |
| B | 307-URSS | 350 lbf. | 350 lbs. | Stainless Steel | 2 9/25" | 0.89" | 0.91" | 92° | 1.89" | €126.65 | |

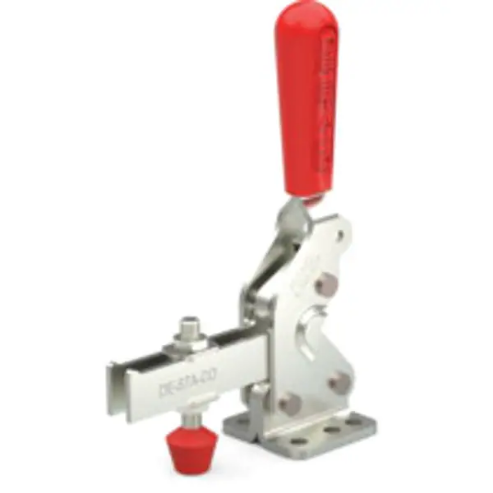

| C | 207-L | 500 lbf. | 500 lbs. | Steel | 6.93" | 1 1/4" | 3/4" | 99° | 5.06" | €37.19 | |
| D | 225-URSS | 500 lbf. | 500 lbs. | Stainless Steel | 1.89" | 1.29" | 22/25" | 92° | 2.69" | €117.78 | |
| E | 2002-URSS | 600 lbf. | 600 lbs. | Stainless Steel | 5 7/25" | 0.95" | 0.9" | 75° | 1.93" | €108.27 | |
| F | 2002-USS | 600 lbf. | 600 lbs. | Stainless Steel | 5 7/25" | 0.95" | 0.9" | 75° | 1.93" | €70.70 | |
| G | 210-SB | 750 lbf. | 750 lbs. | Steel | 9.11" | 2 1/5" | 1.26" | 103° | 3.62" | €70.70 | |
| H | 2007-URSS | 1000 lbf. | 1000 lbs. | Stainless Steel | 7.94" | 1 1/4" | 1 1/4" | 76° | 2 22/25" | €134.31 | |
| I | 2007-USS | 1000 lbf. | 1000 lbs. | Steel | 7.94" | 1 1/4" | 1 1/4" | 76° | 2 22/25" | €88.37 |
