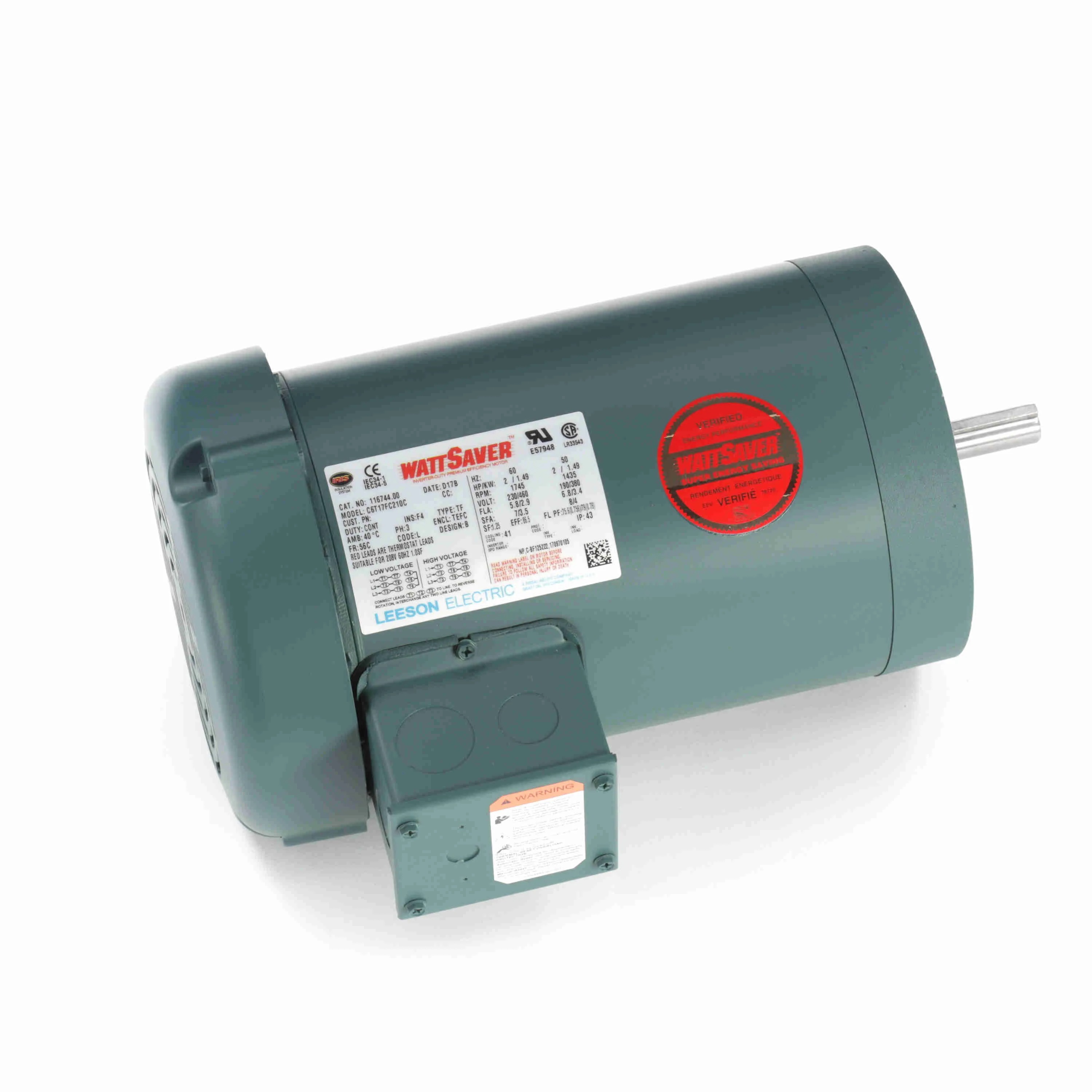

LEESON 116744.00 C6T17FC210C General Purpose Motor, 2 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Tuesday, Dec 23
€1,000.34 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Amps | 5.8/2.9A |
| Bearing Type | Ball |
| Code | L |
| Conduit Box Position | F1 |
| Design Code | B |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Frame | 56C |
| Frame Length | 8" |
| Frame Material | Rolled Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 5.8/2.9A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 2 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP43 |
| Kva Code | L |
| Kw | 1.5 kW |
| Length | 19 1/2" |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1745 RPM |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | NEMA 56 |
| Motor Shaft Rotation | Reversible |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Thermal Protection | T Stat |
| Motor Type | Three Phase |
| Mounting Type | Face |
| Nameplate Rpm | 1745 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 1.49 kW |
| Overall Length | 13 1/2" |
| Packaging | B |
| Phase | 3 |
| Power Factor | 75.6 |
| Removable Base | Permanently Lubricated Bearings |
| Resistance Main | 6 ohms |
| Rpm | 1700-1800 RPM |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Standards | Csa, Ul |
| Starting Method | Across The Line |
| Thermal Protection | Thermostat |
| Type | TF |
| Voltage | 230/460V |
| Weight | 45 lbs. |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Supersedes Leeson - 110451.00
- Eff 100%: 86.5
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 993500
- Winding: T634340
- GROUP: 3
- Paint: GREEN - LEESON WATTSAVER
- S. F Amps: 7 / 3.5
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Frequency | Full Load Amps | Mounting Type | Motor Type | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
101769.00 | 208-230/460V | 1725 RPM | 33/100 hp | 60 Hz | 1.5-1.6/0.8A | Face | Three Phase | 1.15 | €680.90 | |
 |
101780.00 | 208-230/460V | 1800/1500 RPM | 1/2 hp | 60 Hz | 1.8/0.9A | C Face, Footless | Squirrel Cage Induction Run | 1.15 | €604.30 | |
 |
101981.00 | 208-230V | 1800 RPM | 1/4 hp | 60 Hz | 1.2-1.4/0.7A | Rigid Base | Squirrel Cage Induction Run | 1.15 | €383.09 | |
 |
102860.00 | 208-230/460V | 1725 RPM | 1/2 hp | 60 Hz | 1.9-2/1A | Face | Three Phase | 1.15 | €469.95 | |
 |
102863.00 | 208-230/460V | 1800 RPM | 33/100 hp | 60 Hz | 1.3/0.65A | C Face, Footless | Squirrel Cage Induction Run | 1.15 | €413.30 | |
 |
110047.00 | 208-230/460V | 1725 RPM | 3/4 hp | 60 Hz | 2.8/1.4A | Face | Squirrel Cage Induction Run | 1.15 | €507.71 | |
 |
110144.00 | 208-230/460V | 3600 RPM | 1/2 hp | 60 Hz | 1.7-1.6/0.8A | C Face, Footless | Squirrel Cage Induction Run | 1.15 | €481.82 |
