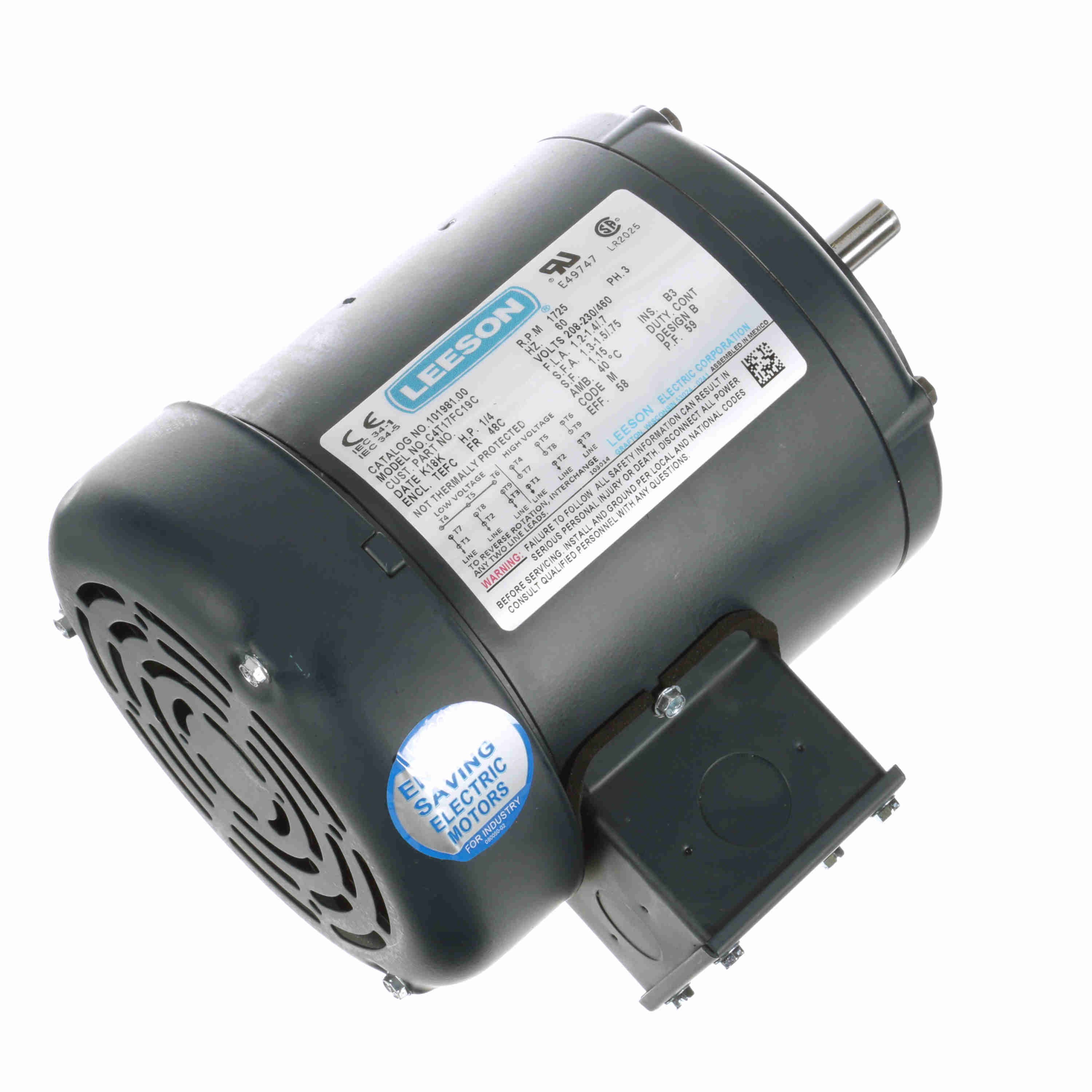

LEESON 101981.00 C4T17FC19C General Purpose Motor | AJ2PMQ C4T17FC19C

LEESON 101981.00 C4T17FC19C General Purpose Motor, 0.25 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM

Item: AJ2PMQModel: 101981.00Cross Ref: C4T17FC19C
Check Availability
In Stock
Hp
Nameplate Rpm

Get it by Friday, Dec 19

€383.09 /unit
This product can only be shipped in multiples of 75
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Ambient Temp. 40°C
Amps 1.4/0.7A
Code M
De Bearing Size 6203
De Bearing Type Ball
Design Code B
Duty Cycle Continuous
Efficiency 58%
Electrical Type Squirrel Cage, Induction Run
Enclosure Type Tefc
Frame 48C
Frame Length 4 1/2"
Frame Material Rolled Steel
Frame Type 48
Frequency 60 Hz
Full Load Amps 1.2-1.4/0.7A
Height 8 3/4"
Hp 1/4 hp
Insulation Class Class B
Ip Code IP43
Kva Code M
Kw 0.19 kW
Length 13 3/4"
Max. Rpm 1725 RPM
Motor Orientation Horizontal
Motor Shaft Rotation Clockwise, Counter Clockwise
Motor Shaft Rotation Reversible
Motor Type Squirrel Cage Induction Run
Mounting Type Rigid Base
Nameplate Rpm 1800 RPM
Nema Design B, M
No. Of Poles 4
No. Of Speeds 1
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Kw 0.19 kW
Packaging B
Phase 3
Power Factor 59
Resistance Main 20.31 ohms
Rpm 1700-1800 RPM
Service Factor 1.15
Shaft Dia. 1/2"
Shaft Extension 1.5
Shaft Type NEMA 48
Starting Method Across The Line
Thermal Protection No Protection
Type TF
Voltage 208-230V
Width 7 22/25"

Shipping Info:

Ship weight (kg) 6.75
Ship height (cm)22.23
Ship length (cm)34.93
Ship width (cm)20.02
Country of OriginMX

Product Details:

    • Eff 100%: 58
    • Bearing OPE: 6203
    • Bearing PE: 6203
    • Nameplate: A-92005-4
    • Winding: TE48413
    • GROUP: 3
    • Paint: BLUE - LEESON (ENAMEL)
    • S. F Amps: 1.3-1.5 / .75

Product Variants

ProductModelVoltageNameplate RpmHpFrequencyFull Load AmpsMounting TypeMotor TypeService FactorPrice
LEESON 101769.00 C4T17FC10B General Purpose Motor | AJ2PMG C4T17FC10B 101769.00208-230/460V1725 RPM33/100 hp60 Hz1.5-1.6/0.8AFaceThree Phase1.15€680.90
LEESON 101780.00 C4T17FC12C General Purpose Motor 50-60 Hertz | AJ2PMK C4T17FC12C 101780.00208-230/460V1800/1500 RPM1/2 hp60 Hz1.8/0.9AC Face, FootlessSquirrel Cage Induction Run1.15€604.30
LEESON 102860.00 C4T17FC40A General Purpose Motor | AJ2PNV C4T17FC40A 102860.00208-230/460V1725 RPM1/2 hp60 Hz1.9-2/1AFaceThree Phase1.15€469.95
LEESON 102863.00 C4T17NC47A General Purpose Motor | AJ2PNY C4T17NC47A 102863.00208-230/460V1800 RPM33/100 hp60 Hz1.3/0.65AC Face, FootlessSquirrel Cage Induction Run1.15€413.30
LEESON 110047.00 C6T17FC1G General Purpose Motor | AJ2PZX C6T17FC1G 110047.00208-230/460V1725 RPM3/4 hp60 Hz2.8/1.4AFaceSquirrel Cage Induction Run1.15€507.71
LEESON 110144.00 C6T34NC1E General Purpose Motor | AJ2QAR C6T34NC1E 110144.00208-230/460V3600 RPM1/2 hp60 Hz1.7-1.6/0.8AC Face, FootlessSquirrel Cage Induction Run1.15€481.82
LEESON 110163.00 C6T11FC1H General Purpose Motor | AJ2QAW C6T11FC1H 110163.00208-230/460V1140 RPM1/2 hp60 Hz3.2/1.6AFaceThree Phase1.15€1,165.52
