LEESON LM16828 AF4B15TCN61 General Purpose Motor 50-60 Hertz | AJ2VNE AF4B15TCN61

LEESON LM16828 AF4B15TCN61 General Purpose Motor, 15 HP, 3 Phase, 60/50 Hz, 230/460 and 380-415V, 1800 and 1500 RPM

Item: AJ2VNEModel: LM16828Cross Ref: AF4B15TCN61
Check Availability
In Stock
Hp
Nameplate Rpm

Get it by Thursday, Dec 18

€2,411.81 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Ambient Temp. 40°C
Amps 37.5/18.8A
Assembly/box Mounting F1, F2 Capable
Code G
Conduit Box Position F1
Curvepoint Break Down
Design Code B
Drive End Bearing Size 6309
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 92.4%
Electrical Type Squirrel Cage, Induction Run
Enclosure Type Tefc
Footnotes A, US
Frame 254TC
Frame Length 12"
Frame Material Aluminum
Frame Size 254TC
Frame Suffix Tc
Frequency 50/60 Hz
Full Load Amps 37.5/18.8A
Grease Type Polyrex EM
Hp 15 hp
Insulation Class Class F
Ip Code 43
Kva Code G
Kw 11.2 kW
Load 1.15
Lubrication Polyrex EM
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Orientation Horizontal
Motor Shaft Rotation Clockwise, Counter Clockwise
Motor Shaft Rotation Reversible
Motor Type Squirrel Cage Induction Run
Mounting Type Round
Nameplate Rpm 1800/1500 RPM
Nema Design B, G
No. Of Poles 4
No. Of Speeds 1
Opp. Drive End Bearing Size 6208
Opp. Drive End Bearing Type Ball
Output Kw 11.2 kW
Overall Length 24.02"
Packaging None
Phase 3
Power Factor 81
Resistance Main 0.649 ohms
Rotation Type Reversible
Rpm 1700-1800 RPM
Service Factor 1, 1.25
Shaft Dia. 1 5/8"
Shaft Length 4"
Shaft Type T
Starting Method Across The Line
Synchronous Rpm 1800/1500 RPM
Thermal Protection No Protection
Torque 125 lbs.-ft.
Torquepct 282
Type TFL
Voltage 230/460V

Shipping Info:

Ship weight (kg) 94.5
Ship height (cm)45.72
Ship length (cm)67.31
Ship width (cm)50.8
Country of OriginUS

Product Details:

    • Supersedes Leeson - LM16302 / AF4P15TCN61
    • Eff 75%: 92.4
    • Bearing OPE: 6208
    • CC Number: CC004A
    • Bearing PE: 6309
    • Nameplate: 92117-AZ-L-BCDLM-A-A-X
    • Winding: K2564165
    • GROUP: 1
    • Paint: GRAY - LINCOLN
    • S. F Amps: 46 / 23
    • Eff 100%: 92.4 / 91

Product Variants

ProductModelVoltageNameplate RpmHpFrequencyFull Load AmpsMounting TypeMotor TypeService FactorPrice

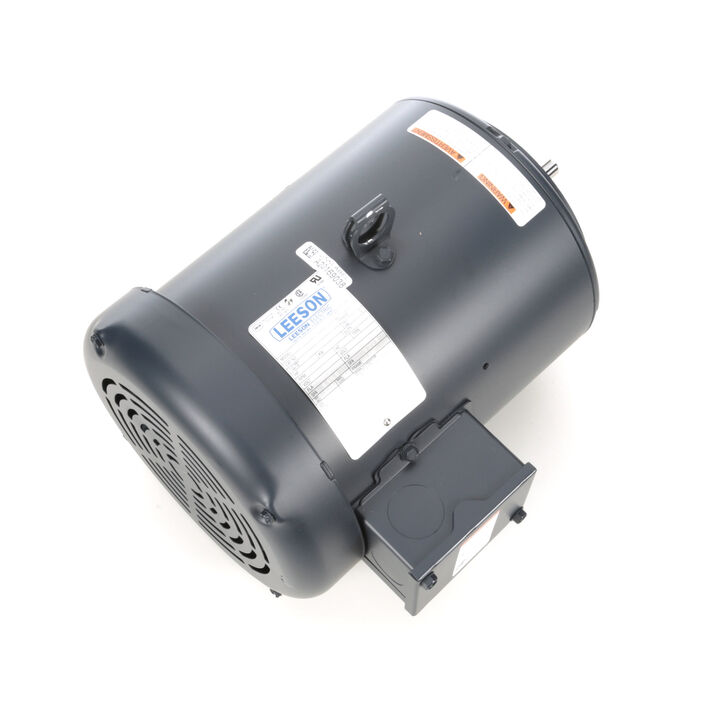

LEESON 101769.00 C4T17FC10B General Purpose Motor | AJ2PMG C4T17FC10B 101769.00208-230/460V1725 RPM33/100 hp60 Hz1.5-1.6/0.8AFaceThree Phase1.15€680.90
LEESON 101780.00 C4T17FC12C General Purpose Motor 50-60 Hertz | AJ2PMK C4T17FC12C 101780.00208-230/460V1800/1500 RPM1/2 hp60 Hz1.8/0.9AC Face, FootlessSquirrel Cage Induction Run1.15€604.30
LEESON 101981.00 C4T17FC19C General Purpose Motor | AJ2PMQ C4T17FC19C 101981.00208-230V1800 RPM1/4 hp60 Hz1.2-1.4/0.7ARigid BaseSquirrel Cage Induction Run1.15€383.09
LEESON 102860.00 C4T17FC40A General Purpose Motor | AJ2PNV C4T17FC40A 102860.00208-230/460V1725 RPM1/2 hp60 Hz1.9-2/1AFaceThree Phase1.15€469.95
LEESON 102863.00 C4T17NC47A General Purpose Motor | AJ2PNY C4T17NC47A 102863.00208-230/460V1800 RPM33/100 hp60 Hz1.3/0.65AC Face, FootlessSquirrel Cage Induction Run1.15€413.30
LEESON 110047.00 C6T17FC1G General Purpose Motor | AJ2PZX C6T17FC1G 110047.00208-230/460V1725 RPM3/4 hp60 Hz2.8/1.4AFaceSquirrel Cage Induction Run1.15€507.71
LEESON 110144.00 C6T34NC1E General Purpose Motor | AJ2QAR C6T34NC1E 110144.00208-230/460V3600 RPM1/2 hp60 Hz1.7-1.6/0.8AC Face, FootlessSquirrel Cage Induction Run1.15€481.82
