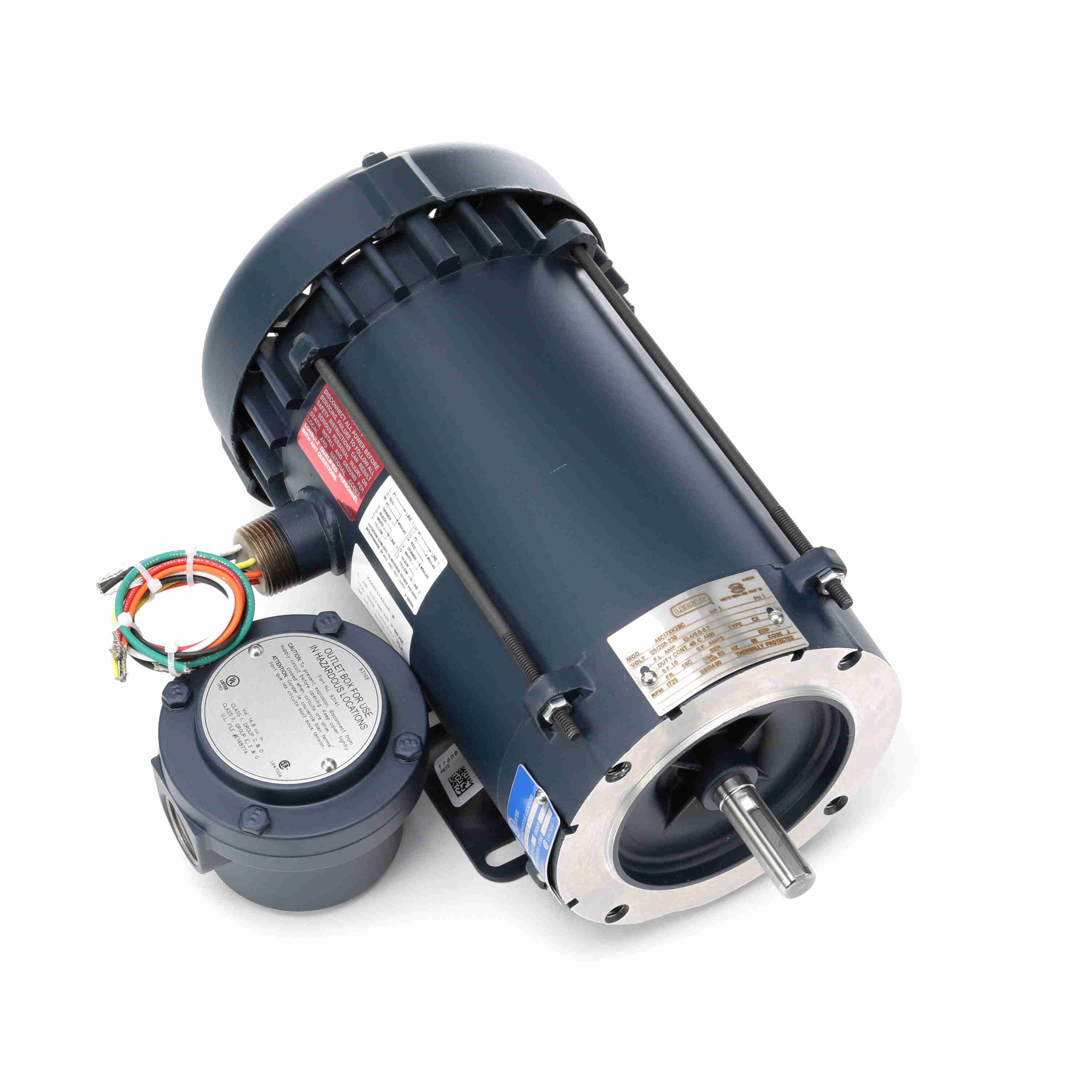

LEESON 116614.00 6C17XK29C Explosion Proof Motor, 1 HP, 1 Phase, 60 Hz, 115/208-230V, 1800 RPM
Get it by Tuesday, Dec 23
10.00% off
€1,889.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Explosion Proof Motor |
| Ambient Temp. | 40°C |
| Amps | 13.4/6.7-6.8A |
| Assembly | A-S90887 |
| Code | J |
| Design | N |
| Design Code | No |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 72% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | EPFC |
| Frame | 56C |
| Frame Length | 7.31" |
| Frame Material | Rolled Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 13.4/6.8-6.7A |
| Grease Type | Polyrex EM |
| Hazardous Location | Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C |
| Hazardous Location Class | 1C, D/2F, G |
| Height | 9 3/25" |
| Hp | 1 hp |
| Insulation Class | Class B |
| Ip Code | IP54 |
| Kva Code | J |
| Kw | 0.75 kW |
| Length | 16 3/25" |
| Lubrication | Polyrex EM |
| Max. Rpm | 1725 RPM |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Rating | 0.75 kW |
| Packaging | B |
| Phase | 1 |
| Power | 0.75 kW |
| Power Factor | 69.5 |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Temp. Code | T3C |
| Thermal Protection | Automatic |
| Type | CX |
| Voltage | 115/208-230V |
| Width | 10.25" |
Shipping Info:
| Ship weight (kg) | 18 |
| Ship height (cm) | 23.16 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| Country of Origin | MX |
Product Details:
- Eff 100%: 72
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: A-92340
- Winding: ZC407
- GROUP: 3
- Paint: BLUE - LEESON (ENAMEL)
Product Variants
| Product | Model | Hp | Nameplate Rpm | Hazardous Location Class | Output Rating | Temp. Code | No. Of Poles | Motor Shaft Rotation | Full Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
116605.00 | 33/100 hp | 3450 RPM | 1 C, D / 2 F, G | 0.246 kW | T3B | 2 | Counter Clockwise | 7/3.2-3.5A | €1,479.18 | |
 |
116606.00 | 33/100 hp | 1800 RPM | 1C, D/2F, G | 0.246 kW | T3C | 4 | Selective Counter Clockwise | 6.6/3.1-3.3A | €1,393.97 | |
 |
116607.00 | 33/100 hp | 1200 RPM | 1C, D/2F, G | 0.246 kW | T3C | 6 | Selective Counter Clockwise | 7.8/3.6-3.9A | €1,052.13 | |
 |
116608.00 | 1/2 hp | 3600 RPM | 1C, D/2F, G | 0.37 kW | T3C | 2 | Selective Counter Clockwise | 8.4/4-4.2A | €885.95 | |
 |
116609.00 | 1/2 hp | 1800 RPM | 1C, D/2F, G | 0.37 kW | T3C | 4 | Selective Counter Clockwise | 8.8/4.2-4.4A | €1,682.37 | |
 |
116610.00 | 1/2 hp | 1200 RPM | 1C, D/2F, G | 0.37 kW | T3C | 6 | Selective Counter Clockwise | 9.6/4.7-4.8A | €1,738.24 | |
 |
116611.00 | 3/4 hp | 3600 RPM | 1C, D/2F, G | 0.56 kW | T3C | 2 | Selective Counter Clockwise | 10.6/5.3A | €947.99 |
