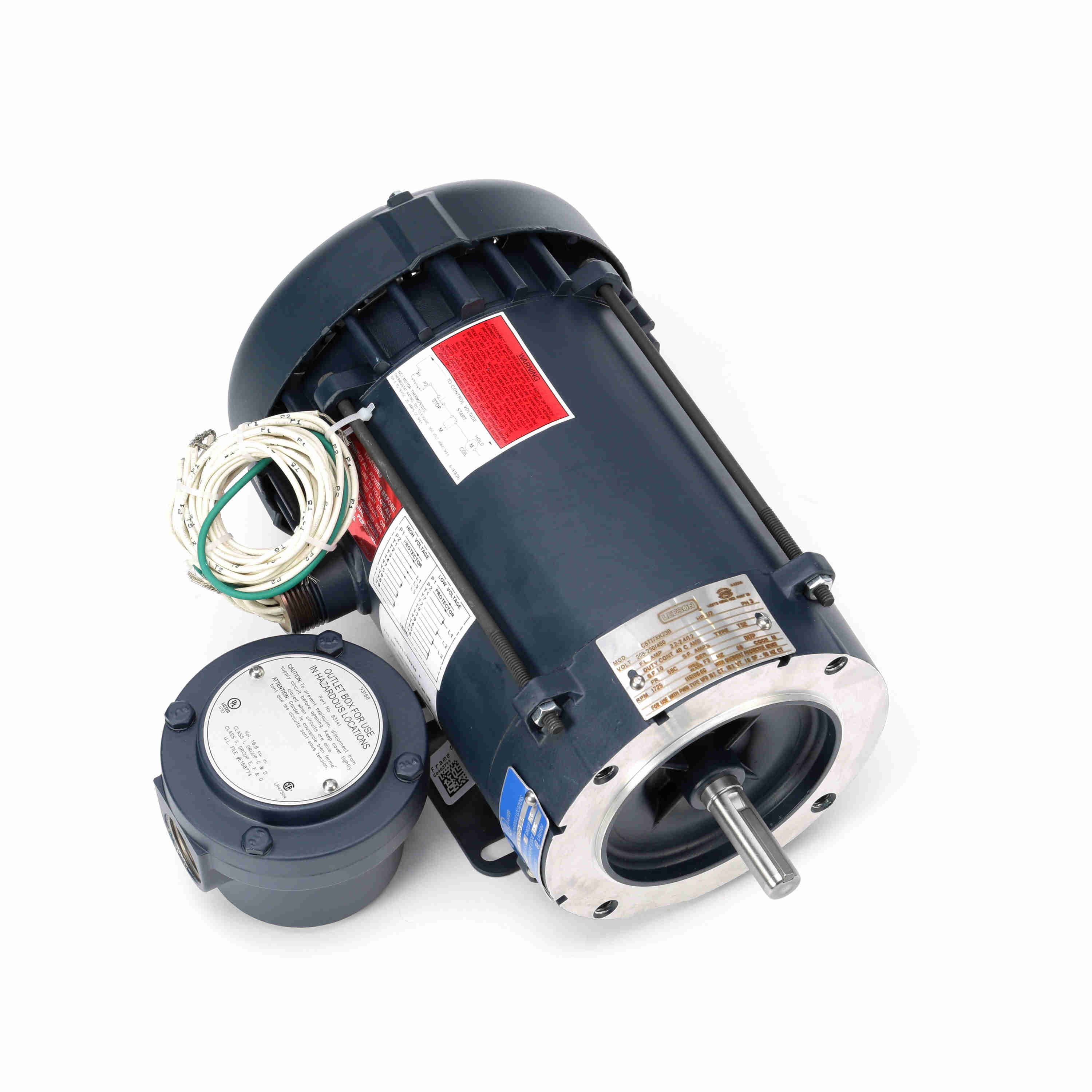

LEESON 116190.00 6T17XK23B Explosion Proof Motor, 0.50 HP, 3 Phase, 60 Hz, 208-230/460V, 1800 RPM
Get it by Monday, May 18
Payment
Delivery
Product Specifications:
| Item | Explosion Proof Motor |
| Ambient Temp. | 40°C |
| Amps | 2.3-2.4/1.2A |
| Code | M |
| Design | B |
| Design Code | B |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 68% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | EPFC |
| Frame | 56C |
| Frame Length | 6.31" |
| Frame Material | Rolled Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 2.3-2.4/1.2A |
| Grease Type | Polyrex EM |
| Hazardous Location | Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C |
| Hazardous Location Class | 1C, D/2F, G |
| Height | 8 3/25" |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Ip Code | IP54 |
| Kva Code | M |
| Kw | 0.37 kW |
| Length | 16.38" |
| Lubrication | Polyrex EM |
| Max. Rpm | 1725 RPM |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Reversible |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| No. Of Phase | 3 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Rating | 0.37 kW |
| Packaging | B |
| Power | 0.37 kW |
| Power Factor | 61.1 |
| Product Datasheet | leeson-116190-00.pdf |
| Resistance Main | 40 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Line Or Inverter |
| Temp. Code | T3C |
| Thermal Protection | Thermostat |
| Type | TX |
| Voltage | 208-230/460V |
| Width | 10 1/2" |
Shipping Info:
| Ship weight (kg) | 12.6 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| Country of Origin | MX |
Product Details:
Leeson 116190.00 C6T17XK23B general purpose motor is designed for various tasks, including machinery operations, such as powering conveyor systems, pumps, fans and compressors, delivers efficient performance in diverse operating conditions. Its general-purpose designation signifies adaptability to different requirements. It is suitable for manufacturing plants, agricultural settings, HVAC systems and commercial facilities.
Features:
- This squirrel cage inverter-rated electric motor ensures compatibility with modern control systems.
- It offers a rigid base mounting for secure installation in various settings.
- This Leeson 116190.00 C6T17XK23B general purpose motor features a 4-pole design for smooth operation and reduced vibration.
- It includes a rolled steel frame material, providing durability and strength.
- This Leeson general purpose motor has a reversible shaft rotation for flexibility in installation and operation.
- It further features an explosion-proof fan-cooled enclosure for enhancing safety in hazardous environments.
Frequently Asked Questions:
Q. What is the starting method for this motor?
A. The starting method can be either a line or inverter, providing flexibility in application.
Q. What is the insulation Class of this Leeson 116190.00 C6T17XK23B general purpose motor?
A. This motor has a Class F insulation, ensuring resistance to heat and electrical stress.
Q. What is the type of bearing used in this motor?
A. It utilises ball bearings for their durability and smooth operation.
Q. What type of shaft does this explosion proof electric motor have?
A. This motor features a T-type shaft, providing compatibility with various coupling methods.
Q. What is the starting method for this explosion-proof electric motor?
A. The starting method can be either a line or inverter, providing flexibility in application.
Q. What is the insulation Class of Leeson 116190.00 (C6T17XK23B) general-purpose motor?
A. The motor has a Class F insulation, ensuring resistance to heat and electrical stress.
Q. What type of bearing is used in this motor?
A. It uses ball bearings for their durability and smooth operation.
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Frame | Nameplate Rpm | Phase | Motor Application | Motor Mounting Type | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056H17E5301 | 230/460V AC | 1/4 hp | 56C | 1725 RPM | 3 | Crane | Rigid Base | Thermostat | €919.47 | |
 |
056H17E5302 | 230/460V AC | 1/3 hp | 56C | 1725 RPM | 3 | Crane | Rigid Base | Thermostat | €1,078.24 | |
 |
056H17E5303 | 230/460V AC | 1/2 hp | 56C | 1725 RPM | 3 | Crane | Rigid Base | Thermostat | €1,371.25 | |
 |
056H17E5304 | 230/460V AC | 3/4 hp | 56C | 1725 RPM | 3 | Crane | Rigid Base | Thermostat | €1,287.06 | |
 |
056H17E5305 | 230/460V AC | 1 hp | 56C | 1725 RPM | 3 | Crane | Rigid Base | Thermostat | €1,409.55 | |
 |
118015.00 | 90V | 33/100 hp | 56C | 1750 RPM | - | Hazardous Location | Face, Base | Auto | €5,029.70 | |
 |
118016.00 | 90V | 1/2 hp | 56C | 1750 RPM | - | Hazardous Location | Face, Base | Auto | €4,540.55 |
