LEESON 119437.00 A6T17XK23A General Purpose Motor 50-60 Hertz | AJ2RBX A6T17XK23A

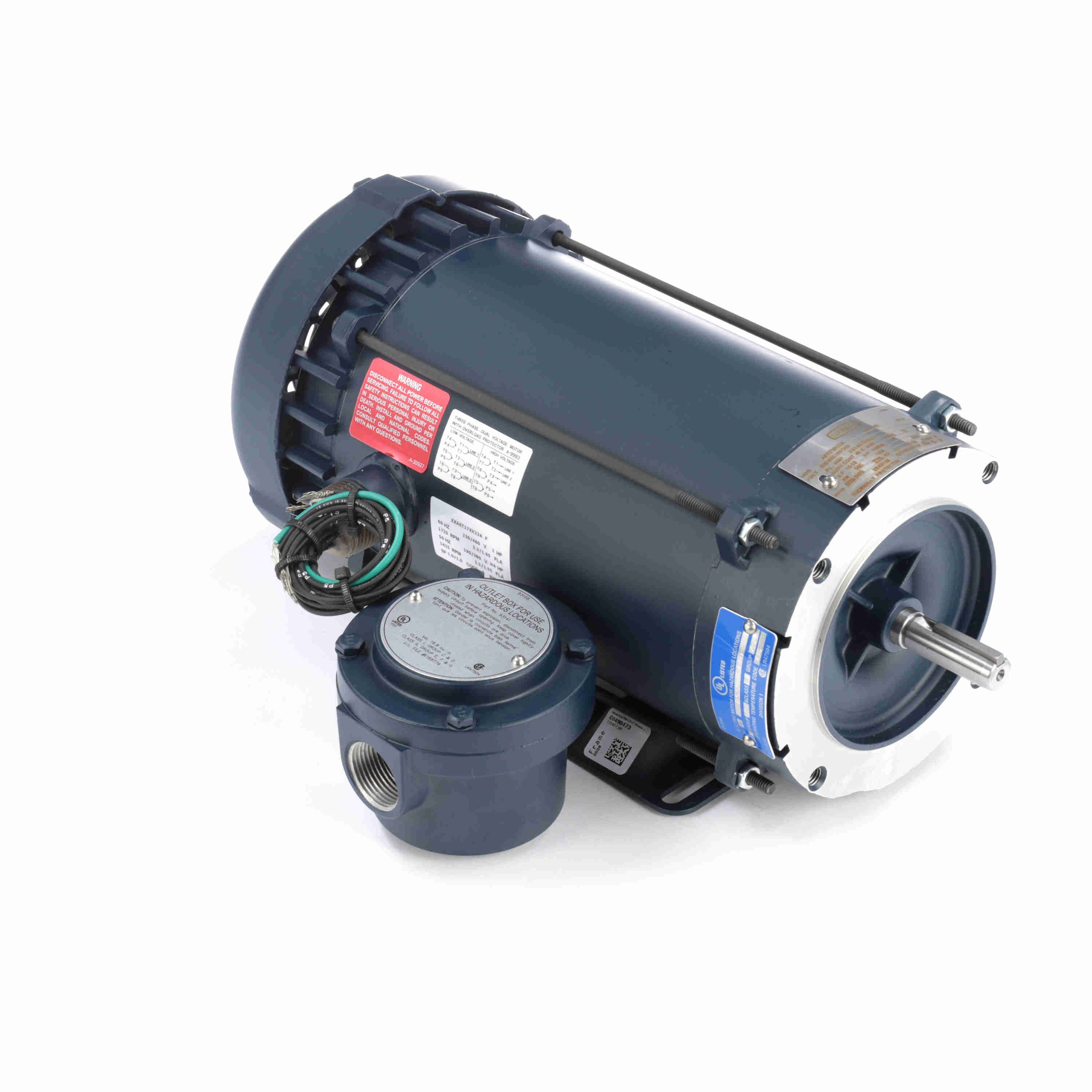

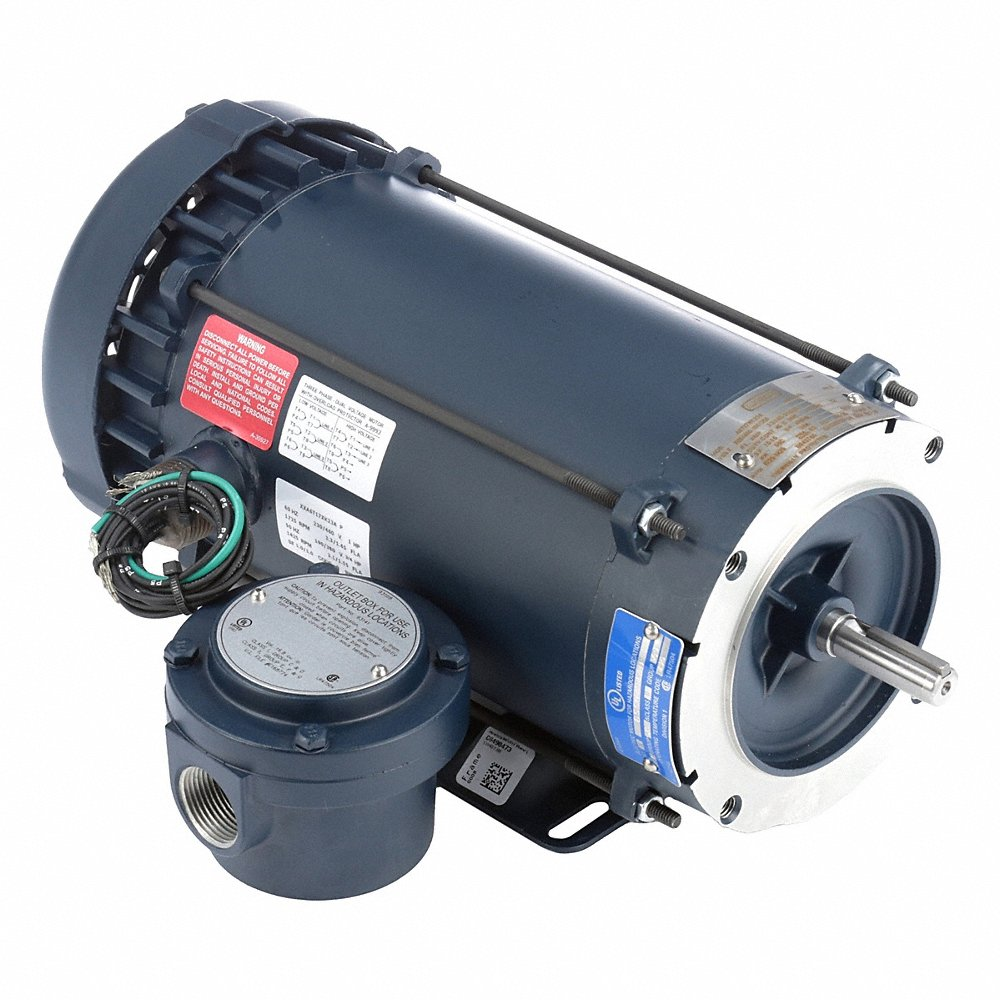

LEESON 119437.00 6T17XK23A Explosion Proof Motor, 1/0.75 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM

Item: AJ2RBXModel: 119437.00Cross Ref: 820GZ7 / 6T17XK23A
Check Availability
In Stock
HP
Frame

Get it by Tuesday, May 19

€2,040.14
5.00% off
€1,938.13 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Explosion Proof Motor
Ambient Temp. 40°C
Amps 3.3/1.7A
Code P
Design B
Drive End Bearing Size 6203
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 85.5%
Electrical Type Squirrel Cage, Induction Run
Enclosure Type EPFC
Frame 56C
Frame Length 8.81"
Frame Material Rolled Steel
Frame Type 56C
Frequency 60 Hz
Full Load Amps 3.3/1.65A
Grease Type Polyrex EM
Hazardous Location Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C
Hazardous Location Class 1C, D/2F, G
Height 9 3/4"
Hp 1 hp
Insulation Class Class B
Ip Code IP54
Kva Code P
Kw 0.75 kW
Length 19"
Lubrication Polyrex EM
Max. Rpm 1725 RPM
Motor Mounting Type Rigid Base
Motor Orientation Horizontal
Motor Shaft Rotation Reversible
Motor Type Squirrel Cage Induction Run
Mounting Type Rigid Base
No. Of Poles 4
No. Of Speeds 1
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Rating 0.75 kW
Packaging F
Phase 3
Power 0.75 kW
Power Factor 68
Product Datasheet leeson-119437-00.pdf
Resistance Main 11.8 ohms
Rpm 1700-1800 RPM
Service Factor 1
Shaft Dia. 5/8"
Shaft Length 1 22/25"
Shaft Type NEMA 56
Starting Method Across The Line
Temp. Code T3C
Thermal Protection Automatic
Type TX
Voltage 230/460V
Width 10 22/25"

Shipping Info:

Ship weight (kg) 22.05
Ship height (cm)24.77
Ship length (cm)48.26
Ship width (cm)27.64
Country of OriginMX

Product Details:

    • Supersedes Leeson - 114632.00 / A6T17XK12E
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6203
    • Nameplate: 93003
    • Winding: ZT4257
    • GROUP: 3
    • Paint: BLUE (POWDER)
    • Eff 100%: 85.5 / 84

Documentation:

Datasheet

Product Variants

ProductModelVoltageHpFrameNameplate RpmPhaseMotor ApplicationMotor Mounting TypeMotor Thermal ProtectionPrice
MARATHON MOTORS 056H17E5301 Vector Motor 0.75 Lb-ft 1/4 Hp 230/460 V | AA6ZUB 15G104 / Y600 056H17E5301230/460V AC1/4 hp56C1725 RPM3CraneRigid BaseThermostat€919.47
MARATHON MOTORS 056H17E5302 Vector Motor 1 Lb-ft 1/3 Hp 230/460 V | AA6ZUC 15G105 / Y601 056H17E5302230/460V AC1/3 hp56C1725 RPM3CraneRigid BaseThermostat€1,078.24
MARATHON MOTORS 056H17E5303 Vector Motor 1.52 Lb-ft 1/2 Hp 230/460 V | AA6ZUD 15G106 / Y602 056H17E5303230/460V AC1/2 hp56C1725 RPM3CraneRigid BaseThermostat€1,371.25
MARATHON MOTORS 056H17E5304 Vector Motor 2.25 Lb-ft 3/4 Hp 230/460 V | AA6ZUE 15G107 / Y603 056H17E5304230/460V AC3/4 hp56C1725 RPM3CraneRigid BaseThermostat€1,287.06
MARATHON MOTORS 056H17E5305 Vector Motor 3 Lb-ft 1 Hp 230/460 V | AA6ZUF 15G108 / Y604 056H17E5305230/460V AC1 hp56C1725 RPM3CraneRigid BaseThermostat€1,409.55
LEESON 118015.00 Hazardous Location Dc Motor 1/3 Hp 1750 Rpm 90vdc | AC7MAB 38N845 / C6D17EK1 118015.0090V33/100 hp56C1750 RPM-Hazardous LocationFace, BaseAuto€5,029.70
LEESON 118016.00 Hazardous Location Dc Motor 1/2 Hp 1750 Rpm 90vdc | AC7MAC 38N846 / C6D17EK2 118016.0090V1/2 hp56C1750 RPM-Hazardous LocationFace, BaseAuto€4,540.55
