How does a bonded sealing washer work?

The seal of a bonded sealing washer seals fluids outside the surface & around the fastener. The seal also effectively tightens around the fastener to reduce vibrational noise. The seal backing compresses the bonded seal for acting like a permanent cushion and protecting it from turning fastener heads.

How to install a sealing washer?

Place the washer under the screw / bolt head such that it touches the surface. Make sure that the washer presses against the fastener & other adjacent surfaces and forms a tight connection. Use a wrench or ratchet to tighten the nut or the threaded fastener. The compression caused by tightening leads to sealing.

What is a cushioning washer?

Cushioning washers are ideal for protecting joints & fasteners by dampening vibrations.

Home
Fasteners
Washers
Sealing and Cushioning Washers

Sealing And Cushioning Washers

Filter

Sealing washers are ideal for sealing out fluids, chemicals, moisture, oil, dust & other contaminants from fastener assemblies & surfaces. They are used with threaded...Read more

ADAPT-ALL -

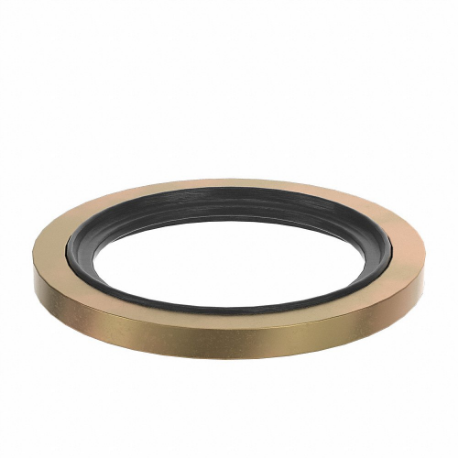

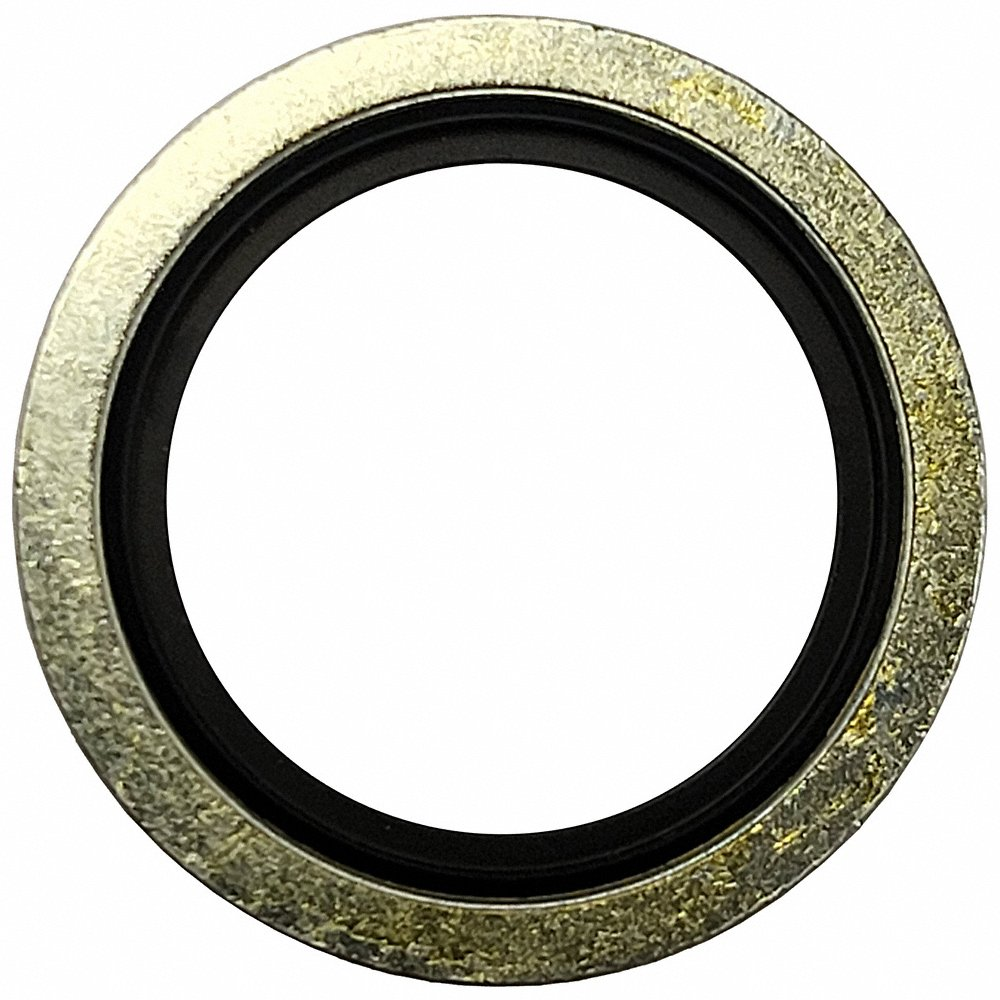

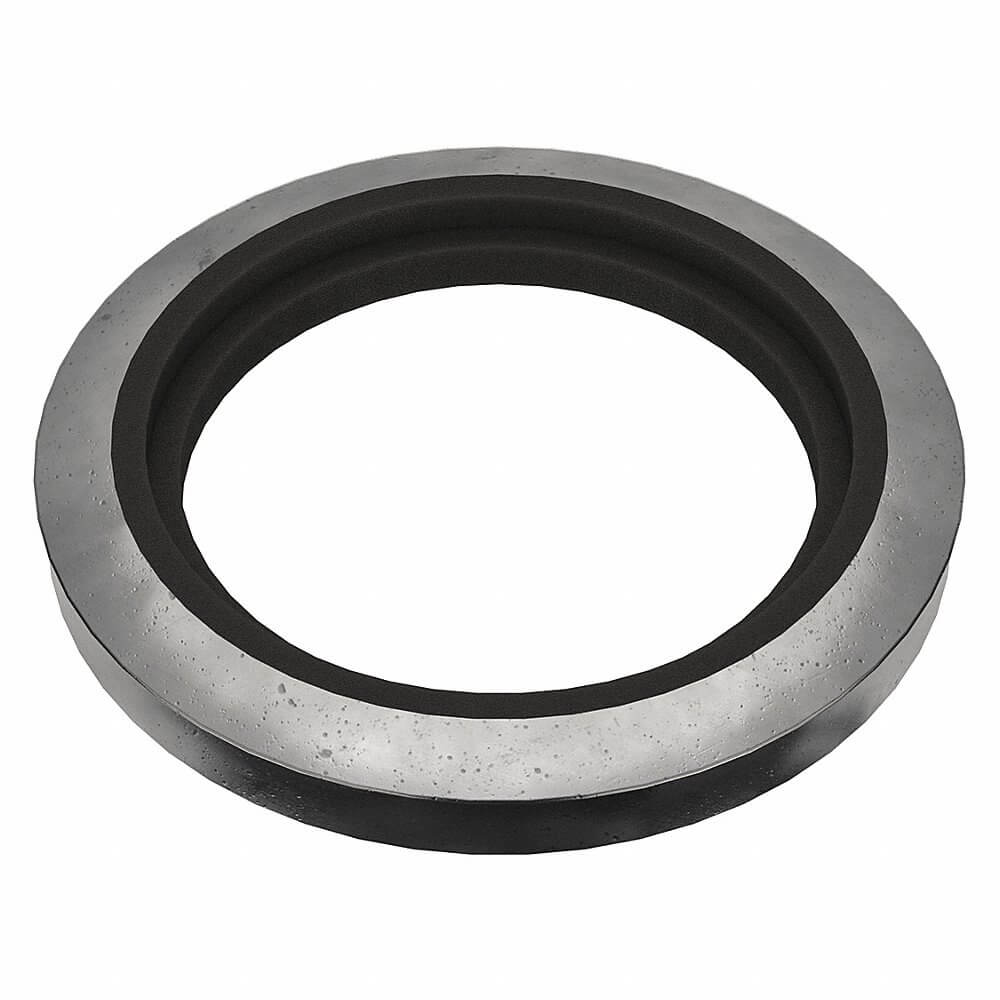

9500 Series Steel Sealing/Cushioning Washers, Bonded Seal For Metric Thread

Style	Model	Inside Dia.	Outside Dia.	Max. Thickness	Min. Thickness	Grade	Finish	Thickness Tolerance	Seal Material	Price
A	9500-45MM	-	-	-	-	-	-	-	-	€7.60
A	9500-27MM	-	-	-	-	-	-	-	-	€3.86
A	9500-33MM	-	-	-	-	-	-	-	-	€3.32
B	9500-06MM	0.26"	0.43"	1.3 mm	1.3 mm	Non Graded	Cadmium Plated	-0.2 mm to +0.2 mm	Buna N	€0.82
B	9500-08MM	0.34"	0.55"	1.3 mm	1 mm	Non Graded	Cadmium Plated	-0.2 mm to +0.2 mm	Buna N	€0.80
B	9500-10MM	0.41"	0.63"	2.28 mm	2.28 mm	Non Graded	Cadmium Plated	-0.2 mm to +0.2 mm	Buna N	€0.50
B	9500-14MM	0.55"	18/25"	2.4 mm	1.5 mm	Non Graded	Cadmium Plated	-0.2 mm to +0.2 mm	Buna N	€0.90
B	9500-16MM	0.66"	0.95"	2.4 mm	2.4 mm	Non Graded	Cadmium Plated	-0.2 mm to +0.2 mm	Buna N	€0.87
B	9500-18MM	0.74"	1.02"	2.4 mm	1.5 mm	Non Graded	Cadmium Plated	-0.2 mm to +0.2 mm	Buna N	€0.90
B	9500-24MM	0.97"	1 1/4"	2.4 mm	2.4 mm	Non Graded	Cadmium Plated	-0.2 mm to +0.2 mm	Buna N	€2.60
B	9500-36MM	1 11/25"	1.81"	2.4 mm	2.4 mm	Non Graded	Cadmium Plated	-0.2 mm to +0.2 mm	Buna N	€4.77
B	9500-42MM	1 17/25"	2.09"	2.4 mm	3.4 mm	Non Graded	Cadmium Plated	-0.2 mm to +0.2 mm	Buna N	€6.16

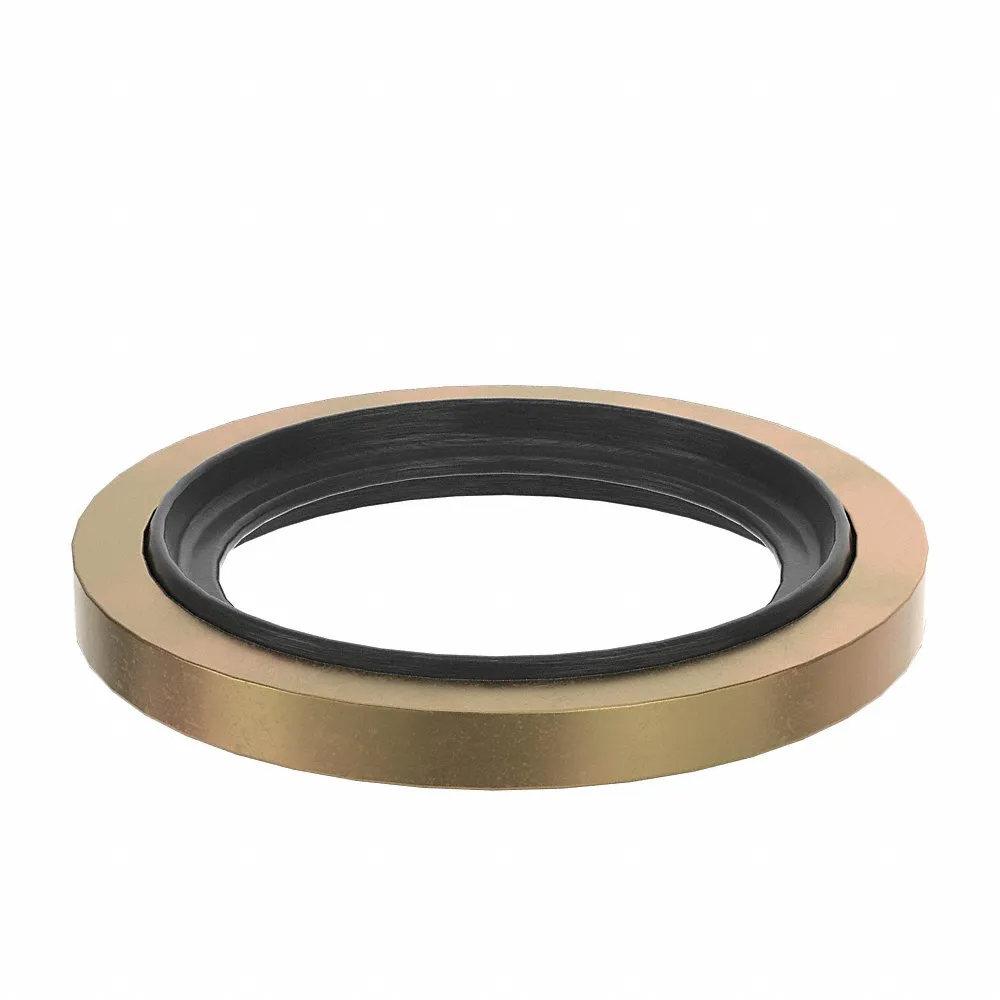

C	9500-26MM	1.06"	1.38"	2.74 mm	2.5 mm	Non Graded	Cadmium Plated	-0.2 mm to +0.2 mm	Buna N	€0.84
B	9500-30MM	1.22"	1.42"	2.74 mm	2 mm	Non Graded	Cadmium Plated	-0.2 mm to +0.2 mm	Buna N	€1.85
B	9500-12MM	1/2"	0.71"	2.4 mm	1.5 mm	Non Graded	Cadmium Plated	-0.2 mm to +0.2 mm	Buna N	€0.74
B	9500-04MM	1/5"	0.3"	1.3 mm	1.3 mm	Non Graded	Cadmium Plated	-0.2 mm to +0.2 mm	Buna N	€0.83
C	9500-50MM	2"	2 1/2"	3.4 mm	3.4 mm	Non Graded	Cadmium Plated	-0.2 mm to +0.2 mm	Buna N	€13.38
B	9500-52MM	2.07"	2.7"	3.4 mm	3.4 mm	Non Graded	Cadmium Plated	-0.2 mm to +0.2 mm	Buna N	€12.88
B	9500-20MM	13/16"	1.1"	2.4 mm	2.4 mm	Non Graded	Cadmium Plated	-0.2 mm to +0.2 mm	Buna N	€0.92
B	9500-22MM	57/64"	1.18"	2.4 mm	2.4 mm	Non Graded	Cadmium Plated	-0.2 mm to +0.2 mm	Buna N	€1.53

ADAPT-ALL -

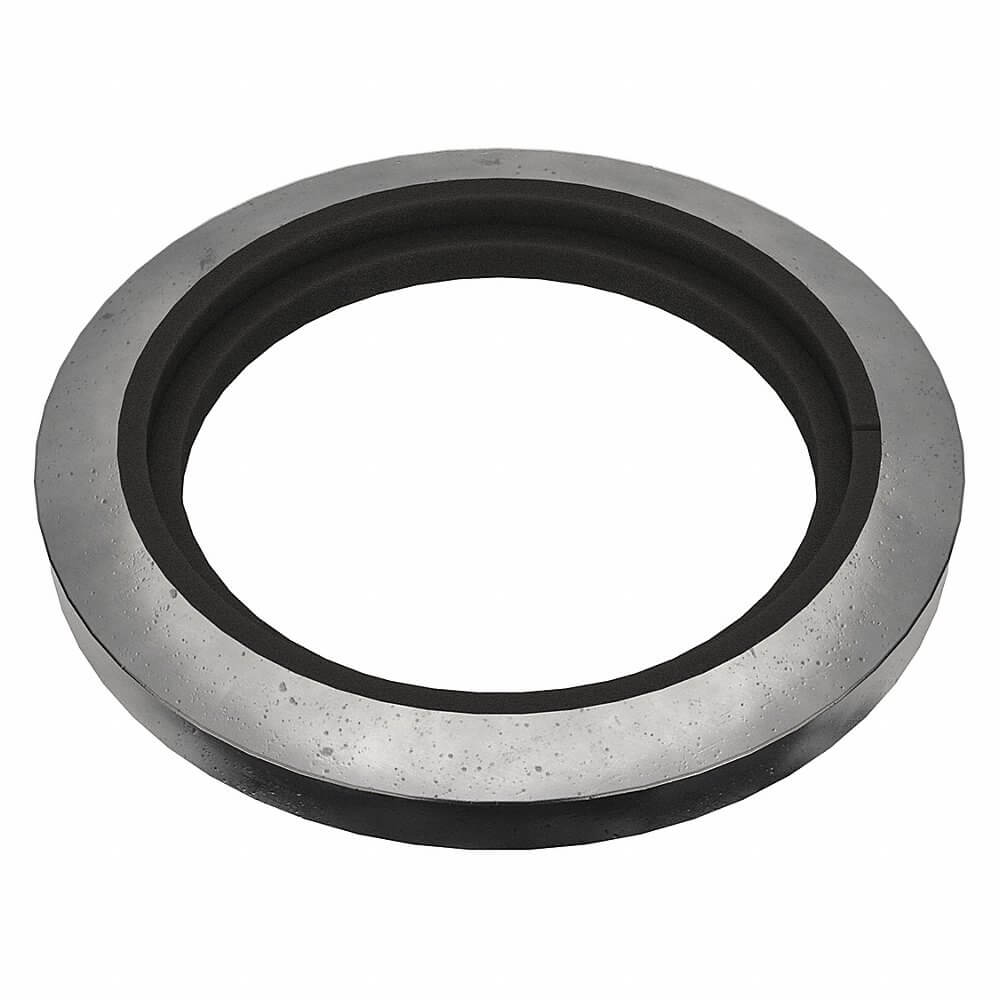

9500 Series Steel Sealing/Cushioning Washers, Bonded Seal For BSPP Thread

Style	Model	Inside Dia.	Outside Dia.	Max. Thickness	Thickness Tolerance	Max. Temp.	Min. Thickness	Grade	Finish	Price
A	9500-40	-	-	-	-	-	-	-	-	€4.00
A	9500-32	-	-	-	-	-	-	-	-	€5.24
A	9500-48	-	-	-	-	-	-	-	-	€50.49
B	9500-04	0.54"	0.81"	-	-0.15" to +0.15"	-	-	-	-	€0.71
C	9500-08	0.85"	1 1/8"	0.09"	-0.15" to +0.15"	250°F	0.098"	-	Cadmium Plated	€0.81
D	9500-10	0.93"	1 1/4"	0.108"	-0.15" to +0.15"	250°F	0.098"	-	Cadmium Plated	€1.09
E	9500-12	1.07"	1.38"	0.108"	-0.15" to +0.15"	250°F	0.098"	-	Cadmium Plated	€1.06
E	9500-16	1.33"	1.69"	0.108"	-0.008" to +0.008"	220°F	-	Non Graded	Cadmium Plated	€1.34
E	9500-20	1.69"	2.067"	0.108"	-0.008" to +0.008"	220°F	0.098"	Non Graded	Cadmium Plated	€2.68
E	9500-24	1.91"	2.303"	0.108"	-0.008" to +0.008"	220°F	0.098"	Non Graded	Cadmium Plated	€3.61
E	9500-02	2/5"	5/8"	0.092"	-0.2 mm to +0.2 mm	220°F	-	Non Graded	Cadmium Plated	€0.54
F	9500-06	17/25"	0.94"	0.09"	-0.15" to +0.15"	250°F	2/25"	-	Cadmium Plated	€0.61

ADAPT-ALL -

3500 Series Sealing Washers, BSPP

Style	Model	MPN	Price
A	3500-02	3500-02	€0.35
A	3500-04	3500-04	€0.47
A	3500-06	3500-06	€0.59
A	3500-08	3500-08	€0.77
A	3500-10	3500-10	€1.10
A	3500-12	3500-12	€1.06
A	3500-16	3500-16	€1.14

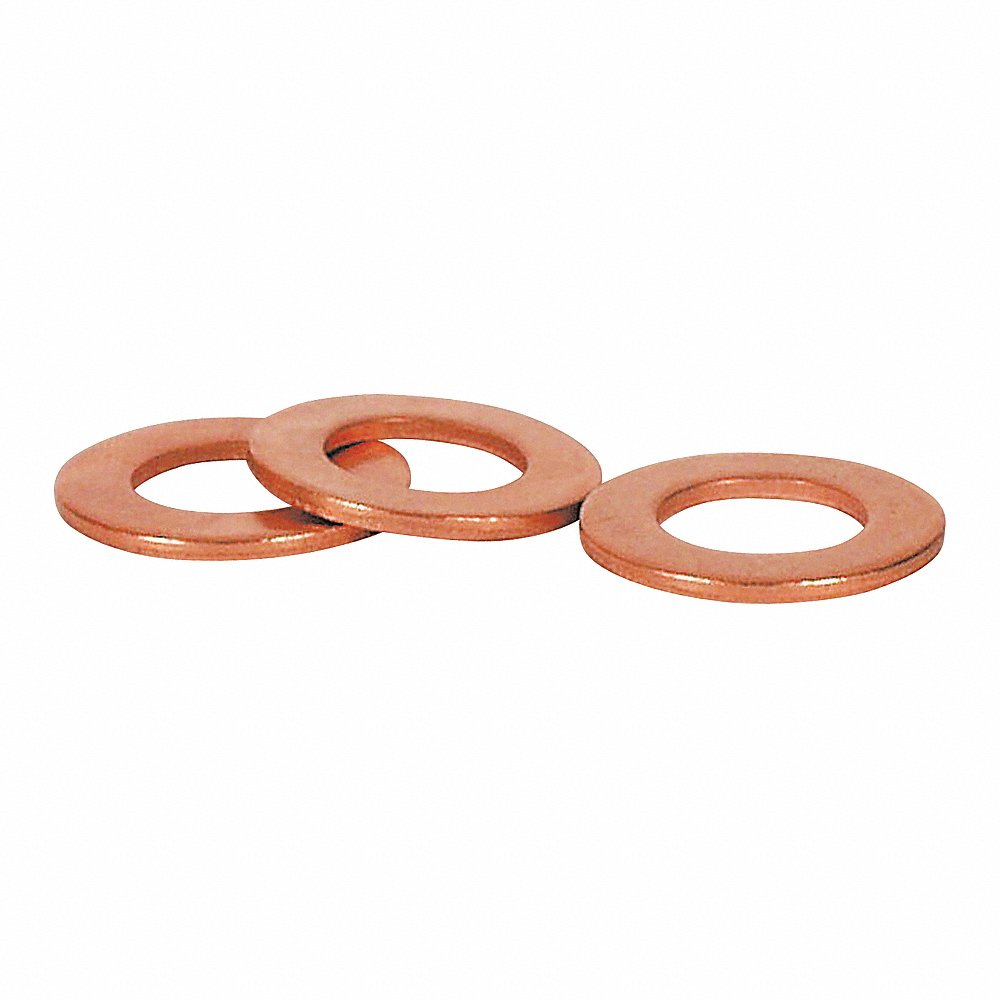

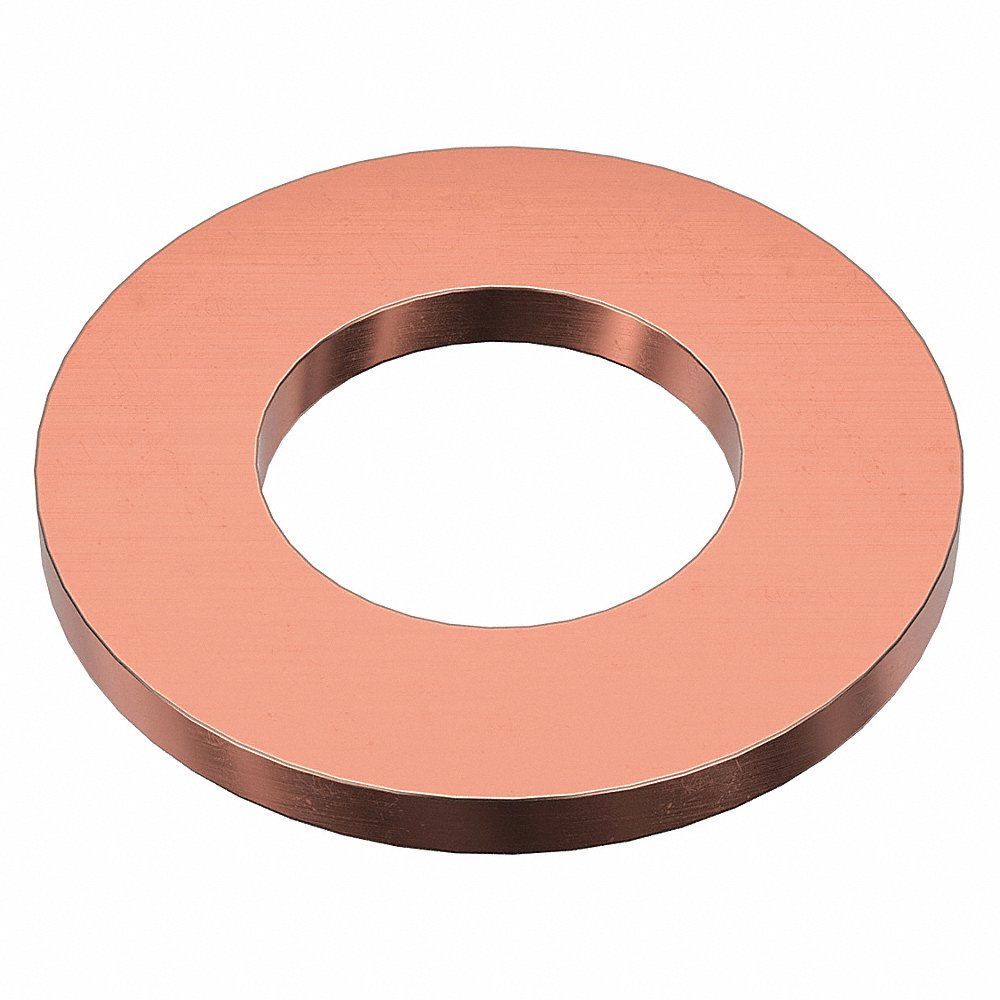

Copper Sealing and Cushioning Washers

Style	Model	Inside Dia.	Outside Dia.	Max. Thickness	Min. Thickness	Finish	Thickness Tolerance	Seal Material	Price	Pkg. Qty.
A	M50301.210.0028	-	28 mm	-	-	-	-0.2 mm to +0.2 mm	-	€49.40	25
B	5MXG3	6 mm	12 mm	1 mm	1 mm	Plain	-	-	€38.12	25
C	5ZLT9	6 mm	10 mm	1 mm	1 mm	Plain	-	-	€3.46	25
A	M50301.060.0010	6 mm	10 mm	1.5 mm	1.5 mm	Plain	-0.2 mm to +0.2 mm	Copper	€43.86	100
C	5ZLU0	8 mm	12 mm	1 mm	1 mm	Plain	-	-	€5.28	25
A	M50301.080.0014	8 mm	14 mm	1.5 mm	1.5 mm	Plain	-0.2 mm to +0.2 mm	Copper	€63.86	100
A	M50301.090.0014	9 mm	14 mm	1.5 mm	1.5 mm	Plain	-0.2 mm to +0.2 mm	Copper	€70.35	100
A	M50301.100.0020	10 mm	20 mm	1.5 mm	1.5 mm	Plain	-0.2 mm to +0.2 mm	Copper	€119.38	100
A	M50302.100.0019	10 mm	19 mm	-	-	-	-0.2 mm to +0.2 mm	-	€200.56	100
C	5ZLU1	10 mm	14 mm	1 mm	1 mm	Plain	-	-	€6.23	25
C	5ZLU2	10 mm	16 mm	1 mm	1 mm	Plain	-	-	€7.85	25
A	M50301.100.0016	10 mm	16 mm	1.5 mm	1.5 mm	Plain	-0.2 mm to +0.2 mm	Copper	€66.32	100
A	M50301.100.0014	10 mm	14 mm	1.5 mm	1.5 mm	Plain	-0.2 mm to +0.2 mm	Copper	€44.41	100
A	M50301.105.0017	10.5 mm	17 mm	1.5 mm	1.5 mm	Plain	-0.2 mm to +0.2 mm	Copper	€131.47	100
A	M50301.110.0017	11 mm	17 mm	1.5 mm	1.5 mm	Plain	-0.2 mm to +0.2 mm	Copper	€70.70	100
A	M50301.120.0020	12 mm	20 mm	1.5 mm	1.5 mm	Plain	-0.2 mm to +0.2 mm	Copper	€49.80	50
A	M50301.120.0016	12 mm	16 mm	1.5 mm	1.5 mm	Plain	-0.2 mm to +0.2 mm	Copper	€34.79	50
A	M50301.120.0018	12 mm	18 mm	1.5 mm	1.5 mm	Plain	-0.2 mm to +0.2 mm	Copper	€40.06	50
C	5ZLU4	12 mm	18 mm	1.5 mm	1.5 mm	Plain	-	-	€13.60	25
C	5ZLU3	12 mm	16 mm	1.5 mm	1.5 mm	Plain	-	-	€8.32	25
A	M50301.120.0017	12 mm	17 mm	1.5 mm	1.5 mm	Plain	-0.2 mm to +0.2 mm	Copper	€34.39	50
A	M50301.125.0020	12.5 mm	20 mm	1.5 mm	1.5 mm	Plain	-0.2 mm to +0.2 mm	Copper	€55.33	50
A	M50301.130.0018	13 mm	18 mm	1.5 mm	1.5 mm	Plain	-0.2 mm to +0.2 mm	Copper	€45.47	50
A	M50302.130.0018	13 mm	18 mm	2 mm	-	Plain	-0.2 mm to +0.2 mm	Copper	€48.62	50
A	M50301.140.0022	14 mm	22 mm	1.5 mm	1.5 mm	Plain	-	Copper	€71.49	50

J.W. WINCO -

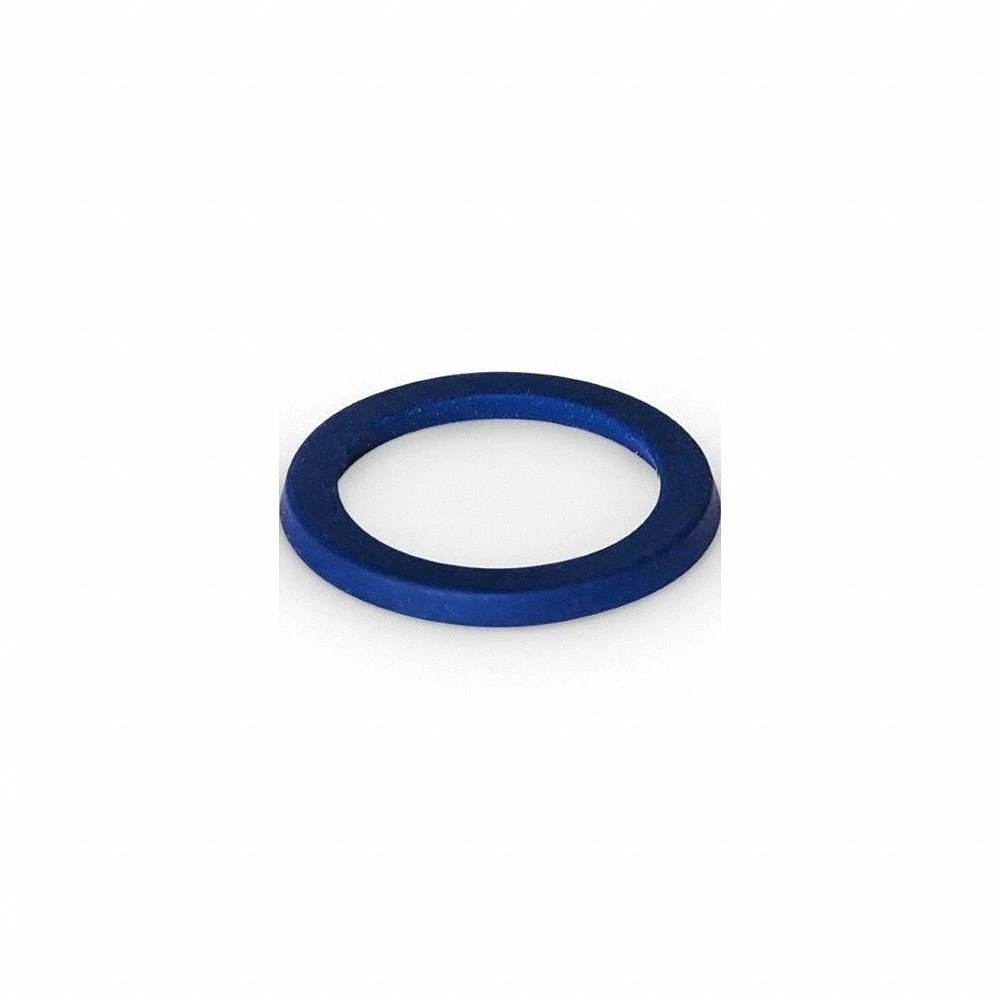

Sealing & Cushioning Washers

Style	Model	MPN	Price
A	76001282HNBR85	76001282HNBR85	€3.64
A	760014102HNBR85	760014102HNBR85	€3.77
A	760016122HNBR85	760016122HNBR85	€3.77
A	760018142HNBR85	760018142HNBR85	€3.94
A	760021172HNBR85	760021172HNBR85	€4.23
A	760022182HNBR85	760022182HNBR85	€4.34
A	760025212HNBR85	760025212HNBR85	€4.46
A	760030262HNBR85	760030262HNBR85	€4.80

THOMAS & BETTS -

Sealing Ring, 1/2 Inch Size

Model	Item	Price (ex. VAT)
H050CAPA	BK9HBH	€35.86

THOMAS & BETTS -

Sealing Ring, 1-1/2 Inch Size

Model	Item	Price (ex. VAT)
H150CAPA	BK9HEU	€49.14

ADAPT-ALL -

Sealing Washer, Steel, Not Gr., 1/5 In O.D., 0.85 In I.D., Silver, Gold

Model	Item	Price (ex. VAT)
9500-08	CN8CJB	€0.70

ADAPT-ALL -

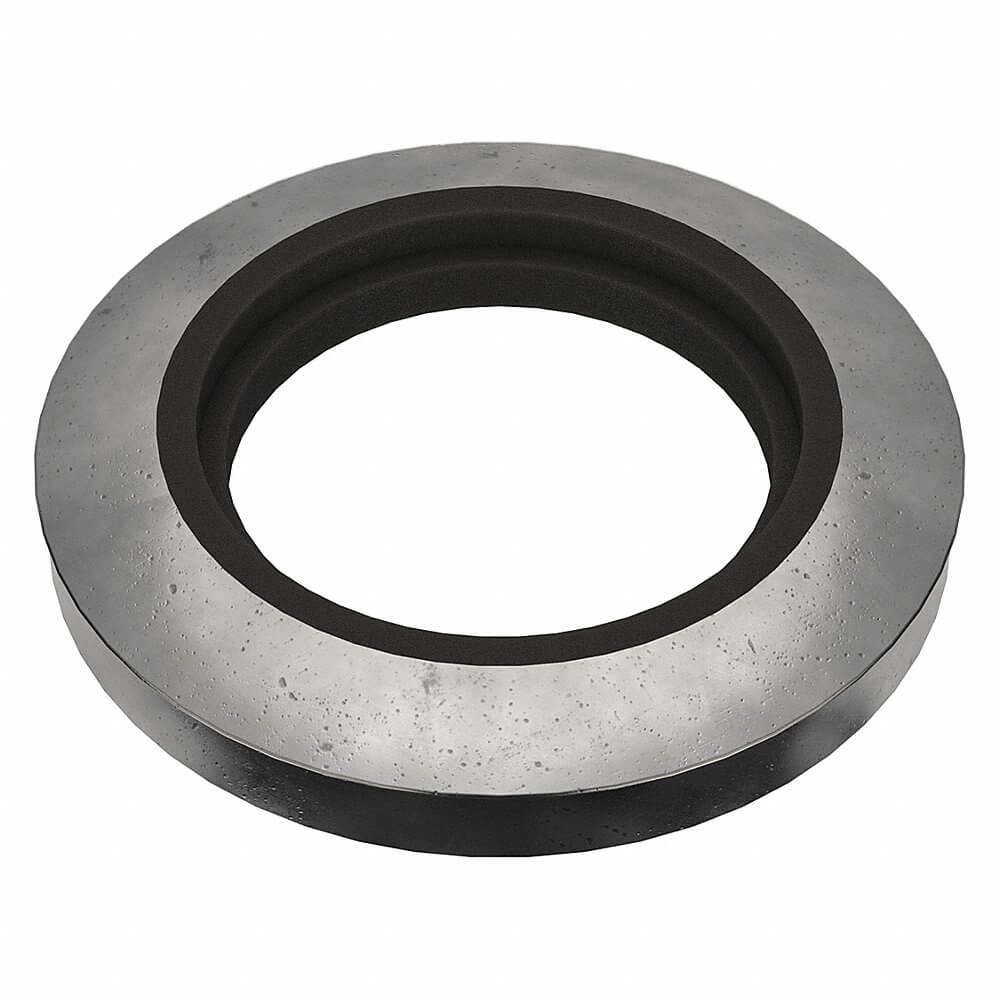

Sealing Washer, Steel, Not Gr., 0.81 In O.D., 0.54 In I.D., Silver, Gold

Model	Item	Price (ex. VAT)
9500-04	CN8CJA	€0.57

THOMAS & BETTS -

Sealing Ring, 2-1/2 Inch Size

Model	Item	Price (ex. VAT)
H250-200 ORGR-TB	BK9HFQ	€177.71

THOMAS & BETTS -

Sealing Ring, 1/2 Inch Size

Model	Item	Price (ex. VAT)
H050CAPCP	BK9HBM	€27.05

ADAPT-ALL -

Sealing Washer, Steel, Not Gr., 1.38 In O.D., 1.06 In I.D., Silver, Gold

Model	Item	Price (ex. VAT)
9500-12	CN8CJD	€0.89

USA SEALING -

Rubber, Steel, Not Gr., 0.469 In O.D., 0.194 In I.D., Metal Bonded

Model	Item	Price (ex. VAT)
ZMBSW-15	CU7KYV	€14.56

USA SEALING -

Rubber, Steel, Not Gr., 3/4 In O.D., 0.383 In I.D., Metal Bonded

Model	Item	Price (ex. VAT)
ZMBSW-18	CU7KZG	€16.72

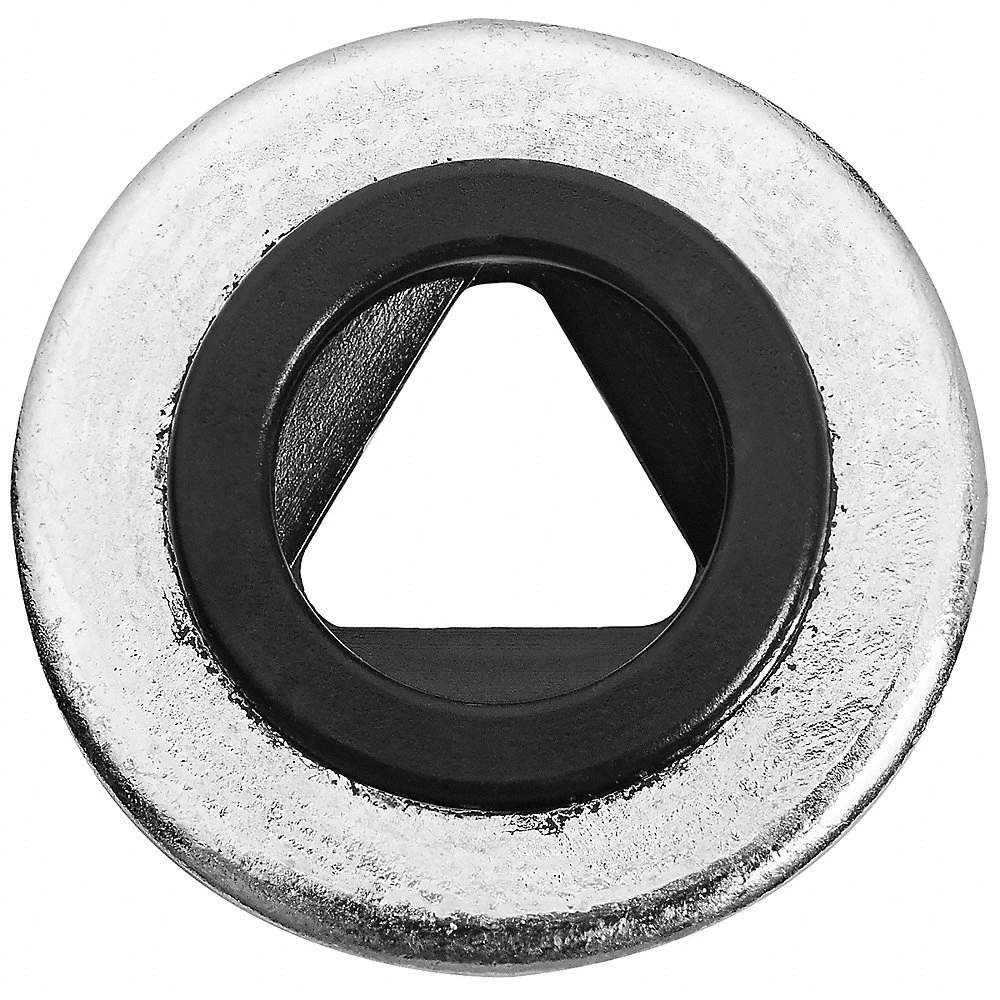

USA SEALING -

Rubber, Steel, Not Gr., 1 3/4 In O.D., 1.02 In I.D., Metal Bonded

Model	Item	Price (ex. VAT)
ZMBSW-23	CU7KYY	€20.95

USA SEALING -

Rubber, Steel, Not Gr., 1 In O.D., 0.51 In I.D., Metal Bonded, Zn Plated

Model	Item	Price (ex. VAT)
ZMBSW-19	CU7KZT	€22.28

USA SEALING -

Rubber, Steel, Not Gr., 9/16 In O.D., 0.255 In I.D., Metal Bonded

Model	Item	Price (ex. VAT)
ZMBSW-16	CU7KZR	€12.87

USA SEALING -

Rubber, Steel, Not Gr., 1.067 In O.D., 0.552 In I.D., Metal Bonded

Model	Item	Price (ex. VAT)
ZMBSW-10	CU7KZQ	€15.07

THOMAS & BETTS -

Sealing Ring, Metric Iso Fitting M16, Chromated Galvanized Steel With Rubber Coating

Model	Item	Price (ex. VAT)
051-72123-1	BL9XBY	€3.48	RFQ

THOMAS & BETTS -

Sealing Ring, 1/2 Inch Size

Model	Item	Price (ex. VAT)
053-71814-132	BL9VNW	€2,422.20	RFQ

STEEL CITY -

Sealing Ring, 1/2 Inch Size, Plastic, Red

Model	Item	Price (ex. VAT)
LT101SR	BK9KTJ	€1.37	RFQ
