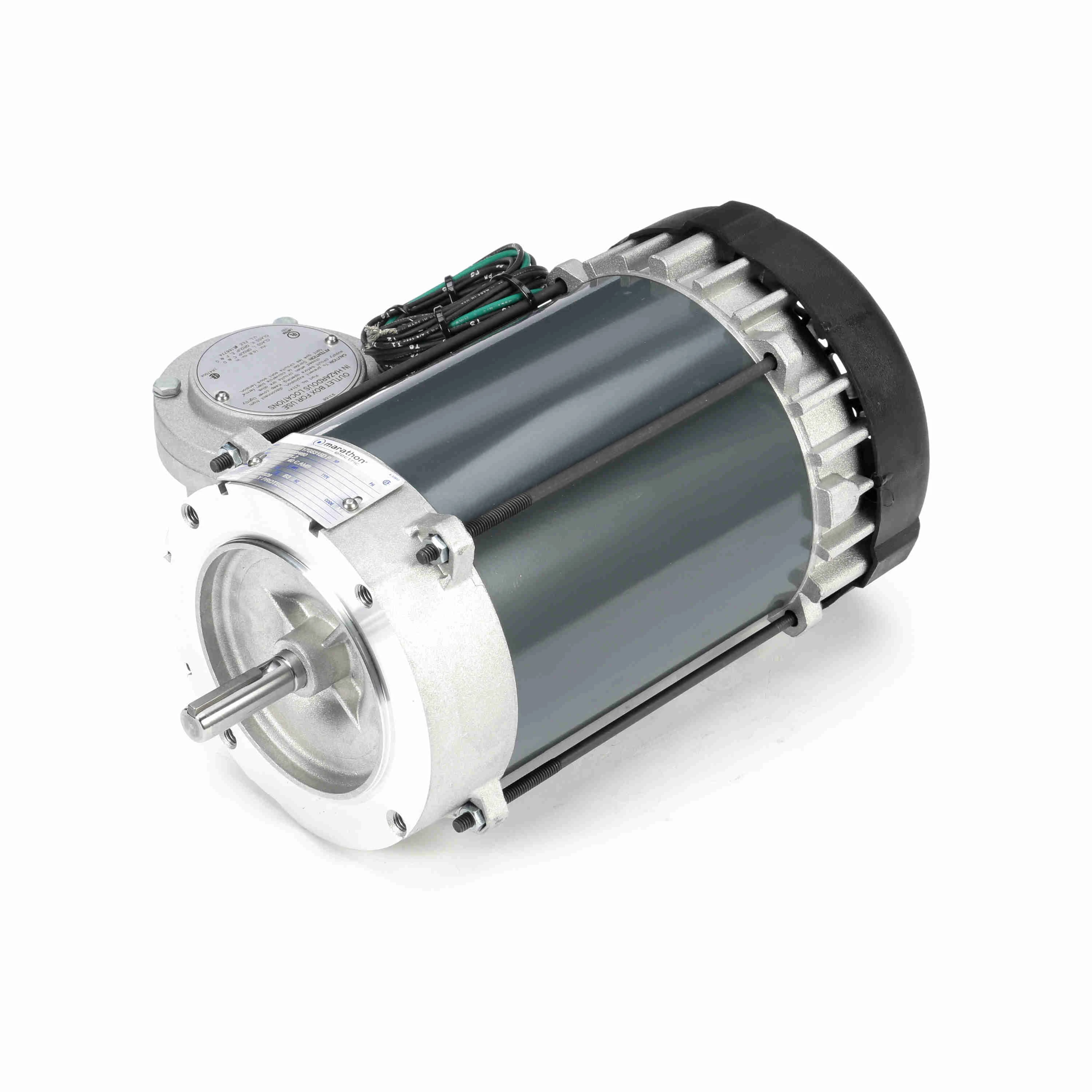

LEESON 056T17G5315 56T17G5315D / G829 Explosion Proof Motor, 0.50 HP, 3 Phase, 60 Hz, 230/460 V, 1800 RPM
Get it by Thursday, Aug 27
€991.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Type | Hazardous Location |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 2.4-2.3/1.2A |
| Hazardous Location Class | 1 C, D / 2 F, G |
| Hazardous Location Division | Division 1 |
| Hp | 1/2 hp |
| Included | Conduit Box |
| Insulation Class | Class B |
| Lead Length | 12" |
| Length Less Shaft | 11 7/8" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | Automatic |
| Motor Type | Three Phase |
| Mounting Type | Face |
| Nameplate Speed | 1725 RPM |
| Nema Design | B |
| No. Of Speed | 1 |
| Nominal Efficiency | 68% |
| Overall Length | 13 15/16" |
| Phase | 3 |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Speed | 1701-1800 RPM |
| Temp. Code | T3B |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 12.6 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501514040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Hp | Voltage | Frame | Phase | Motor Application | Motor Mounting Type | Motor Thermal Protection | Motor Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056H17E5301 | 1/4 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €919.47 | |
 |
056H17E5302 | 1/3 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €1,078.24 | |
 |
056H17E5303 | 1/2 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €1,452.07 | |
 |
056H17E5304 | 3/4 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €1,287.06 | |
 |
056H17E5305 | 1 hp | 230/460V AC | 56C | 3 | Crane | Rigid Base | Thermostat | 3-Phase | €1,409.55 | |
 |
118015.00 | 33/100 hp | 90V | 56C | - | Hazardous Location | Face, Base | Auto | Permanent Magnet Dc | €5,029.70 | |
 |
118016.00 | 1/2 hp | 90V | 56C | - | Hazardous Location | Face, Base | Auto | Permanent Magnet Dc | €4,540.55 |
