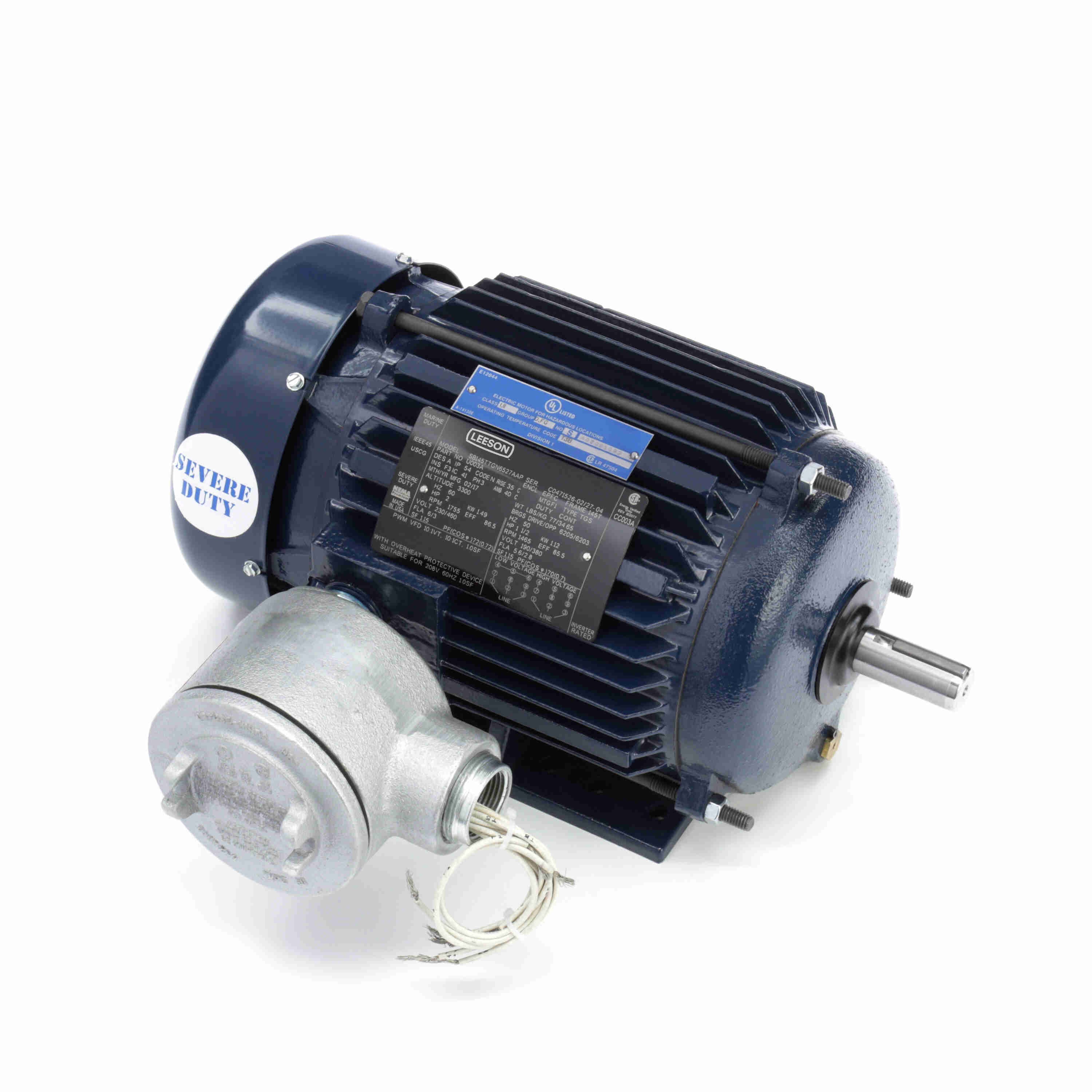

LEESON 145TTGN6527 U003A / 145TTGN6527AA Explosion Proof Motor, 2/1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380 V, 1800 RPM
Get it by Wednesday, Dec 24
€1,238.39 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Ambient Temp. | 40°C |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Duty Cycle | Continuous |
| Efficiency Group | Premium |
| Frame | 145T |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz |
| Full Load Amps | 6/3A |
| Hazardous Location Class | 1 D / 2 F, G |
| Hazardous Location Division | Division 1 |
| Hp | 2 hp |
| Hz | 60 Hz |
| Includes | (11) 12" Leads Through 1/2 NPT Nipple |
| Insulation Class | Class F |
| Length Less Shaft | 12 7/16" |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 104°F |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | T Stat |
| Motor Type | Three Phase |
| Nameplate Rpm | 1755 RPM |
| Nema Design | A |
| Nominal Efficiency | 86.5% |
| Number | CC003A |
| Number Of Speeds | 1 |
| Overall Length | 14 3/4" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 5/16" |
| Temp. Code | T3B |
| Thermal Protection | Thermostat |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Warranty | 3 yrs. |
| Weight | 30 lbs. |
Shipping Info:
| Ship weight (kg) | 34.65 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 40.16 |
| Ship width (cm) | 36.35 |
| HS code | 8501524000 |
| Country of Origin | MX |
Product Details:
- Supersedes Marathon - U003 / 145TTGN4027
Product Variants
| Product | Model | Hp | Nameplate Rpm | Hazardous Location Class | Frame | Motor Thermal Protection | Temp. Code | Shaft Dia. | Enclosure Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

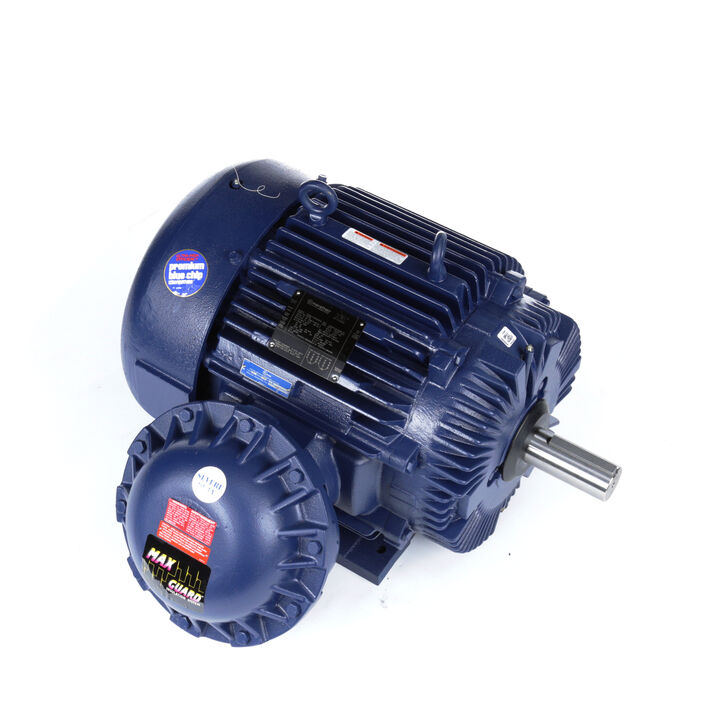

364TTGS16536 | 60 hp | 1780 RPM | 1 C, D / 2 F, G | 364T | T Stat | T3B | 2 3/8" | Totally Enclosed Fan Cooled | €15,012.30 | |
 |

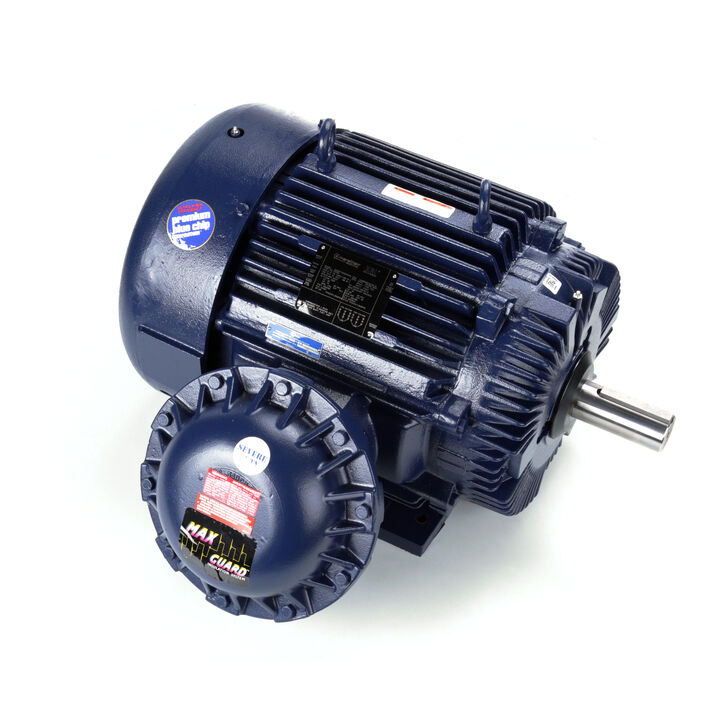

365TTGS16540 | 75 hp | 1782 RPM | 1 C, D / 2 F, G | 365T | T Stat | T3B | 2 3/8" | Totally Enclosed Fan Cooled | €18,409.46 | |
 |
143TTGN6526 | 1 hp | 1765 RPM | 1 D / 2 F, G | 143T | Thermostat | T3B | 7/8" | - | €1,253.60 | |
 |
145TTGN6526 | 1 1/2 hp | 1755 RPM | 1 D / 2 F, G | 145T | Thermostat | T3B | 7/8" | - | €1,534.14 | |
 |

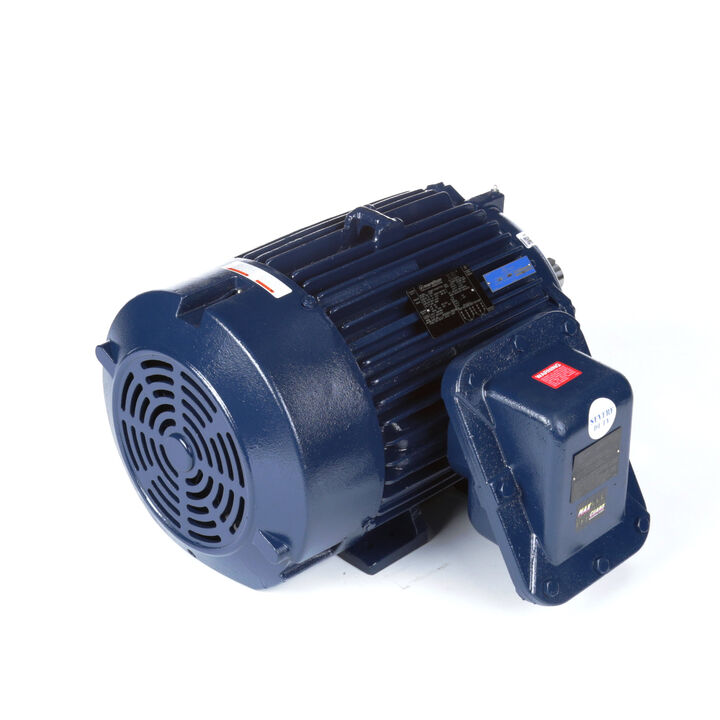

286TTGN16577 | 20 hp | 1175 RPM | 1 C, D / 2 F, G | 286T | T Stat | T3B | 1 7/8" | Totally Enclosed Fan Cooled | €7,672.56 | |
 |

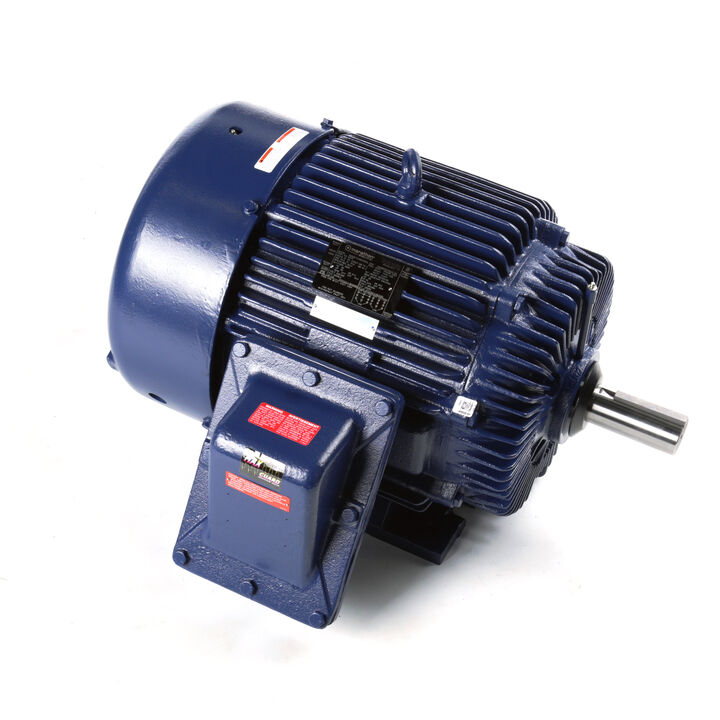

326TTGS6532 | 50 hp | 1777 RPM | 1 C, D / 2 F, G | 326T | T Stat | T3B | 2 1/8" | Totally Enclosed Fan Cooled | €11,438.73 | |
 |

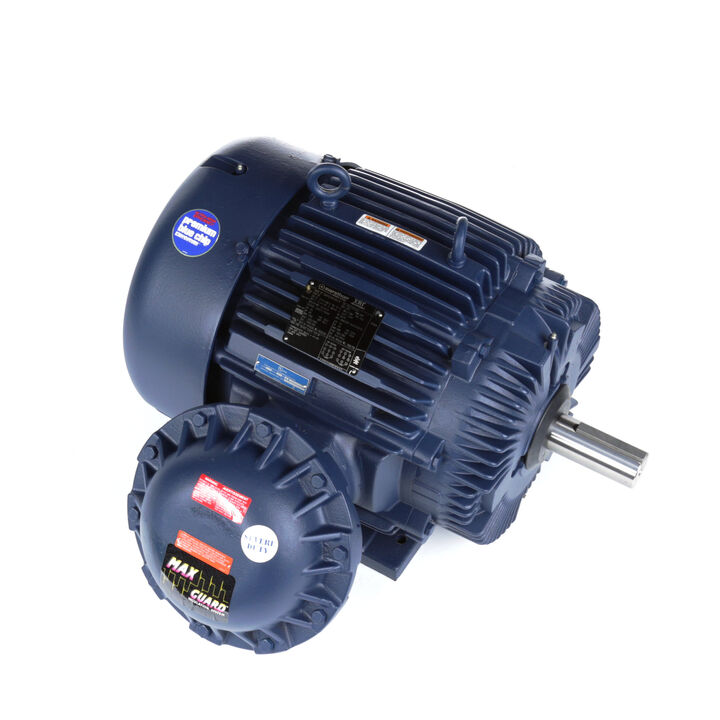

364TTGS16577 | 40 hp | 1185 RPM | 1 C, D / 2 F, G | 364T | T Stat | T3B | 2 3/8" | Totally Enclosed Fan Cooled | €16,291.50 |
