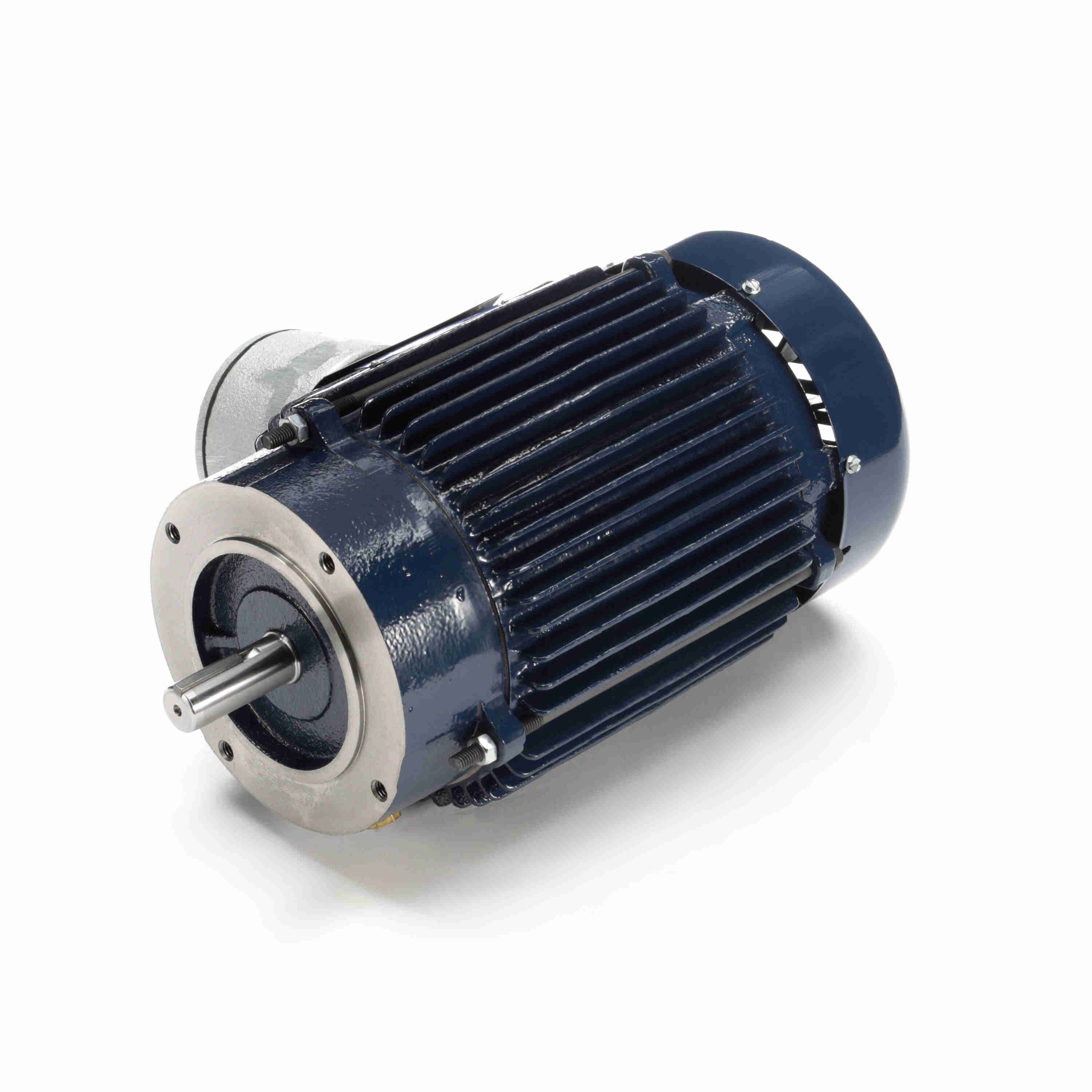

LEESON 145TTGN16036 C321B / 145TTGN16036AA Explosion Proof Motor, 1.50/1 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380 V, 1800 RPM
Get it by Tuesday, Dec 23
10.00% off
€1,357.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency Group | NEMA Premium |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 145TC |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 4.6/2.3A |
| Hazardous Location Class | 1 D / 2 F, G |
| Hazardous Location Division | Division 1 |
| Hp | 1 1/2 hp |
| Includes | Explosion Proof Conduit Box |
| Insulation Class | Class B |
| Lead Length | 12" |
| Length Less Shaft | 13 1/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | T Stat |
| Motor Type | Three Phase |
| Mounting Type | Face |
| Nameplate Rpm | 1755 RPM |
| Nema Design | B |
| Nominal Efficiency | 86.5% |
| Number | CC003A |
| Number Of Speeds | 1 |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/8" |
| Temp. Code | T3B |
| Thermal Protection | Thermostat |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Weight | 256 lbs. |
Shipping Info:
| Ship weight (kg) | 39.15 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 56.36 |
| Ship width (cm) | 41.91 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Hazardous Location Class | Frame | Motor Thermal Protection | Motor Design | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056T17G15599 | 230/460V AC | 1 hp | 1725 RPM | 1 C, D / 2 F, G | 56C | Automatic | 3 Phase | Rolled Steel | €1,166.78 | |
 |
056T17G15615 | 575V AC | 1 hp | 1725 RPM | 1 C, D / 2 F, G | 56C | Automatic | 3 Phase | Rolled Steel | €1,166.78 | |
 |
056T17G15601 | 230/460V AC | 1 1/2 hp | 1725 RPM | 1 C, D / 2 F, G | 56C | Auto | 3-Phase | Rolled Steel | €1,629.17 | |
 |
143TTGN16539 | 230/460V AC | 1 hp | 1765 RPM | 1 D, 2 F, G | 143TC | Thermostat | 3 Phase | Cast Iron | €1,346.35 |
