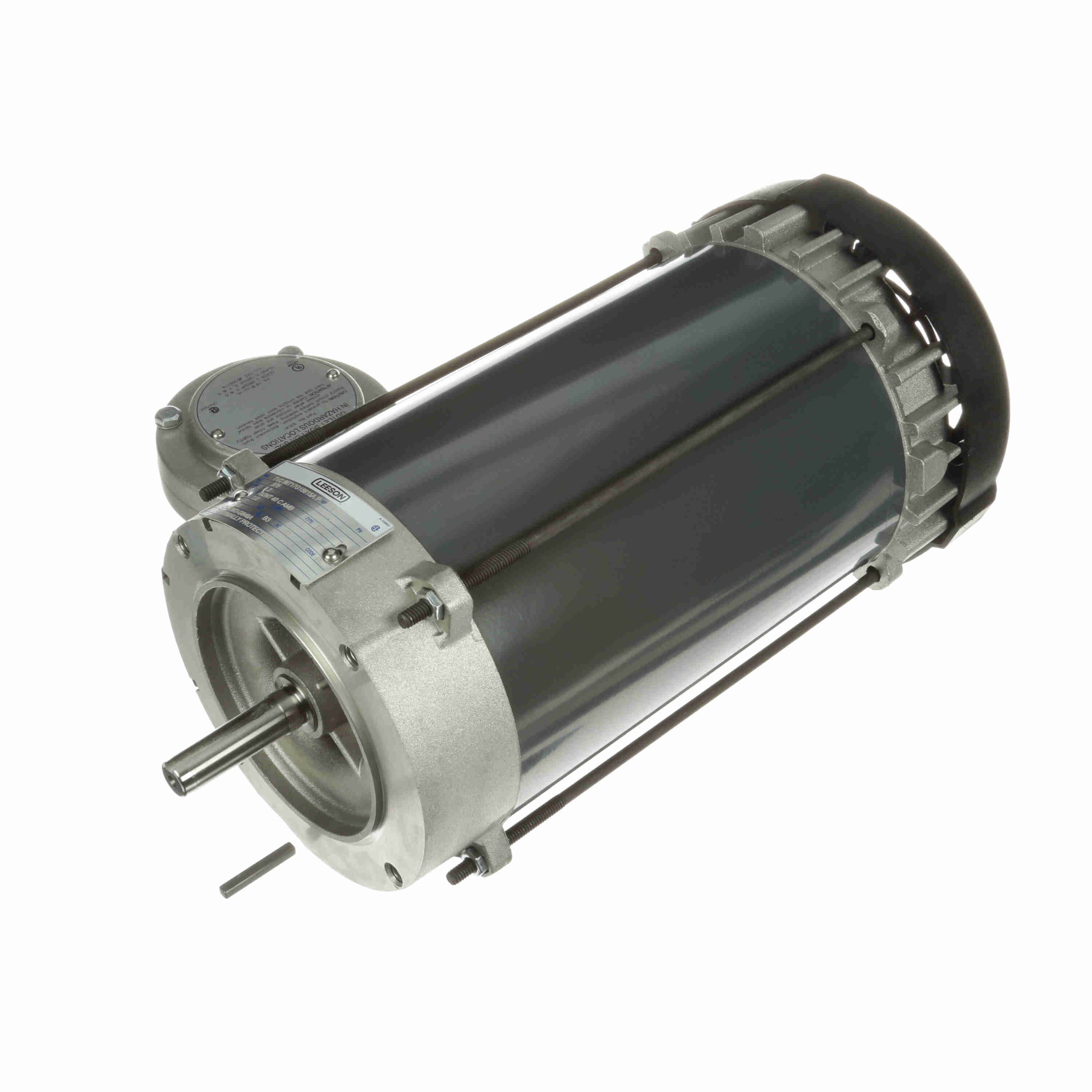

LEESON 056T17G15615 G846A / 56T17G15615A Explosion Proof Motor, 1 HP, 3 Phase, 60 Hz, 575 V, 1800 RPM
Get it by Thursday, Dec 18
€1,166.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency Group | NEMA Premium |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.3A |
| Hazardous Location Class | 1 C, D / 2 F, G |
| Hazardous Location Division | Division 1 |
| Hp | 1 hp |
| Includes | Explosion Proof Conduit Box |
| Insulation Class | Class B |
| Lead Length | 18" |
| Length Less Shaft | 13 7/8" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Hazardous Location |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face/Base |
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Automatic |
| Motor Type | Three Phase |
| Nameplate Rpm | 1725 RPM |
| Nema Design | B |
| Nominal Efficiency | 85.5% |
| Number | CC003A |
| Number Of Speeds | 1 |
| Overall Length | 15 15/16" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Temp. Code | T3B |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 575V AC |
| Weight | 48 lbs. |
Shipping Info:
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 24.77 |
| Ship length (cm) | 49.05 |
| Ship width (cm) | 28.42 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Hazardous Location Class | Frame | Motor Thermal Protection | Motor Design | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

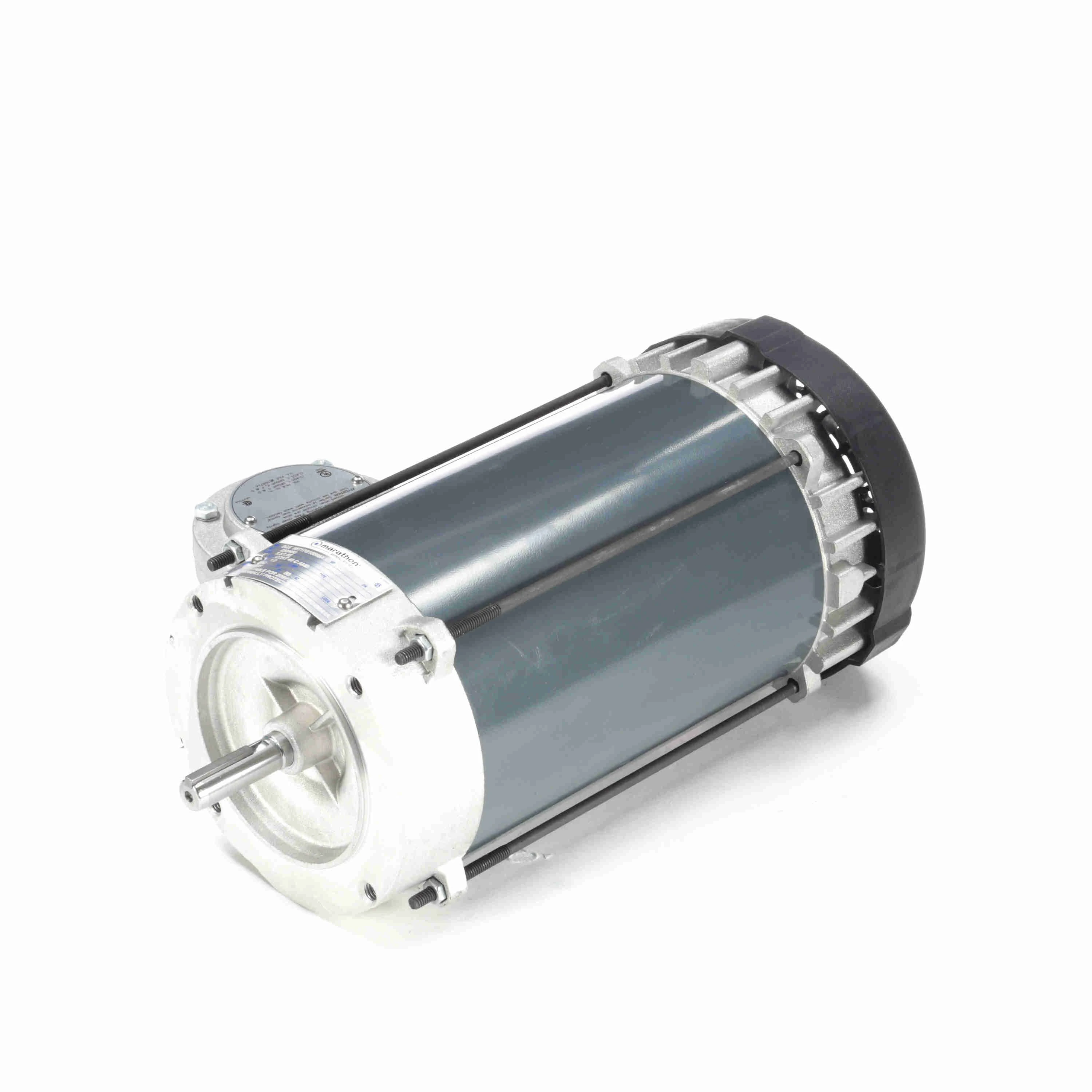

056T17G15599 | 230/460V AC | 1 hp | 1725 RPM | 1 C, D / 2 F, G | 56C | Automatic | 3 Phase | Rolled Steel | €1,166.78 | |
 |

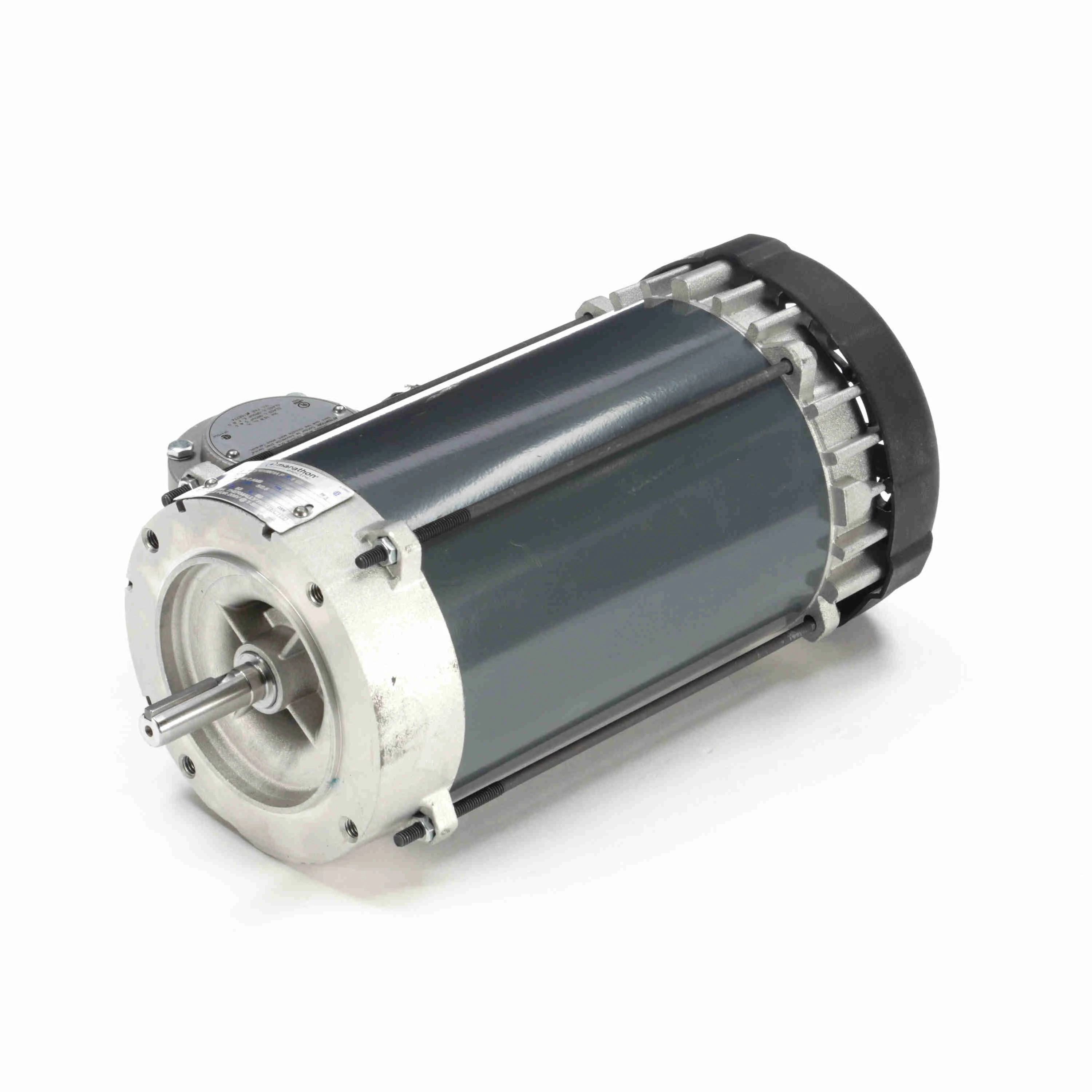

056T17G15601 | 230/460V AC | 1 1/2 hp | 1725 RPM | 1 C, D / 2 F, G | 56C | Auto | 3-Phase | Rolled Steel | €1,629.17 | |
 |

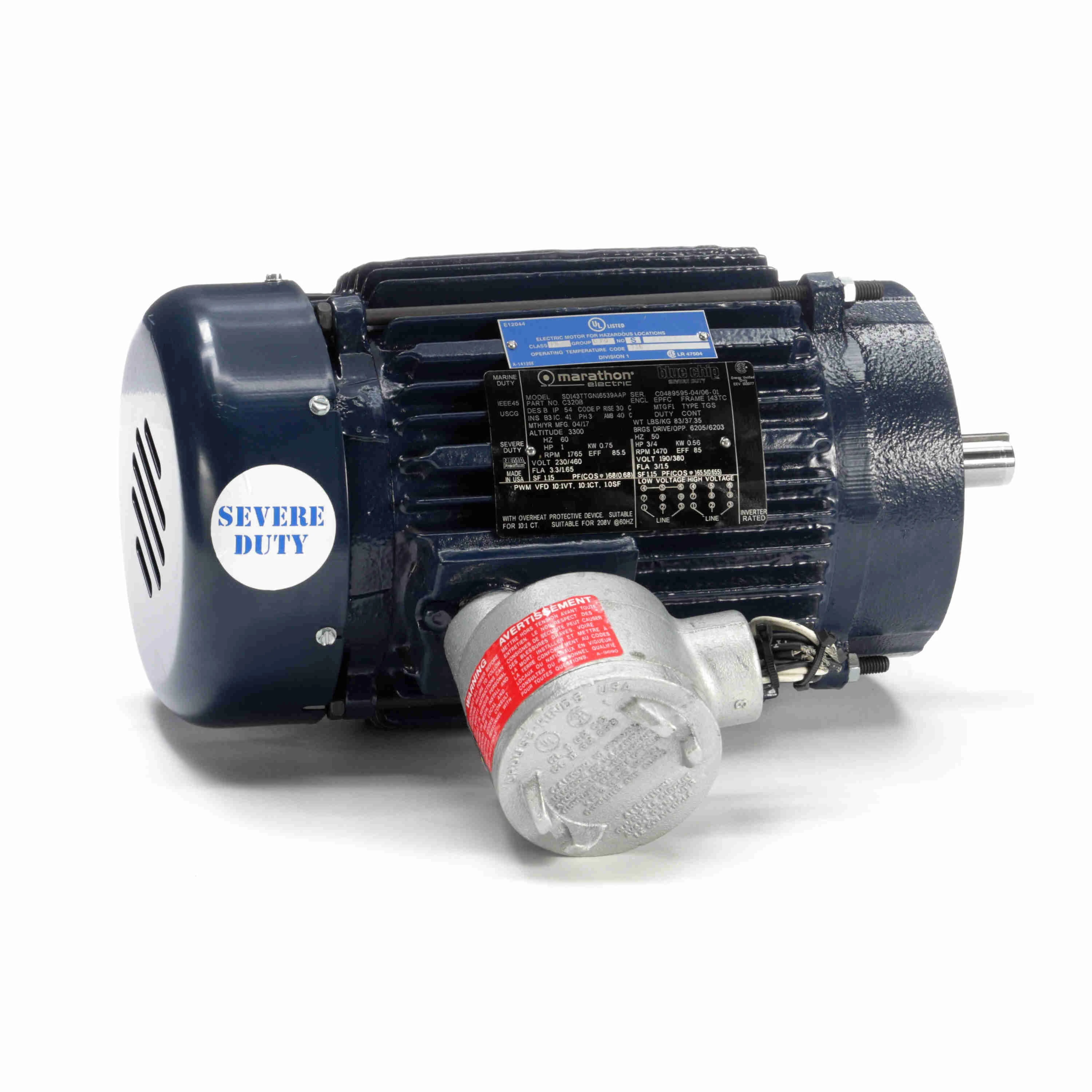

143TTGN16539 | 230/460V AC | 1 hp | 1765 RPM | 1 D, 2 F, G | 143TC | Thermostat | 3 Phase | Cast Iron | €1,346.35 | |
 |

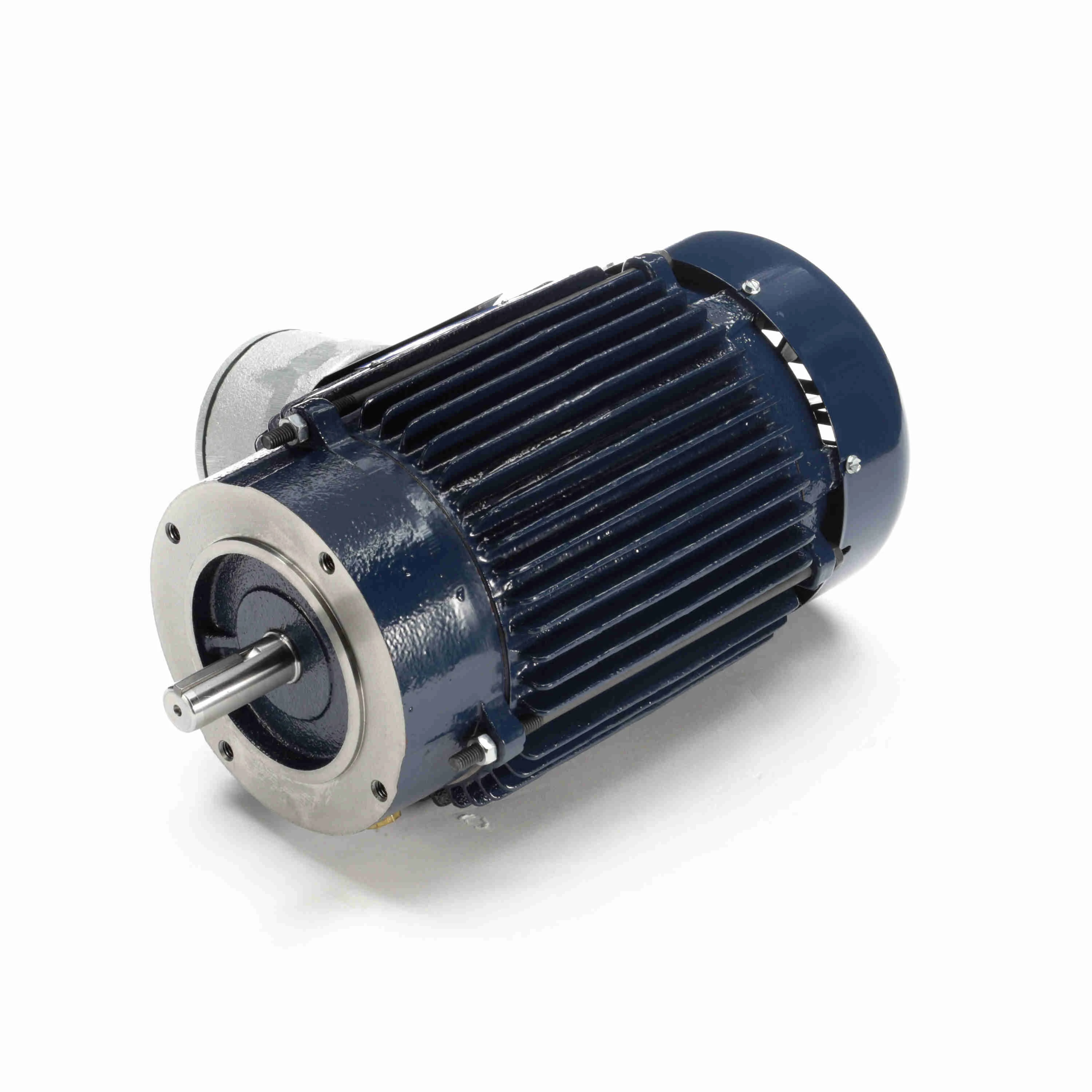

145TTGN16036 | 230/460V AC | 1 1/2 hp | 1755 RPM | 1 D / 2 F, G | 145TC | T Stat | 3-Phase | Cast Iron | €1,508.22 |
