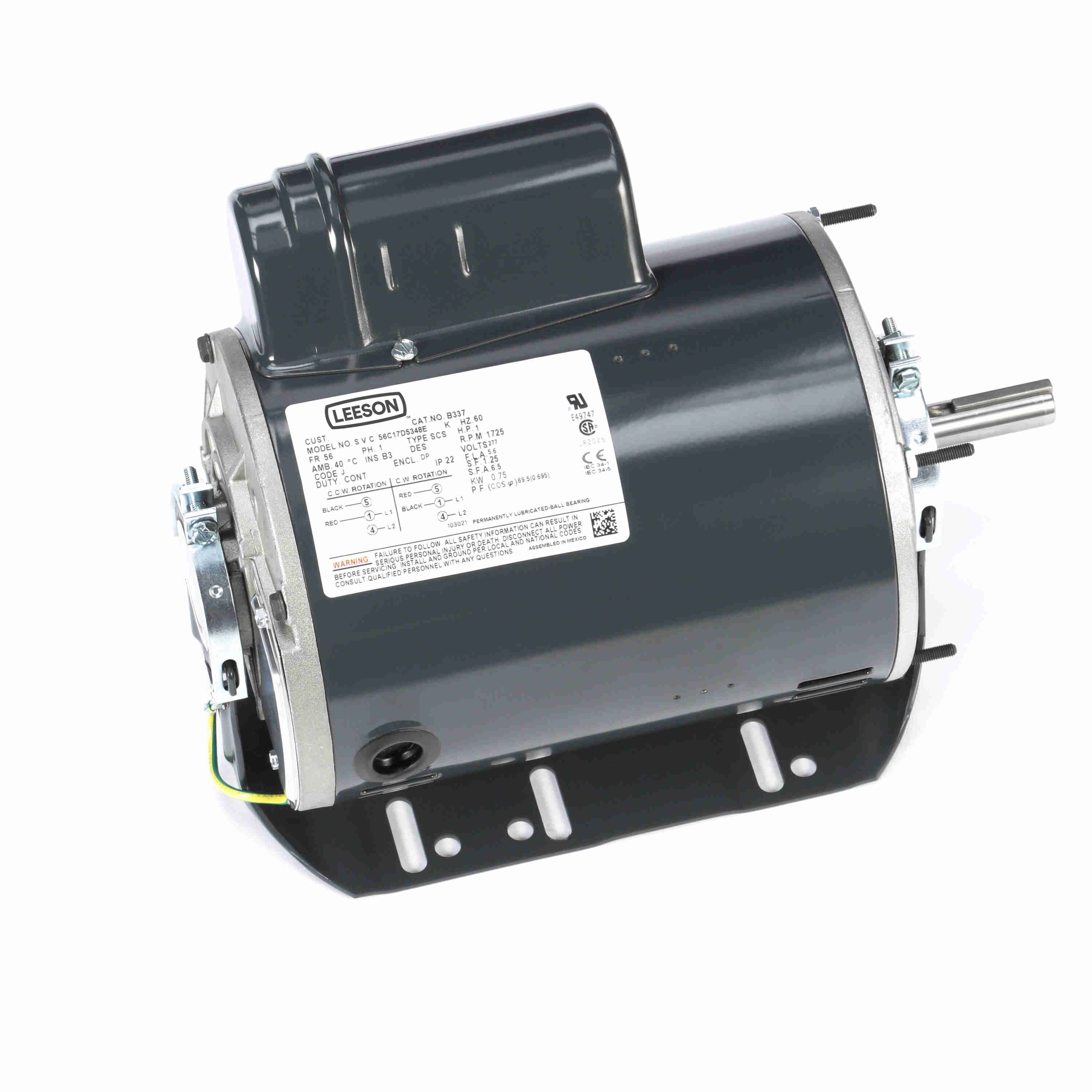

LEESON 056C17D5348 B337 / 56C17D5348E Fan and Blower Motor, 1 HP, 1 Phase, 60 Hz, 277V, 1800 RPM
Get it by Thursday, Dec 18
€671.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | Not Applicable |
| Efficiency | N/A % |
| Enclosure Type | Dripproof |
| Frame | 56 |
| Frequency | 60 Hz |
| Full Load Amps | 5.6A |
| Hp | 1 hp |
| Insulation Class | Class B |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Extended Studs, Resilient Base |
| Motor Shaft Rotation | Selective CCW |
| Motor Thermal Protection | No |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | Resilient Base Extended Studs |
| Nameplate Rpm | 1800 RPM |
| Nema Design | No Design Code |
| Number Of Speeds | 1 |
| Phase | 1 |
| Power | 0.75 kW |
| Rpm | 1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1.91" |
| Shaft Orientation | Horizontal |
| Voltage | 277V AC |
Shipping Info:
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 19.69 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 24.43 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Details:
- Starting Type: CAP START IND RUN
- KVA Code: K
- Drive End Bearing: BALL
- IP Code: 22
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Voltage | Hp | Motor Mounting Position | Frame | Shaft Length | Motor Enclosure Design | Max. Ambient Temp. | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR48TN3084X | 208-230/190-220V AC | 1 1/3 hp | Horizontal | 56H | 1 7/8" | Open Dripproof | 122°F | Auto | €1,289.06 | |
 |
5KCR49PN3011 | 115V AC | 1/4 hp, 3/4 hp | Horizontal | 56 | 1 7/8" | Open Dripproof | 104°F | Auto | €807.48 | |
 |
5KCR49PN3011X | 115V AC | 1/4 hp, 3/4 hp | Horizontal | 56 | 1 7/8" | Open Dripproof | 104°F | Auto | €948.86 | |
 |
5KCR49PN3012X | 208-230V AC | 1/4 hp, 3/4 hp | Horizontal | 56 | 1 7/8" | Open Dripproof | 104°F | Automatic | €777.24 | |
 |
5KCR49SN3009 | 115V AC | 1 1/3 hp | Horizontal | 56 | 1 7/8" | Open Dripproof | 104°F | None | €1,005.04 | |
 |
5KCR49SN3009X | 115V AC | 1 1/3 hp | Horizontal | 56 | 1 7/8" | Open Dripproof | 104°F | Auto | €1,273.25 | |
 |
056C17D2074 | 115/208-230V AC | 3/4 hp | Horizontal | 56 | 1 7/8" | Open Dripproof | 104°F | Auto | €601.61 |
