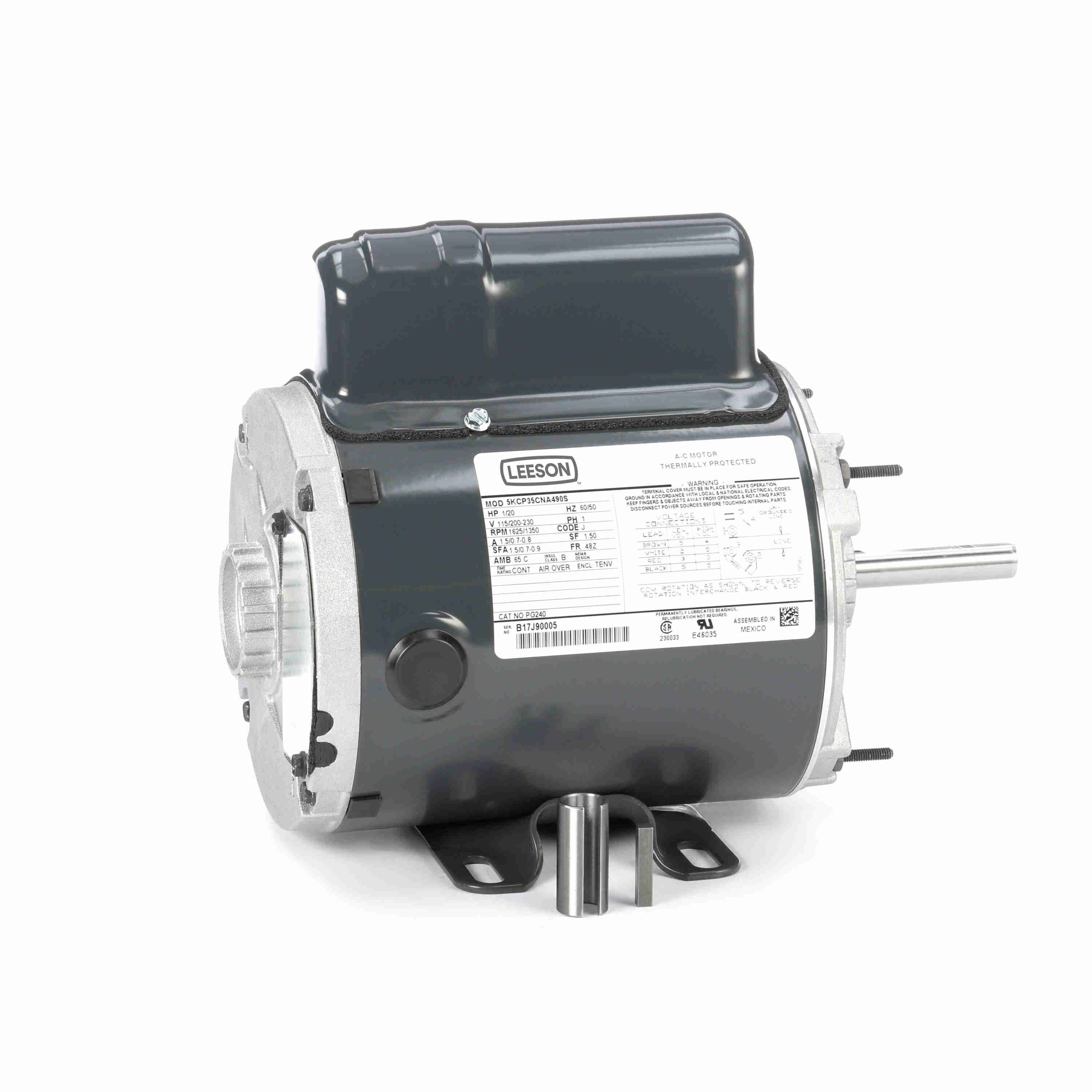

LEESON 5KCP35CNA490S PG240 Fan and Blower Motor, 0.05 HP, 1 Phase, 60 Hz, 115/200-230V, 1800 RPM
Get it by Tuesday, Sep 1
€569.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 65°C |
| Ambient Temp. | 65°C |
| Duty Cycle | Continuous |
| Enclosure Type | Totally Enclosed Non Ventilated |
| Frame | 48Z |
| Frequency | 50/60 Hz |
| Full Load Amps | 1.5/0.7-0.8A |
| Hp | 1/20 hp |
| Insulation Class | Class B |
| Max. Ambient Temp. | 65°C |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Rotation | CCW |
| Motor Thermal Protection | Automatic |
| Motor Type | Permanent Split Capacitor |
| Nameplate Speed | 1625/1350 RPM |
| No. Of Speed | 1 |
| Phase | 1 |
| Product Datasheet | leeson-5kcp35cna490s.pdf |
| Service Factor | 1.5 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2 1/4" |
| Shaft Orientation | Horizontal/Vertical |
| Speed | 1625/1350 RPM |
| Thermal Protection | Automatic |
| Voltage | 115/200-230V |
Shipping Info:
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 34.77 |
| Ship width (cm) | 18.11 |
| HS code | 8501402040 |
| Country of Origin | MX |
Product Details:
- Starting Type: Squirrel Cage Induction
- KVA Code: J
- Drive End Bearing: BALL
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Frequency | Full Load Amps | Service Factor | Mounting Type | Motor Type | Motor Shaft Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR49PN3011 | 115V AC | 1/4 hp, 3/4 hp | 60 Hz | 9/6.4A | 1.25 | Cradle Base | Capacitor Start | CW, CCW | €807.48 | |
 |
5KCR49PN3012X | 208-230V AC | 1/4 hp, 3/4 hp | 60 Hz | 4.3-4.4/3.1-3.2A | 1.25 | Cradle Base | Capacitor Start | CW, CCW | €777.24 | |
 |
5KCR49SN3009 | 115V AC | 1 1/3 hp | 60 Hz | 10.8/7.4A | 1.15 | Cradle Base | Capacitor Start | CW, CCW | €1,005.04 | |
 |
5KC49NN0061T | 115/208-230V AC | 1 hp | 60 Hz | 14.4/7.2A | 1 | Resilient Base | Capacitor Start/Induction Run | CW, CCW | €610.59 | |
 |
056B17D5331 | 115/208-230V | 2 hp | 60 Hz | 21/10.5-11.3A | 1.15 | Resilient Base Extended Studs | - | CW, CCW | €662.45 | |
 |
5KC46LN0269X | 115/208-230V AC | 3/4 hp | 60 Hz | 13.3/6.5-6.6A | 1.25 | Resilient Base | Capacitor Start/Induction Run | CCW | €954.23 | |
 |
048C17D2044 | 115/208-230V AC | 1/3 hp | 60 Hz | 5.8/2.9-3.1A | 1.35 | Resilient Base Extended Studs | Capacitor Start/Induction Run | CW, CCW | €466.82 |
