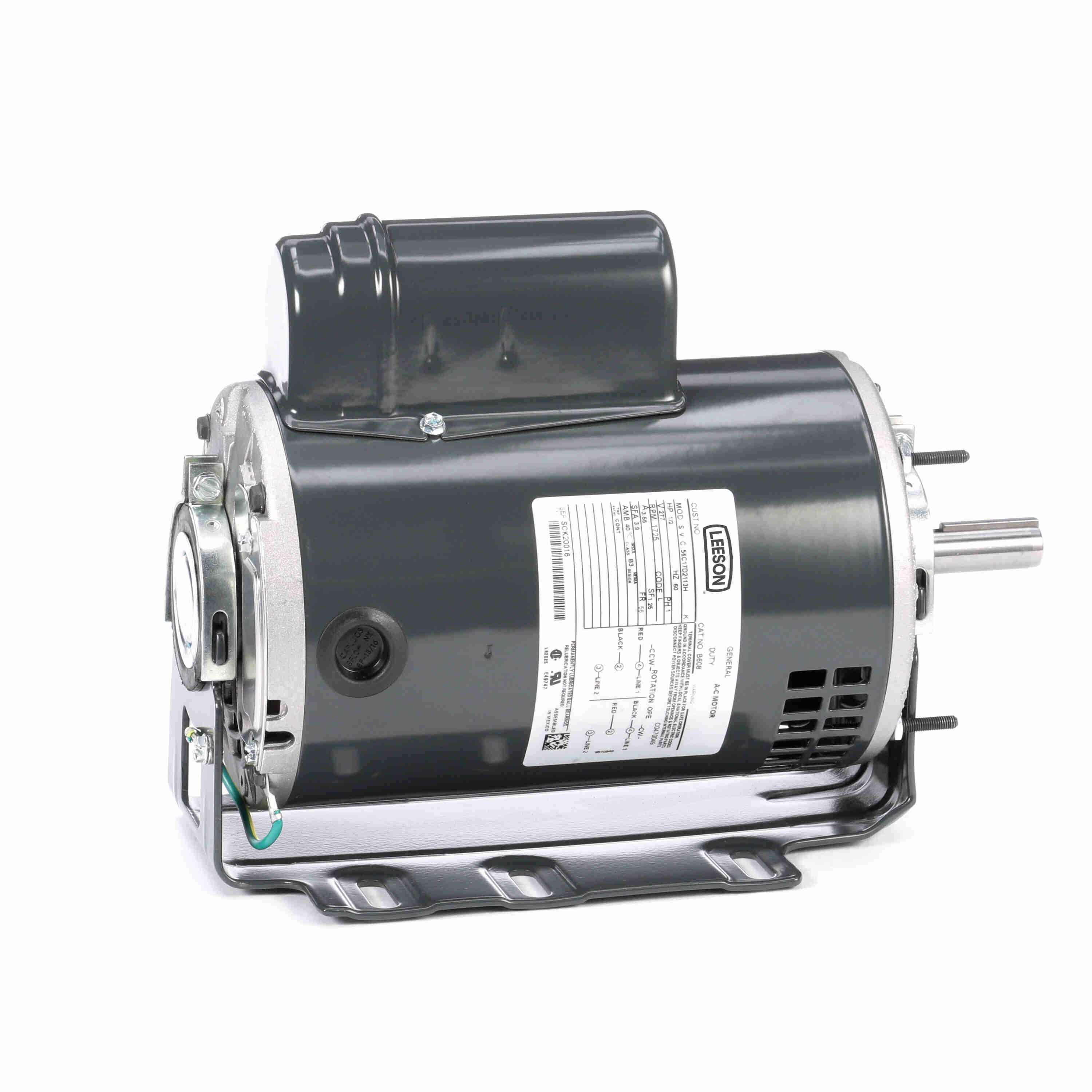

LEESON 056C17D2113 56C17D2113H / B608 Fan and Blower Motor, 0.50 HP, 1 Phase, 60 Hz, 277V, 1800 RPM
Get it by Tuesday, Aug 25
5.00% off
€746.02 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 66% |
| Enclosure Type | Dripproof |
| Frame | 56 |
| Frequency | 60 Hz |
| Full Load Amps | 3.55A |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Extended Studs, Resilient Base |
| Motor Shaft Rotation | Selective CCW |
| Motor Thermal Protection | No |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | Resilient Base Extended Studs |
| Nema Design | No Design Code |
| No. Of Speed | 1 |
| Phase | 1 |
| Power | 0.37 kW |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1.97" |
| Shaft Orientation | Horizontal |
| Speed | 1800 RPM |
| Voltage | 277V AC |
Shipping Info:
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Details:
- Starting Type: CAP START IND RUN
- KVA Code: L
- Drive End Bearing: BALL
- IP Code: 22
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Voltage | Hp | Frequency | Full Load Amps | Service Factor | Mounting Type | Motor Type | Motor Shaft Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR49PN3011 | 115V AC | 1/4 hp, 3/4 hp | 60 Hz | 9/6.4A | 1.25 | Cradle Base | Capacitor Start | CW, CCW | €807.48 | |
 |
5KCR49PN3012X | 208-230V AC | 1/4 hp, 3/4 hp | 60 Hz | 4.3-4.4/3.1-3.2A | 1.25 | Cradle Base | Capacitor Start | CW, CCW | €777.24 | |
 |
5KCR49SN3009 | 115V AC | 1 1/3 hp | 60 Hz | 10.8/7.4A | 1.15 | Cradle Base | Capacitor Start | CW, CCW | €1,005.04 | |
 |
5KC49NN0061T | 115/208-230V AC | 1 hp | 60 Hz | 14.4/7.2A | 1 | Resilient Base | Capacitor Start/Induction Run | CW, CCW | €610.59 | |
 |
056B17D5331 | 115/208-230V | 2 hp | 60 Hz | 21/10.5-11.3A | 1.15 | Resilient Base Extended Studs | - | CW, CCW | €662.45 | |
 |
5KC46LN0269X | 115/208-230V AC | 3/4 hp | 60 Hz | 13.3/6.5-6.6A | 1.25 | Resilient Base | Capacitor Start/Induction Run | CCW | €954.23 | |
 |
5KCP35CNA490S | 115/200-230V | 1/20 hp | 50/60 Hz | 1.5/0.7-0.8A | 1.5 | - | Permanent Split Capacitor | CCW | €569.19 |
