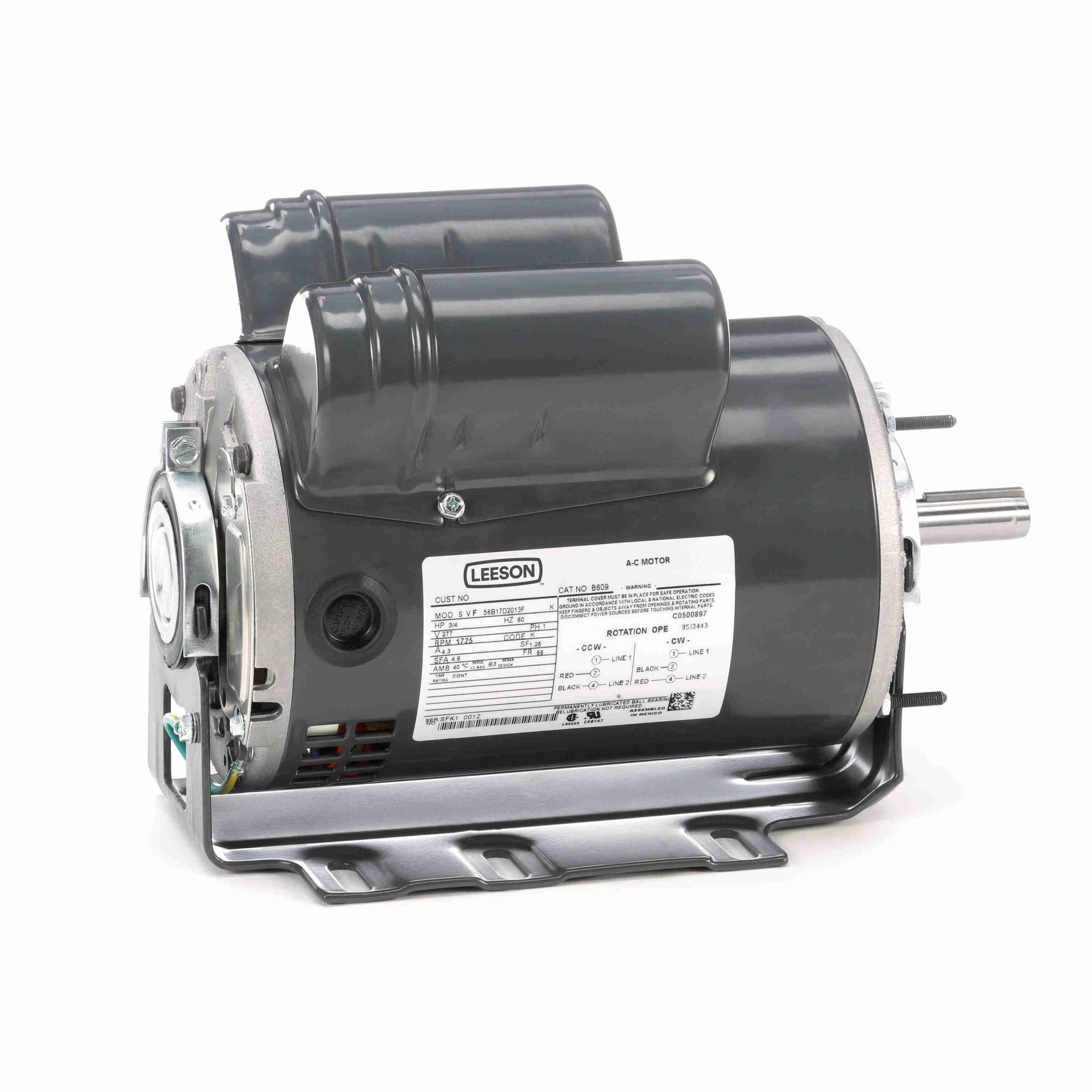

LEESON 056B17D2013 56B17D2013F / B609 Fan and Blower Motor, 0.75 HP, 1 Phase, 60 Hz, 277V, 1800 RPM
Get it by Wednesday, Apr 1
5.00% off
€761.51 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Body Dia. | 5 5/8" |
| Duty Cycle | Continuous |
| Efficiency | N/A % |
| Efficiency | Not Applicable |
| Enclosure Type | Dripproof |
| Frame | 56 |
| Full Load Amps | 4.3A |
| Hp | 3/4 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Length Less Shaft | 9 1/2" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 158°F |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CCW |
| Mounting Type | Resilient Base Extended Studs |
| Nameplate Rpm | 1725 RPM |
| Nema Design | No Design Code |
| No. Of Speeds | 1 |
| Nominal Efficiency | 72% |
| Overall Length | 11 7/16" |
| Phase | 1 |
| Power | 0.56 kW |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 15/16" |
| Shaft Orientation | Horizontal |
| Standards | Csa, Ul |
| Voltage | 277V AC |
Shipping Info:
| Ship weight (kg) | 12.15 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 40.18 |
| Ship width (cm) | 31.9 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Details:
- Starting Type: CAP START CAP RUN
- KVA Code: K
- Drive End Bearing: BALL
- IP Code: 22
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Voltage | Hp | Motor Mounting Position | Frame | Shaft Length | Motor Enclosure Design | Max. Ambient Temp. | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR49PN3011 | 115V AC | 1/4 hp, 3/4 hp | Horizontal | 56 | 1 7/8" | Open Dripproof | 104°F | Auto | €807.48 | |
 |
5KCR49PN3012X | 208-230V AC | 1/4 hp, 3/4 hp | Horizontal | 56 | 1 7/8" | Open Dripproof | 104°F | Automatic | €777.24 | |
 |
5KCR49SN3009 | 115V AC | 1 1/3 hp | Horizontal | 56 | 1 7/8" | Open Dripproof | 104°F | None | €1,005.04 | |
 |
5KC49NN0061T | 115/208-230V AC | 1 hp | Horizontal | 56Z | 2 1/4" | Open Dripproof | 104°F | Automatic | €633.45 | |
 |
056B17D5331 | 115/208-230V | 2 hp | Horizontal | 56H | 1 7/8" | Open Dripproof | 104°F | Automatic | €662.45 | |
 |
5KC46LN0269X | 115/208-230V AC | 3/4 hp | All Angle | 56Z | 1 22/25" | - | - | - | €921.05 | |
 |
048C17D2044 | 115/208-230V AC | 1/3 hp | Horizontal | 48Z | 1 7/8" | ODP | 104°F | Auto | €466.19 |
