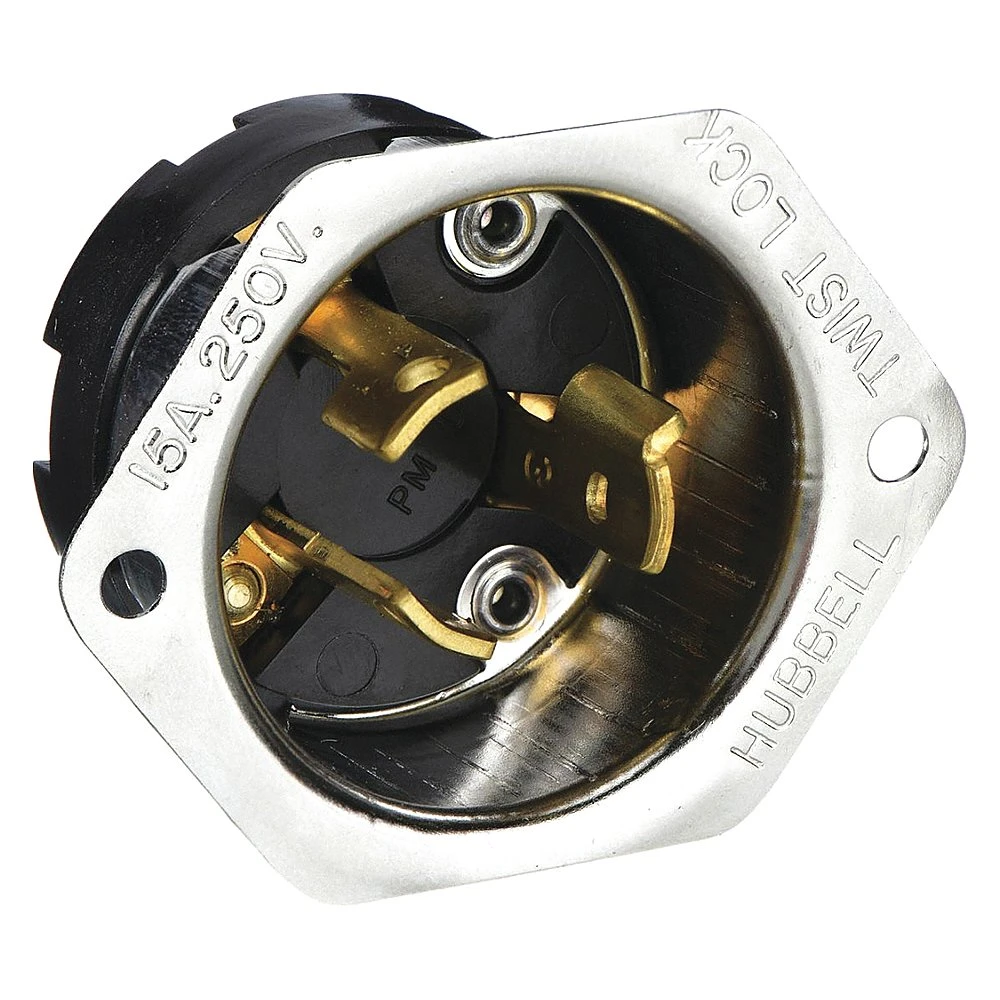

HUBBELL WIRING DEVICE-KELLEMS HBL4586 Flanged Inlet, 15A, 250V, 2-Pole, 3-Wire Grounding, Screw Terminal
Item: AC8QMCModel: HBL4586Cross Ref: 3D785
7 In Stock
3750 W
Black
NEMA L6-15P
Ships within 2 days via
5.00% off
€69.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flanged Inlet |
| Amps | 15A |
| Blade Material | Brass |
| Color | Black |
| Connectivity | Screw Terminals |
| Dielectric Strength | Withstands 2,000V minimum |
| Face Dia. | 1.5" |
| Face Plate Height | 2.31" |
| Flange Material | Stainless Steel |
| Flange Type | Flanged |
| For Environment | Dry |
| For Location | Indoor |
| Grade | General Use |
| Grounding | Grounded |
| Height | 1.09" |
| Housing Color | Black |
| Housing Material | Stainless Steel |
| Hp | 2 hp |
| Included | Mounting Screws |
| Included Mounting Hardware | Yes |
| Insulation | Insulated Body |
| Ip Rating | IP20 |
| Length | 2.31" |
| Market | Industrial |
| Material | Stainless Steel |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 18 AWG |
| Mounting | Screw Mounting |
| Mounting Type | Flush |
| Nema Enclosure Rating | NEMA 4X, NEMA 12 |
| Nema Plug Configuration | L6-15P |
| Nema Rating | NEMA L6-15P |
| No. Of Blades | 3 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Overall Depth | 1.09" |
| Phase | 1 |
| Product Datasheet | hubbell-wiring-device-kellems-hbl4586.pdf |
| Resistance Properties | Heat Resistant, Moisture Resistant |
| Shrouded | No |
| Temp. Rating | Maximum Continuous: 75 Deg. C; Minimum Continuous:-40 Deg. C w/o impact,-25 Deg. with impact. |
| Ul 94 Flammability Rating | HB |
| Voltage | 250V , 250V AC |
| Wattage | 3750 W |
| Watts | 3750 W |
| Width | 1 3/4" |
| Wire Connection Type | Screw Terminal |
| Wire Size | 18 AWG to 10 AWG |
| Wire Type | Standard |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.77 |
| Ship length (cm) | 5.87 |
| Ship width (cm) | 4.45 |
| HS code | 8536698000 |
| Country of Origin | US |
Product Details:
- Special Features: With Stainless Steel Plate
Documentation:
Product Variants
| Product | Model | Phase | Housing Color | Ip Rating | Shrouded | Flange Material | Wire Size | Color | Connectivity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL4716 | 1 | Black | IP20 | No | Stainless Steel | 18 AWG to 10 AWG | Black | Screw Terminals | €66.42 | |
 |
CS6375 | 1 | Silver | IP20 | No | Steel | #10 AWG to #6 AWG | Metallic | Pressure Terminal Screws | €223.08 | |
 |
HBL22CM428 | 3 | Silver | IP30 | No | Steel | #10 AWG to #6 AWG | Metallic | Back Wired Screw Terminals | €1,131.69 | |
 |
HBL2455 | 3 | White | IP20 | No | Steel | 16 AWG to 8 AWG | White | Back Wired Screw Terminals | €79.83 | |
 |
HBL2465 | 3 | White | IP20 | No | Steel | 16 AWG to 8 AWG | White | Back Wired Screw Terminals | €90.69 | |
 |
HBL2655 | 1 | White | IP20 | No | Nylon | 16 AWG to 8 AWG | White | Screw Terminals | €115.18 | |
 |
HBL2755 | 3 | White | IP20 | No | Nylon | 16 AWG to 8 AWG | White | Back Wired Screw Terminals | €135.39 |
