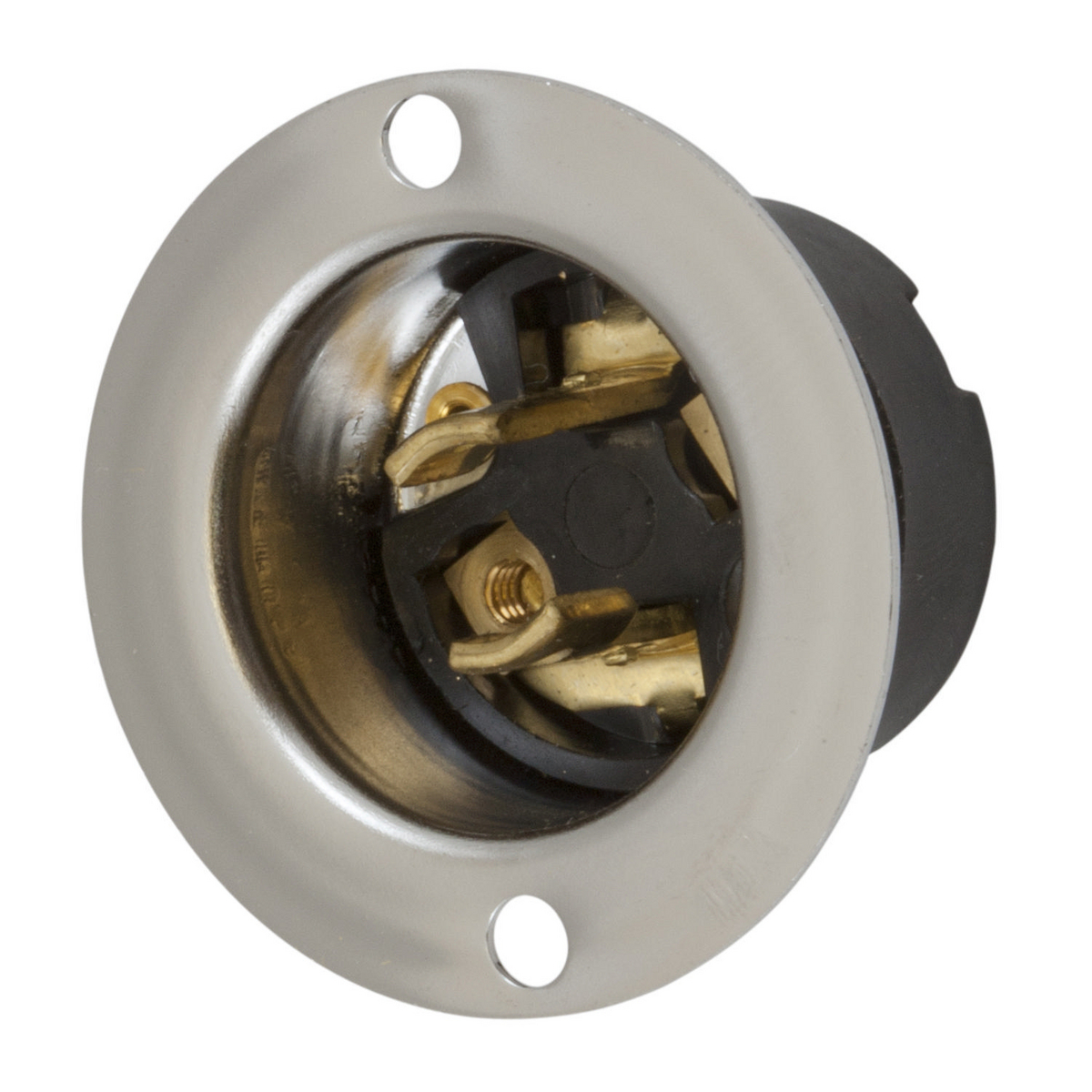

HUBBELL WIRING DEVICE-KELLEMS HBL7466 Flanged Inlet, 15A, 125VAC, 2-Pole, 2-Wire Non Grounding, Screw Terminal
Item: CE6TDLModel: HBL7466
7 In Stock
1875 W
Black
NEMA ML-1P
Ships within 2 days via
€29.47 /unit
This product can only be shipped in multiples of 16Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flanged Inlet |
| Amps | 15A |
| Color | Black |
| Connectivity | Screw Terminals |
| Dielectric Strength | Withstands 2,000V minimum |
| Height | 0.94" |
| Insulation | Insulated Body |
| Length | 1.63" |
| Material | Nylon |
| Mounting | Screw Mounting |
| Nema Rating | NEMA ML-1P |
| No. Of Poles | 2 |
| No. Of Wires | 2 |
| Phase | 1 |
| Product Datasheet | hubbell-wiring-device-kellems-hbl7466.pdf |
| Temp. Rating | Maximum Continuous: 75 Deg. C; Minimum Continuous:-40 Deg. C w/o impact,-25 Deg. with impact. |
| Voltage | 125V |
| Wattage | 1875 W |
| Watts | 1875 W |
| Width | 1.63" |
| Wire Size | 18 AWG to 14 AWG |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.39 |
| Ship length (cm) | 4.14 |
| Ship width (cm) | 4.14 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Phase | Housing Color | Ip Rating | Shrouded | Flange Material | Wire Size | Color | Connectivity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL4716 | 1 | Black | IP20 | No | Stainless Steel | 18 AWG to 10 AWG | Black | Screw Terminals | €66.42 | |
 |
CS6375 | 1 | Silver | IP20 | No | Steel | #10 AWG to #6 AWG | Metallic | Pressure Terminal Screws | €223.08 | |
 |
HBL22CM428 | 3 | Silver | IP30 | No | Steel | #10 AWG to #6 AWG | Metallic | Back Wired Screw Terminals | €1,131.69 | |
 |
HBL2455 | 3 | White | IP20 | No | Steel | 16 AWG to 8 AWG | White | Back Wired Screw Terminals | €79.83 | |
 |
HBL2465 | 3 | White | IP20 | No | Steel | 16 AWG to 8 AWG | White | Back Wired Screw Terminals | €90.69 | |
 |
HBL2655 | 1 | White | IP20 | No | Nylon | 16 AWG to 8 AWG | White | Screw Terminals | €115.18 | |
 |
HBL2755 | 3 | White | IP20 | No | Nylon | 16 AWG to 8 AWG | White | Back Wired Screw Terminals | €135.39 |
