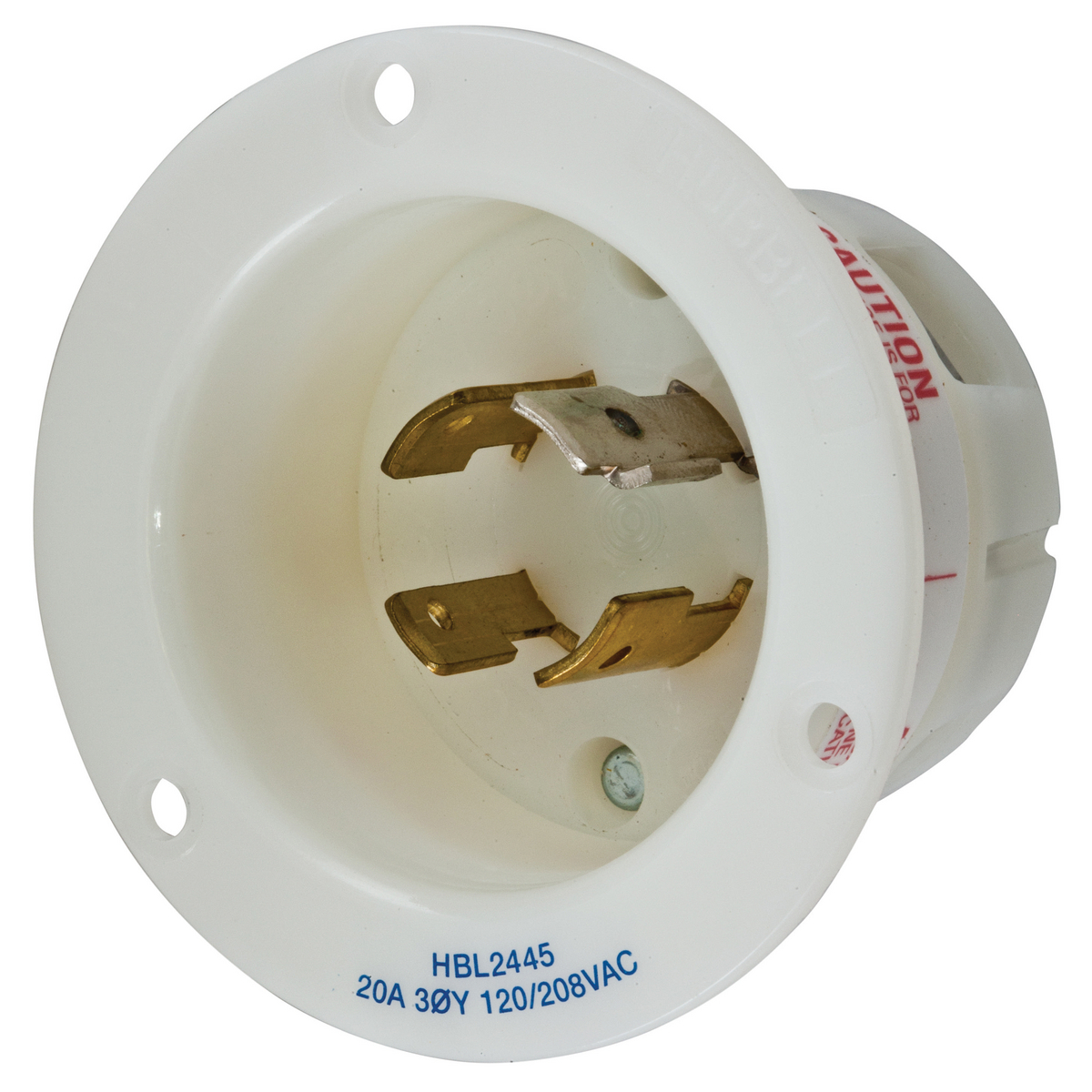

HUBBELL WIRING DEVICE-KELLEMS HBL2445 Flanged Inlet, 20A, 3-Phase, 120/208VAC, 4-Pole, 4-Wire Non-Grounding, White
Item: CE6TAFModel: HBL2445
7 In Stock
4160 W
White
NEMA L18-20P
Ships within 2 days via
€49.10 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flanged Inlet |
| Amps | 20A |
| Color | White |
| Connectivity | Back Wired Screw Terminals |
| Dielectric Strength | Withstands 2,000V minimum |
| Height | 2.27" |
| Insulation | Insulated Body |
| Length | 3.06" |
| Material | Nylon |
| Mounting | Screw Mounting |
| Nema Rating | NEMA L18-20P |
| No. Of Poles | 4 |
| No. Of Wires | 4 |
| Phase | 3 |
| Product Datasheet | hubbell-wiring-device-kellems-hbl2445.pdf |
| Wattage | 4160 W |
| Watts | 4160 W |
| Width | 3.06" |
| Wire Size | 16 AWG to 8 AWG |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 5.77 |
| Ship length (cm) | 7.77 |
| Ship width (cm) | 7.77 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Phase | Housing Color | Ip Rating | Shrouded | Flange Material | Wire Size | Color | Connectivity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL4716 | 1 | Black | IP20 | No | Stainless Steel | 18 AWG to 10 AWG | Black | Screw Terminals | €66.42 | |
 |
CS6375 | 1 | Silver | IP20 | No | Steel | #10 AWG to #6 AWG | Metallic | Pressure Terminal Screws | €223.08 | |
 |
HBL22CM428 | 3 | Silver | IP30 | No | Steel | #10 AWG to #6 AWG | Metallic | Back Wired Screw Terminals | €1,131.69 | |
 |
HBL2455 | 3 | White | IP20 | No | Steel | 16 AWG to 8 AWG | White | Back Wired Screw Terminals | €79.83 | |
 |
HBL2465 | 3 | White | IP20 | No | Steel | 16 AWG to 8 AWG | White | Back Wired Screw Terminals | €90.69 | |
 |
HBL2655 | 1 | White | IP20 | No | Nylon | 16 AWG to 8 AWG | White | Screw Terminals | €115.18 | |
 |
HBL2755 | 3 | White | IP20 | No | Nylon | 16 AWG to 8 AWG | White | Back Wired Screw Terminals | €135.39 |
