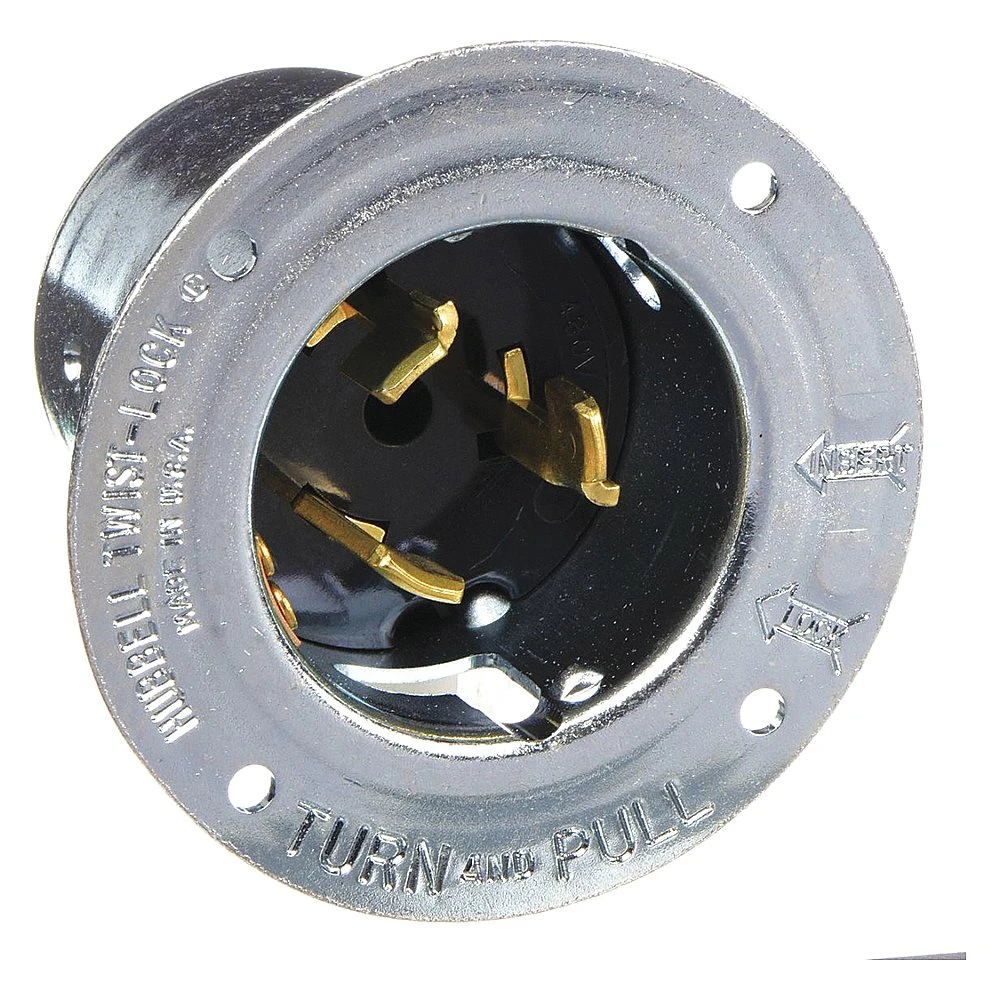

HUBBELL WIRING DEVICE-KELLEMS CS8175 Flanged Inlet, 50A, 3-Phase, Delta, 480VAC, 3-Pole, 4-Wire Grounding, Black
Item: AD7AQQModel: CS8175Cross Ref: 4D206
7 In Stock
24000 W
Metallic
Not Available
Ships within 2 days via
5.00% off
€246.70 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flanged Inlet |
| Amps | 50A |
| Color | Metallic |
| Connectivity | Pressure Terminal Screws |
| Dielectric Strength | Withstands 2,000V minimum |
| Flange Type | Flanged |
| Grade | Grade Industrial |
| Height | 2.62" |
| Housing Color | Silver |
| Ip Rating | IP20 |
| Length | 2.17" |
| Material | Steel |
| Mounting | Screw Mounting |
| Mounting Type | Flush |
| Nema Configuration | Non NEMA |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 12 |
| Nema Plug Configuration | Non NEMA |
| Nema Rating | NEMA 12, NEMA 4, NEMA 4X |
| No. Of Blades | 4 |
| No. Of Poles | 3 |
| No. Of Wires | 4 |
| Phase | 3 |
| Product Datasheet | hubbell-wiring-device-kellems-cs8175.pdf |
| Resistance Properties | Heat Resistant |
| Shrouded | No |
| Type | Non Shrouded |
| Voltage | 480V AC |
| Wattage | 24000 W |
| Watts | 24000 W |
| Width | 3 1/2" |
| Wire Connection Type | Screw Terminal |
| Wire Size | #10 AWG to #6 AWG |
| Wire Type | Standard |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 6.65 |
| Ship length (cm) | 5.51 |
| Ship width (cm) | 8.89 |
| HS code | 8536698000 |
| Country of Origin | US |
Product Details:
- Special Features: With Locking Cover
Documentation:
Product Variants
| Product | Model | Phase | Housing Color | Ip Rating | Shrouded | Flange Material | Wire Size | Color | Connectivity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL4716 | 1 | Black | IP20 | No | Stainless Steel | 18 AWG to 10 AWG | Black | Screw Terminals | €66.42 | |
 |
CS6375 | 1 | Silver | IP20 | No | Steel | #10 AWG to #6 AWG | Metallic | Pressure Terminal Screws | €223.08 | |
 |
HBL22CM428 | 3 | Silver | IP30 | No | Steel | #10 AWG to #6 AWG | Metallic | Back Wired Screw Terminals | €1,131.69 | |
 |
HBL2455 | 3 | White | IP20 | No | Steel | 16 AWG to 8 AWG | White | Back Wired Screw Terminals | €79.83 | |
 |
HBL2465 | 3 | White | IP20 | No | Steel | 16 AWG to 8 AWG | White | Back Wired Screw Terminals | €90.69 | |
 |
HBL2655 | 1 | White | IP20 | No | Nylon | 16 AWG to 8 AWG | White | Screw Terminals | €115.18 | |
 |
HBL2755 | 3 | White | IP20 | No | Nylon | 16 AWG to 8 AWG | White | Back Wired Screw Terminals | €135.39 |
