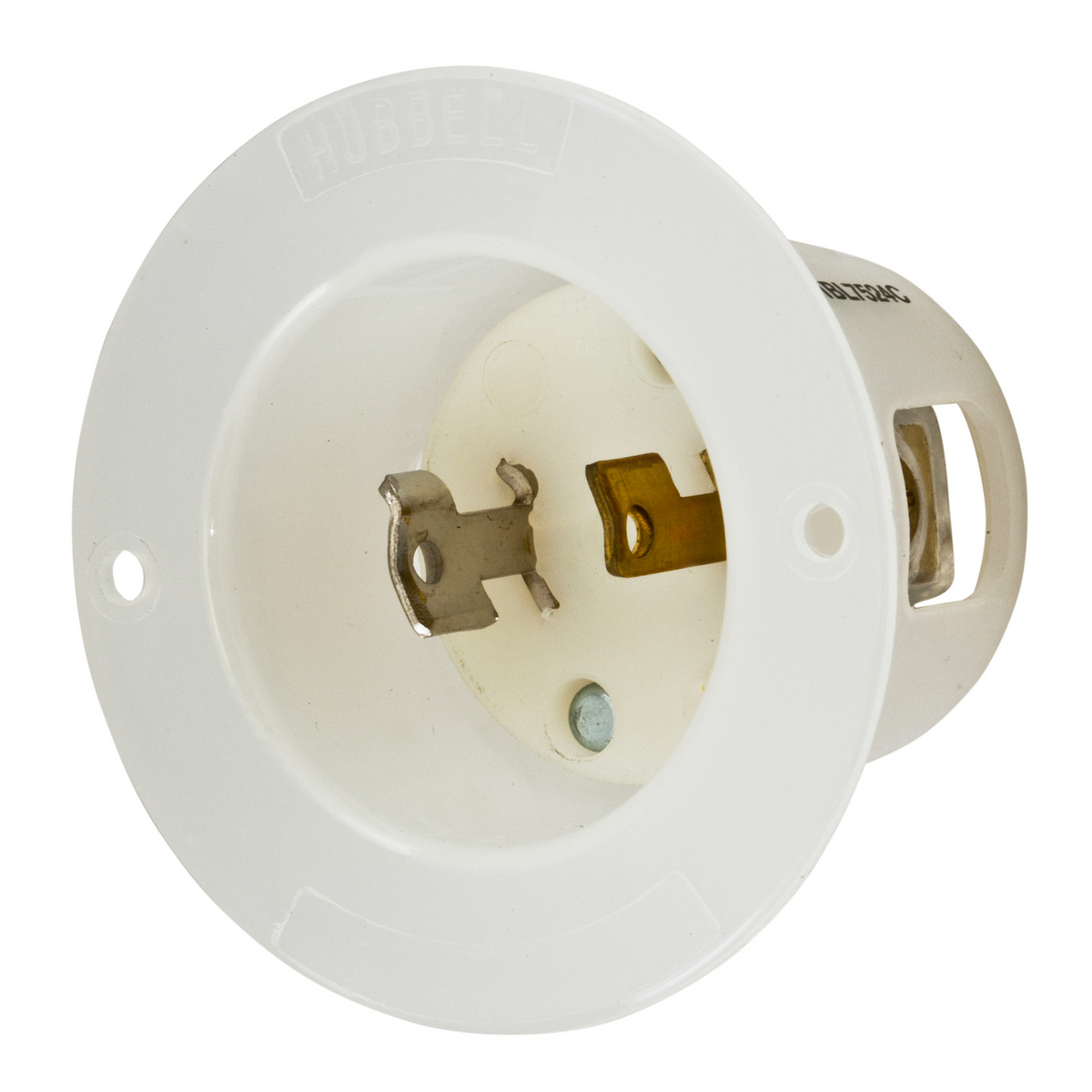

HUBBELL WIRING DEVICE-KELLEMS HBL7524C Flanged Inlet, 15A, 125V, 2-Pole, 2-Wire Non-Grounding, Screw Terminal, White
1875 W
White
NEMA L1-15P
Get it by Wednesday, Dec 17
€31.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flanged Inlet |
| Amps | 15A |
| Color | White |
| Connectivity | Screw Terminals |
| Dielectric Strength | Withstands 2,000V minimum |
| Height | 1 18/25" |
| Insulation | Insulated Body |
| Material | Nylon |
| Mounting | Screw Mounting |
| Nema Rating | NEMA L1-15P |
| Number Of Poles | 2 |
| Number Of Wires | 2 |
| Phase | 1 |
| Product Datasheet | hubbell-wiring-device-kellems-hbl7524c.pdf |
| Temp. Rating | Maximum Continuous: 75 Deg. C; Minimum Continuous:-40 Deg. C w/o impact,-25 Deg. with impact. |
| Voltage | 125V |
| Wattage | 1875 W |
| Width | 2 14/25" |
| Wire Size | 18 AWG to 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 4.37 |
| Ship length (cm) | 6.5 |
| Ship width (cm) | 6.5 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Number Of Wires | Phase | Current Rating | Voltage Rating | Housing Color | Ip Rating | Shrouded | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL4716 | 2 | 3 | 1 | 15A | 125V AC | Black | IP20 | No | €66.42 | |
 |
CS6375 | 3 | 4 | 1 | 50A | 125/250V AC | Silver | IP20 | No | €263.89 | |
 |
HBL22CM428 | 3 | 4 | 3 | 20/30A | 250V DC/600V AC | Silver | IP30 | No | €1,131.69 | |
 |
HBL2455 | 4 | 4 | 3 | 20A | 277/480V AC | White | IP20 | No | €79.83 | |
 |
HBL2465 | 4 | 4 | 3 | 20A | 347/600V AC | White | IP20 | No | €90.69 | |
 |
HBL2655 | 2 | 3 | 1 | 30A | 600V AC | White | IP20 | No | €115.18 | |
 |
HBL2755 | 4 | 4 | 3 | 30A | 120/208V AC | White | IP20 | No | €135.39 |
