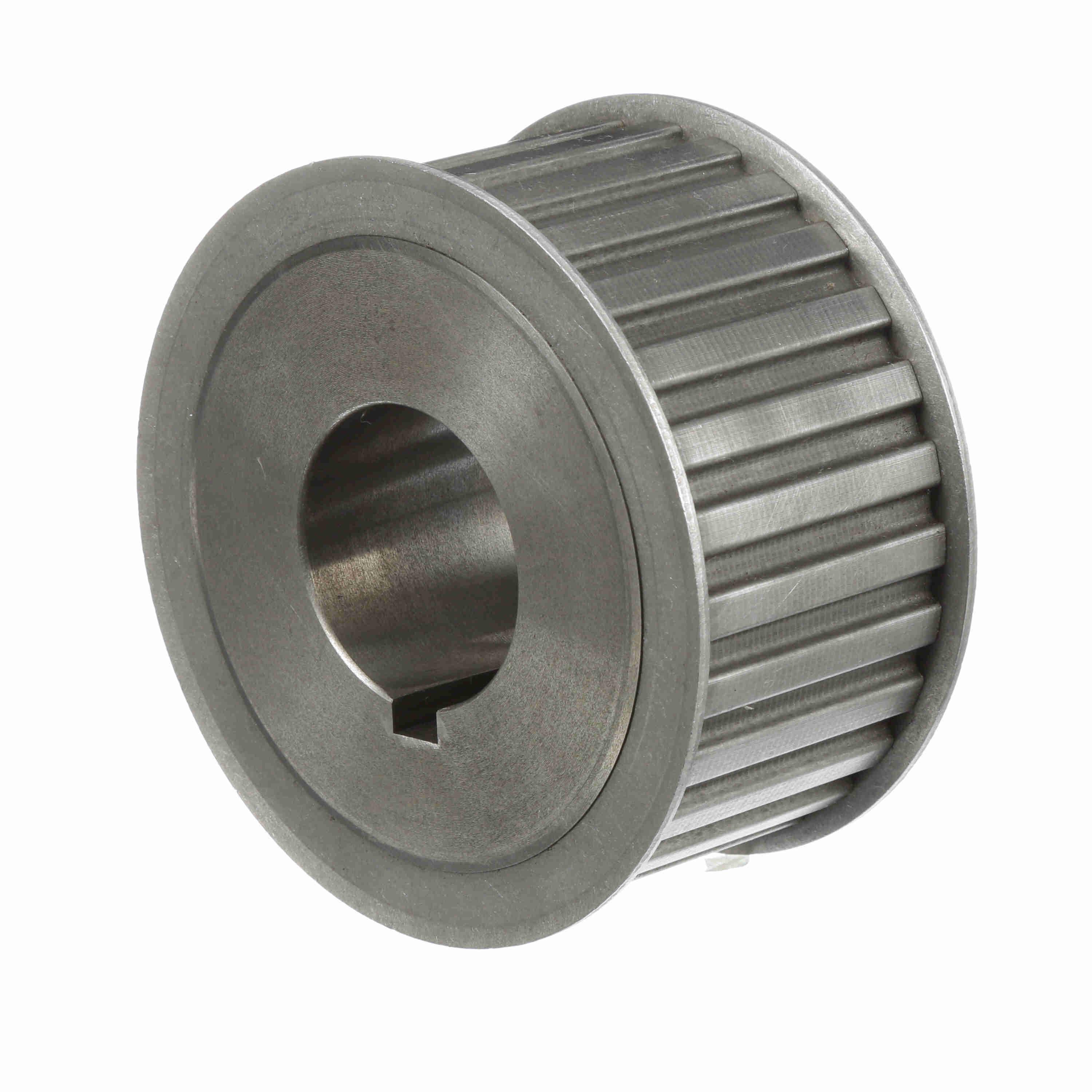

BROWNING 1057330 28HP200 Gearbelt Pulley, Bushed Bore, Steel
Item: AX4TLMModel: 1057330Cross Ref: 28HP200
7 In Stock
Ships within 2 days via
€506.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gearbelt Pulley |
| Belt Pitch | 1/2" |
| Belt Style | H |
| Bore Dia. | 3/4" to 1 3/4" |
| Bore Type | Split Taper |
| Bushing Type | P2 |
| Face Width | 2.344" |
| Flange | Yes |
| Flange Dia. | 4 11/16" |
| For Belt Width | 2" |
| For Use With | 2 Inch Width Type H200 Belt |
| Hub Dia. | 3" |
| Hub Projection | 5/8" |
| Keyway | Yes |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| Number Of Teeth | 28 |
| Other Features | Heavy, Split Taper Bushing, Type 6 |
| Outside Dia. | 4.402" |
| Overall Length | 3 3/16" |
| Pitch Dia. | 4.456" |
| System Of Measurement | Imperial |
| Type | Type 6 |
| Weight | 3.3 Kg |
Shipping Info:
| Ship weight (kg) | 3.47 |
| Ship height (cm) | 11.18 |
| Ship length (cm) | 8.1 |
| Ship width (cm) | 11.18 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Bore Dia. | Type | Hub Dia. | Hub Projection | Flange Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1057306 | 22 | 3.501" | 3.447" | 3/4" to 1 3/4" | Type 6 | 3" | 5/8" | 3 13/16" | €402.24 | |
 |
1057314 | 24 | 3.82" | 3.766" | 3/4" to 1 3/4" | Type 6 | 3" | 5/8" | 4.166667" | €435.95 | |
 |
1057322 | 26 | 4.138" | 4.084" | 3/4" to 1 3/4" | Type 6 | 3" | 5/8" | 4 3/8" | €489.73 | |
 |
1057389 | 44 | 7.003" | 6.949" | 3/4" to 2 11/16" | Type 11 | 4 1/8" | 7/32" | 7 1/4" | €513.31 | |
 |
1057397 | 48 | 7.639" | 7.585" | 3/4" to 2 11/16" | Type 11 | 4 1/8" | 0.219" | 7 7/8" | €575.56 | |
 |
1057439 | 96 | 15.279" | 15.225" | 1 1/8" to 3 3/4" | Type 14 | 5 3/8" | 0.734" | - | €1,234.92 | |
 |
1057363 | 36 | 5.73" | 5.676" | 3/4" to 2 11/16" | Type 11 | 4 1/8" | 0.219" | 6" | €508.05 |
