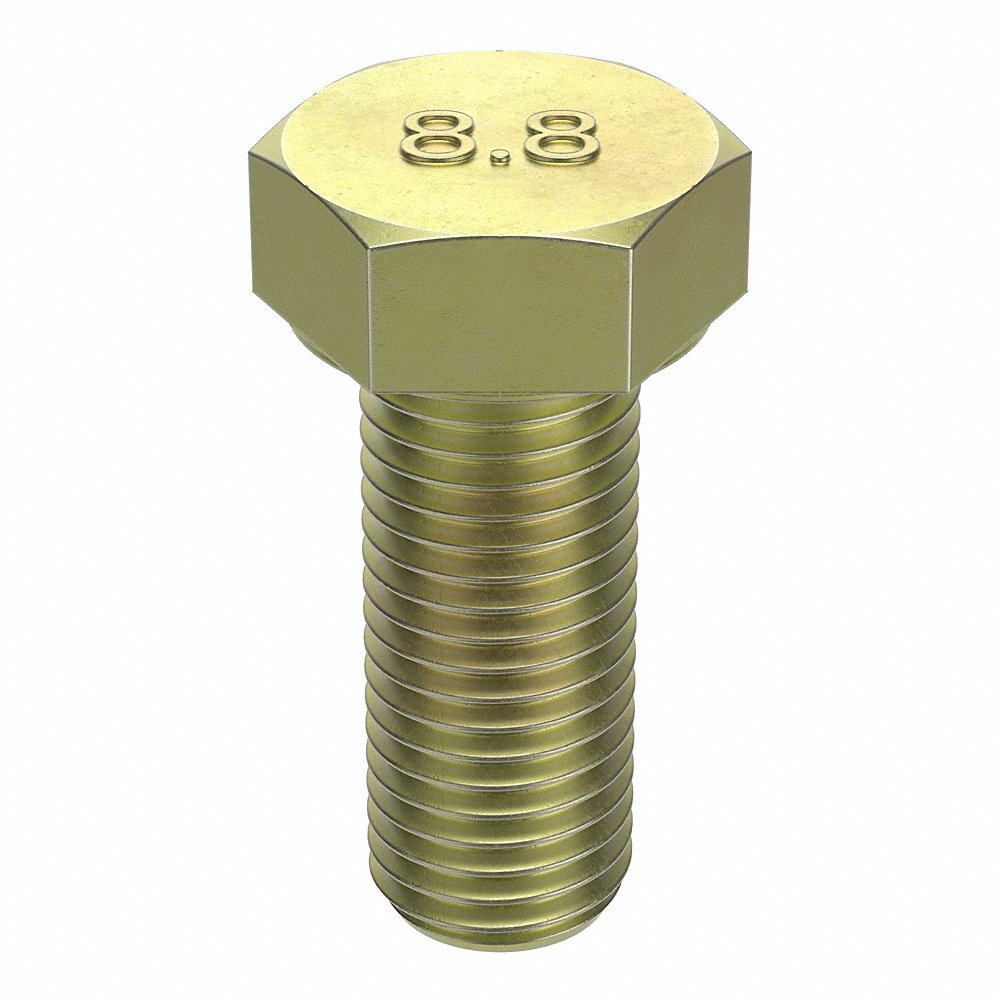

FABORY M01230.200.0040 Hex Head Cap Screw, M20x2.5 Thread Size, Steel, 40 mm Lg., 12.5 mm Head Ht.
Item: CG8CQXModel: M01230.200.0040Cross Ref: 38CN38
7 In Stock
40 mm
Ships within 2 days via
5.00% off
€71.86 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hex Head Cap Screw |
| Class | Class 8.8 |
| Drive | Hex |
| Fastener Length | 40 mm |
| Finish | Zinc Yellow |
| Grade | Non Graded |
| Hardness | Rockwell C23 |
| Head Height | 12.5 mm |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 30 mm |
| Hex Head Cap Screw Type | Hex Head Cap Screw |
| Length | 40 mm |
| Material | Steel |
| Material Grade/class | Class 8.8 |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Min. Thread Length | 40 mm |
| Overall Length | 40 mm |
| Rockwell Hardness | Hrc23 |
| Standard | DIN 933, ISO 4017 |
| System Of Measurement | Metric |
| Tensile Strength | 120350 psi |
| Thread Direction | Right Hand |
| Thread Length | 40 mm |
| Thread Size | M20 x 2.5 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 1.54 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | Varies |
Product Variants
| Model | Thread Style | Thread Length | Fastener Length | Min. Thread Length | Head Height | Head Width | Thread Direction | Material Grade/class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M01220.200.0065 | Partially Threaded | 46 mm | 65 mm | 46 mm | 12.5 mm | 30 mm | Right Hand | Class 8.8 | 10 | €54.12 | |
| M01220.200.0070 | Partially Threaded | 46 mm | 70 mm | 46 mm | 12.5 mm | 30 mm | Right Hand | Class 8.8 | 10 | €97.52 | |
| M01220.200.0080 | Partially Threaded | 46 mm | 80 mm | 46 mm | 12.5 mm | 30 mm | Right Hand | Class 8.8 | 10 | €113.22 | |
| M01220.200.0090 | Partially Threaded | 46 mm | 90 mm | 46 mm | 12.5 mm | 30 mm | Right Hand | Class 8.8 | 10 | €66.16 | |
| M01220.200.0100 | Partially Threaded | 46 mm | 100 mm | 46 mm | 12.5 mm | 30 mm | Right Hand | Class 8.8 | 10 | €126.38 | |
| M01220.200.0110 | Partially Threaded | 46 mm | 110 mm | 46 mm | 12.5 mm | 30 mm | Right Hand | Class 8.8 | 10 | €146.79 | |
| M01220.200.0120 | Partially Threaded | 46 mm | - | - | 12.5 mm | 30 mm | Right Hand | - | 10 | €79.20 |
