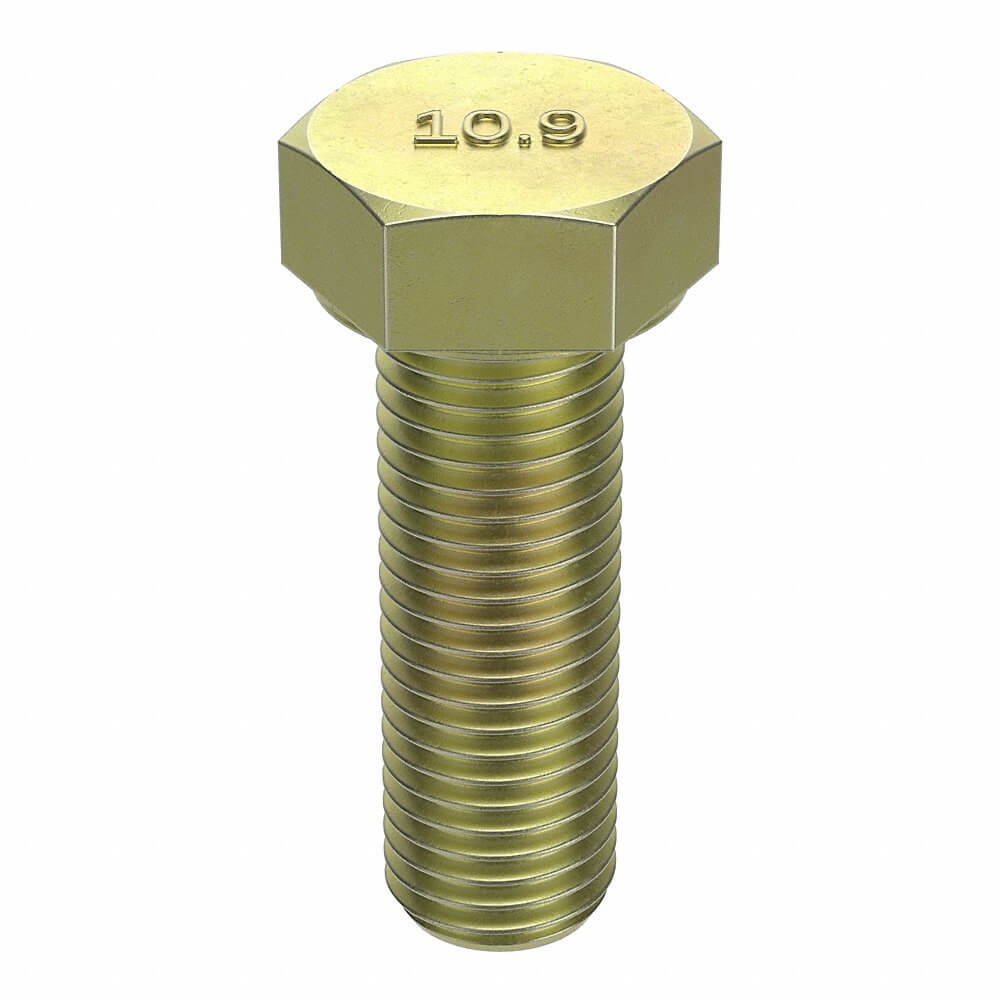

FABORY M04114.200.0070 Hex Head Cap Screw, M20x2.5 Thread Size, Steel, 70mm Lg., 12.5mm Head Ht., Rockwell C32 Hardness
Item: CG8DHEModel: M04114.200.0070Cross Ref: 38CU29
7 In Stock
70 mm
Ships within 2 days via
5.00% off
€49.60 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hex Head Cap Screw |
| Class | Class 10.9 |
| Finish | Yellow Zinc Plated |
| Grade | Non Graded |
| Hardness | Rockwell C32 |
| Head Height | 12.5 mm |
| Head Type | Hex |
| Head Width | 30 mm |
| Length | 70 mm |
| Material | Steel |
| Min. Thread Length | 70 mm |
| Standard | DIN 933 |
| System Of Measurement | Metric |
| Tensile Strength | 150800 psi |
| Thread Direction | Right Hand |
| Thread Length | 70 mm |
| Thread Size | M20 x 2.5 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 2.15 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | Varies |
Product Variants
| Product | Model | Thread Style | Thread Length | Fastener Length | Min. Thread Length | Head Height | Head Width | Thread Direction | Material Grade/class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M04104.200.0070 | Partially Threaded | 46 mm | 70 mm | 46 mm | 12.5 mm | 30 mm | Right Hand | Class 10.9 | 10 | €44.52 | |
|
M04104.200.0080 | Partially Threaded | 46 mm | 80 mm | 46 mm | 12.5 mm | 30 mm | Right Hand | Class 10.9 | 10 | €48.45 | |
|
M04104.200.0090 | Partially Threaded | 46 mm | 90 mm | 46 mm | 12.5 mm | 30 mm | Right Hand | Class 10.9 | 10 | €69.20 | |
|
M04104.200.0100 | Partially Threaded | 46 mm | 100 mm | 46 mm | 12.5 mm | 30 mm | Right Hand | Class 10.9 | 10 | €59.92 | |
|
M04104.200.0110 | Partially Threaded | 46 mm | 110 mm | 46 mm | 12.5 mm | 30 mm | Right Hand | Class 10.9 | 10 | €105.59 | |
 |
M04104.200.0120 | Partially Threaded | 46 mm | 120 mm | 46 mm | 12.5 mm | 30 mm | Right Hand | Class 10.9 | 10 | €70.70 | |
 |
M04114.200.0040 | Fully Threaded | 40 mm | 40 mm | 40 mm | 12.5 mm | 30 mm | Right Hand | Class 10.9 | 10 | €33.87 |
