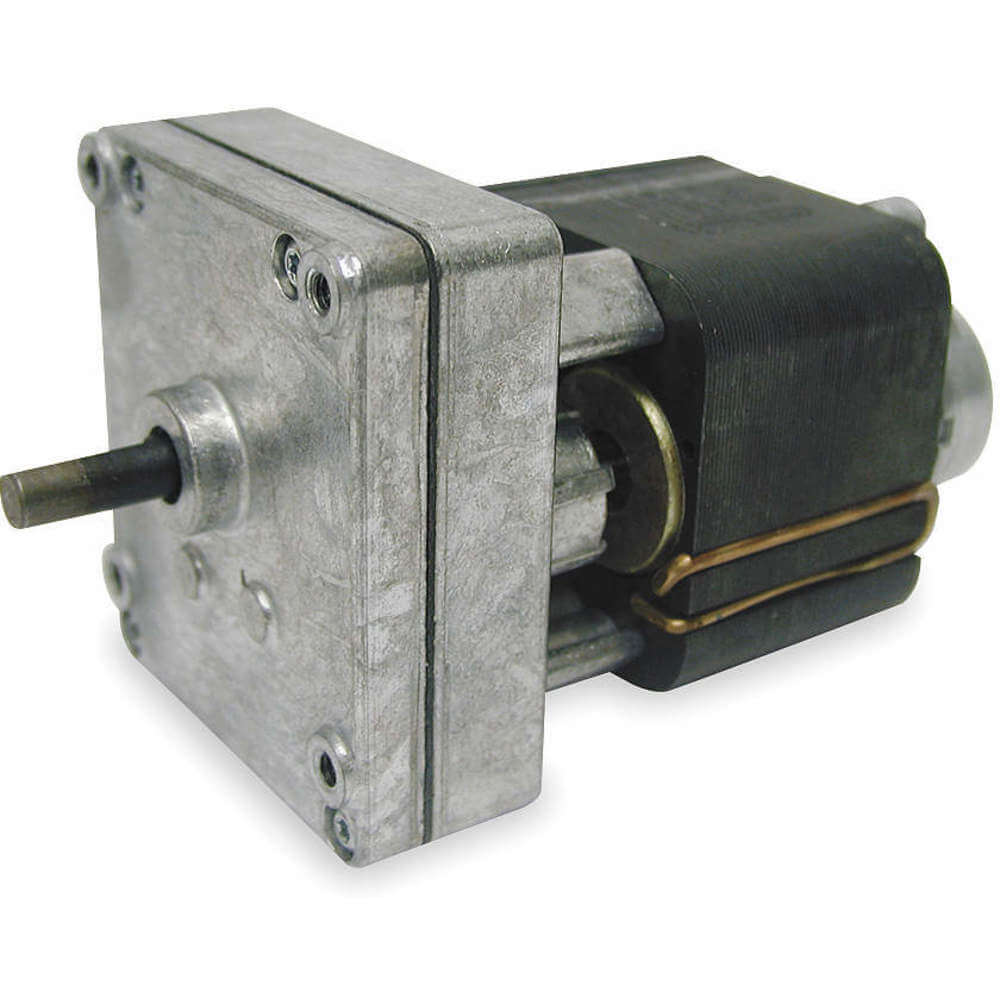

DAYTON 1MBG4 Ac Gearmotor 6.7 Rpm Open 115v
Item: AB2JEHModel: 1MBG4
7 In Stock
6.7 RPM
9/1000 hp
Ships within 2 days via
10.00% off
€138.50 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | AC Gearmotor |
| Amps | 0.62A |
| Application | Amusement Devices, Conveyor Toasters, Displays, Food And Restaurant Equipment, Ingredient Motors, Pumps, Security Systems, Valve Actuators, Vending, Water Softeners, X-Ray Equipment |
| Base To Center Of Shaft | 1.41" |
| Bearing Type | Ball And Porous Bronze On Motor, Needle On Case |
| Dimension A | 4 1/5" |
| Dimension B | 1.57" |
| Enclosure Type | Open |
| Frequency | 50/60 Hz |
| Full Load Amps | 0.62A |
| Gear Case Material | Die Cast Zinc |
| Gear Ratio | 504:1 |
| Gear Type | Spur |
| Gearmotor Enclosure | Open |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Shaft Orientation | Parallel |
| Gearmotor Shaft Type | Single |
| Gears | All Spur Gears |
| Housing Material | Die Cast Zinc |
| Includes | Cooling Fan, Spring Clip |
| Input Horsepower | 8/889 hp |
| Input Hp | 9/1000 hp |
| Length Less Shaft | 4 3/4" |
| Lubrication | Grease Filled |
| Max. Ambient Temp. | 40°C |
| Maximum Ambient Temperature | 104°F |
| Maximum Torque | 50 lbs.-in. |
| Motor Enclosure | Open Air Over |
| Motor Insulation Class | Class A |
| Motor Type | Shaded Pole |
| Mount Hole Center-to-center Length | 2.38" |
| Mount Hole Center-to-center Width | 2.38" |
| Mount Type | Any Position |
| Mounting | All Position |
| Mounting Orientation | Any Angle |
| Nameplate Rpm | 6.7 RPM |
| Nameplate Rpm Range | 0-15 RPM |
| No Load Rpm | 7 RPM |
| No. Of Output Shafts | 1 |
| Number Of Output Shafts | 1 |
| Operating Voltage | 115V AC |
| Output Shaft Dia. | 5/16" |
| Output Shaft Diameter | 5/16" |
| Output Shaft Height | 1.41" |
| Output Shaft Length | 3/4" |
| Overall Height | 2 23/25" |
| Overall Width | 3 4/25" |
| Overhung Load | 41 lbs. |
| Overhung Load Capacity | 41 lbs.-ft. |
| Phase | 1 |
| Rotation | CW |
| Rpm Range | 0-15 RPM |
| Seal Type | Gasketed Gear Case |
| Seals | Gasketed Gear Case |
| Shaft Orientation | Parallel |
| Standards | Ul Recognized |
| Thermal Protection | Auto |
| Type | Shaded Pole |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 11.18 |
| Ship length (cm) | 23.62 |
| Ship width (cm) | 16.26 |
| HS code | 8501104020 |
| Country of Origin | MX |
Product Variants
| Model | Mounting Orientation | Operating Voltage | Gear Ratio | Overhung Load Capacity | Rotation | Base To Center Of Shaft | Nameplate Rpm Range | Brake Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1LNF7 | Any Angle | 115V AC | 762:1 | 56 lbs.-ft. | CW | 1.38" | 0-15 RPM | - | €141.41 | |
| 1LNF8 | Any Angle | 115V AC | 529:1 | 65 lbs.-ft. | CW | 1.38" | 0-15 RPM | - | €158.33 | |
| 1LNF9 | Any Angle | 115V AC | 126:1 | 15 lbs.-ft. | CW | 1.38" | 16-30 RPM | - | €168.16 | |
| 1LNG1 | Any Angle | 115V AC | 63:1 | - | - | - | 51-75 RPM | - | €168.03 | |
| 1LNG2 | Any Angle | 115V AC | 63:1 | 10 lbs.-ft. | CW | 1.38" | 0-15 RPM | - | €151.07 | |
| 1MBF3 | Any Angle | 115V AC | 3231:1 | 41 lbs.-ft. | CW | 1.41" | 0-15 RPM | - | €136.13 | |
| 1MBF4 | Any Angle | 115V AC | 1526:1 | 41 lbs.-ft. | CW | 1.41" | 0-15 RPM | - | €142.00 |
