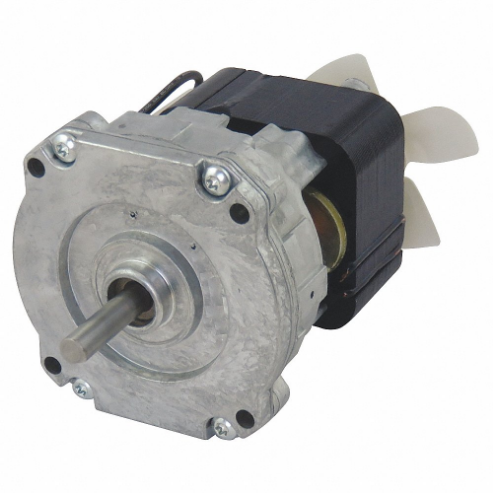

DAYTON 52JD97 AC Gearmotor, Nameplate RPM 10, Max. Torque 100 Inch-Lbs., Enclosure Open
Item: CD2YUYModel: 52JD97
7 In Stock
10 RPM
167/1000 hp
Ships within 2 days via
5.00% off
€177.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | AC Gearmotor |
| Amps | 1.9A |
| Bearing Type | Sintered Bronze Sleeve |
| Capacitor Required | No |
| Enclosure Type | Open |
| Finish | Unpainted |
| Full Load Amps | 1.9A |
| Gear Case Material | Die Cast Zinc |
| Gear Material | Sintered Steel |
| Gear Ratio | 294:1 |
| Gear Type | Spur |
| Gearmotor Enclosure | Open |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Shaft Orientation | Parallel |
| Gearmotor Shaft Type | Single |
| Gears | Spur |
| Housing Material | Die Cast Zinc |
| Input Hp | 167/1000 hp |
| Length Less Shaft | 4.78" |
| Lubrication | Grease Filled |
| Max. Ambient Temp. | 40°C |
| Max. Torque | 65 lbs.-in. |
| Motor Shaft Design | Flat |
| Mount Hole Center To Center Length | 2.38" |
| Mount Hole Center To Center Width | 2.38" |
| Mounting Orientation | All Angle |
| Mounting Type | Any Position |
| Nameplate Speed | 0-15 RPM , 10 RPM |
| No Load Speed | 12 RPM |
| No. Of Brake Discs Required | 0 |
| No. Of Output Shafts | 1 |
| Number Of Brake Discs Required | 0 |
| Operating Voltage | 115V AC |
| Output Shaft Dia. | 3/8" |
| Output Shaft Height | 4.63" |
| Output Shaft Length | 1" |
| Overall Height | 3 1/4" |
| Overall Length | 6.02" |
| Overall Width | 3 1/4" |
| Overhung Load | 30 lbs. |
| Phase | 1 |
| Reversible Shaft Output | No |
| Service Factor | 1 |
| Shaft | Single Output |
| Shaft Dia. | 3/8" |
| Shaft Length | 1" |
| Shaft Orientation | Parallel |
| Shaft Type | Single |
| Thermal Protection | Auto |
| Type | AC Gearmotor , Shaded Pole |
Shipping Info:
| Ship weight (kg) | 1.94 |
| Ship height (cm) | 8.26 |
| Ship length (cm) | 15.28 |
| Ship width (cm) | 8.26 |
| Country of Origin | MX |
Product Variants
| Model | Mounting Orientation | Output Shaft Dia. | Mounting Type | Overall Height | Nameplate Speed | Full Load Amps | Operating Voltage | Max. Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1LNF7 | Any Angle | 3/8" | Any Position | 5 11/25" | 4 RPM | 0.7A | 115V AC | 130 lbs.-in. | €147.72 | |
| 1LNF8 | Any Angle | 3/8" | Any Position | 5 11/25" | 6 RPM | 1.3A | 115V AC | 150 lbs.-in. | €164.17 | |
| 1LNF9 | Any Angle | 3/8" | Any Position | 5 11/25" | 26 RPM | 1A | 115V AC | 45 lbs.-in. | €209.52 | |
| 1LNG1 | Any Angle | 3/8" | Any Position | 5 11/25" | 51-75 RPM | 1.3A | 115V AC | 25 lbs.-in. | €185.60 | |
| 1LNG2 | Any Angle | 3/8" | Any Position | 5 11/25" | 1 RPM | 1.3A | 115V AC | 100 lbs.-in. | €179.78 | |
| 1MBF3 | Any Angle | 5/16" | Any Position | 2 23/25" | 1.1 RPM | 0.38A | 115V AC | 50 lbs.-in. | €210.08 | |
| 1MBF4 | Any Angle | 5/16" | Any Position | 2 23/25" | 2.2 RPM | 0.38A | 115V AC | 32 lbs.-in. | €164.50 |
