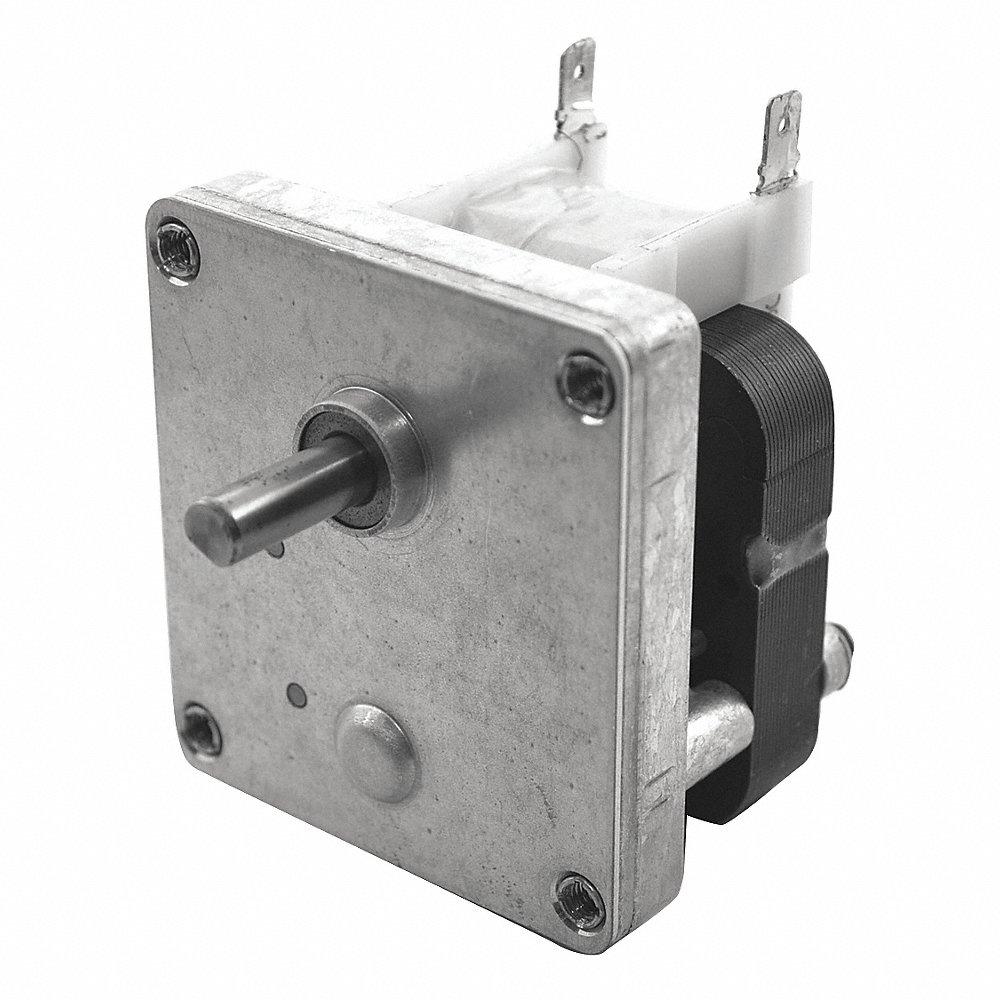

DAYTON 52JE25 AC Gearmotor, 21 RPM, 9.3 Inch lbs. Max. Torque, Single, CW
Item: CH9NFKModel: 52JE25
7 In Stock
21 RPM
1/10 hp
Ships within 2 days via
10.00% off
€77.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | AC Gearmotor |
| Application | Agriculture, Amusement Devices, Controls, Conveyors, Dvd Kiosks, Food And Restaurant Equipment, Ice Dispensing, Industrial Machinery, Ingredient Motors, Mail Sorting, Packaging, Pellet And Corn Stoves, Power Transmission, Printing Press, Pumps, Security Systems, Ticket Dispensing, Valve Actuators, Vending, Water Softeners, X-Ray Equipment |
| Base To Center Of Shaft | 23/25" |
| Bearing Type | Sintered Bronze Sleeve |
| Capacitor Required | No |
| Enclosure Type | Open |
| Frequency | 50 Hz |
| Full Load Current | 0.25A |
| Gear Material | Sintered Steel |
| Gear Ratio | 114.3:1 |
| Gear Type | Spur |
| Gearmotor Enclosure | Open |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Shaft Orientation | Parallel |
| Housing Material | Die Cast Zinc |
| Housing Material Finish | Unpainted |
| Input Horsepower | 0.1 hp |
| Input Hp | 1/10 hp , 1/100 hp |
| Length Less Shaft | 2.38" |
| Lubrication | Grease Filled |
| Maximum Ambient Temperature | 104°F |
| Maximum Torque | 9.3 lbs.-in. |
| Motor Enclosure | Open Air Over |
| Motor Insulation Class | Class A |
| Motor Shaft Design | Flat |
| Motor Type | Shaded Pole |
| Mount Hole Center-to-center Length | 2 1/2" |
| Mount Hole Center-to-center Width | 2.38" |
| Mount Type | Any Position |
| Mounting Orientation | Any Angle |
| Nameplate Speed | 21 RPM |
| No Load Speed | 28 RPM |
| Number Of Brake Discs Required | 0 |
| Number Of Output Shafts | 1 |
| Operating Voltage | 230V AC |
| Output Shaft Dia. | 5/16" |
| Output Shaft Height | 23/25" |
| Output Shaft Length | 1" |
| Overall Height | 3" |
| Overall Length | 3.38" |
| Overall Width | 2 3/4" |
| Overhung Load Capacity | 30 lbs.-ft. |
| Phase | Single |
| Reversible Shaft Output | No |
| Rotation | CW |
| Service Factor | 1 |
| Shaft | Single Output |
| Shaft Dia. | 5/16" |
| Shaft Length | 1" |
| Shaft Orientation | Parallel |
| Standards | Ul Recognized |
| Starting Torque | 6.8 lbs.-in. |
| Thermal Protection | Impedance |
| Type | Shaded Pole |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 8.57 |
| Ship width (cm) | 6.99 |
| Country of Origin | MX |
Product Variants
| Model | Mounting Orientation | Operating Voltage | Gear Ratio | Overhung Load Capacity | Rotation | Base To Center Of Shaft | Nameplate Rpm Range | Brake Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1LNF7 | Any Angle | 115V AC | 762:1 | 56 lbs.-ft. | CW | 1.38" | 0-15 RPM | - | €141.41 | |
| 1LNF8 | Any Angle | 115V AC | 529:1 | 65 lbs.-ft. | CW | 1.38" | 0-15 RPM | - | €158.33 | |
| 1LNF9 | Any Angle | 115V AC | 126:1 | 15 lbs.-ft. | CW | 1.38" | 16-30 RPM | - | €168.16 | |
| 1LNG1 | Any Angle | 115V AC | 63:1 | - | - | - | 51-75 RPM | - | €168.03 | |
| 1LNG2 | Any Angle | 115V AC | 63:1 | 10 lbs.-ft. | CW | 1.38" | 0-15 RPM | - | €151.07 | |
| 1MBF3 | Any Angle | 115V AC | 3231:1 | 41 lbs.-ft. | CW | 1.41" | 0-15 RPM | - | €136.13 | |
| 1MBF4 | Any Angle | 115V AC | 1526:1 | 41 lbs.-ft. | CW | 1.41" | 0-15 RPM | - | €142.00 |
