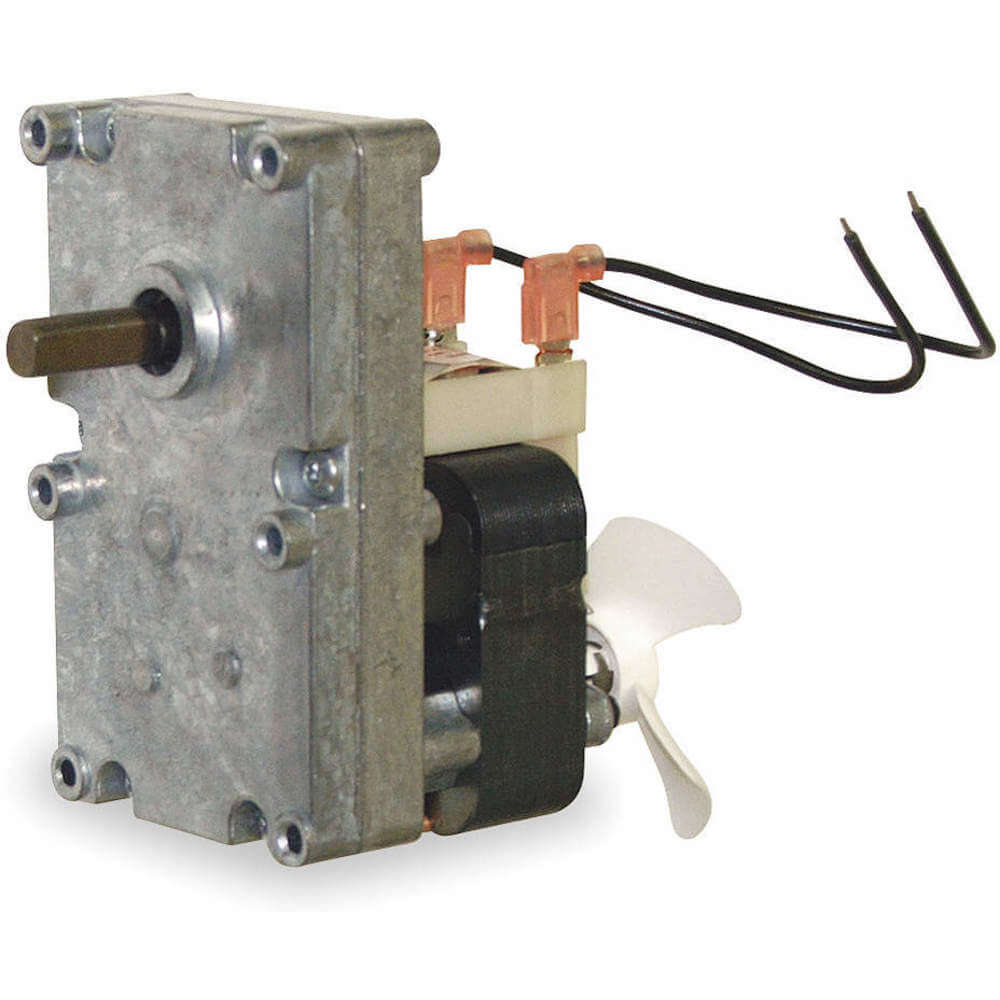

DAYTON 1LNF7 Ac Gearmotor 4 Rpm Open 115v
Item: AB2EMYModel: 1LNF7
7 In Stock
4 RPM
13/1000 hp
Ships within 2 days via
10.00% off
€127.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | AC Gearmotor |
| Amps | 0.7A |
| Application | Amusement Devices, Conveyor Toasters, Displays, Food And Restaurant Equipment, Ingredient Motors, Pumps, Security Systems, Valve Actuators, Vending, Water Softeners, X-Ray Equipment |
| Base To Center Of Shaft | 1.38" |
| Bearing Type | Needle On Cover, Porous Sleeve On Motor |
| Dimension L | 3.62" |
| Enclosure Type | Open |
| Frequency | 50/60 Hz |
| Full Load Amps | 0.7A |
| Gear Case Material | Die Cast Zinc |
| Gear Material | Sintered Steel |
| Gear Ratio | 762:1 |
| Gear Type | Spur |
| Gearmotor Enclosure | Open |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Shaft Orientation | Parallel |
| Gearmotor Shaft Type | Single |
| Gears | Spur, Sintered Steel |
| Housing Material | Die Cast Zinc |
| Input Horsepower | 0.013 hp |
| Input Hp | 13/1000 hp |
| Length Less Shaft | 4 1/4" |
| Lubrication | Grease Filled |
| Maximum Torque | 130 lbs.-in. |
| Motor Enclosure | Open Air Over |
| Motor Insulation Class | Class A |
| Motor Type | Shaded Pole |
| Mount Hole Center-to-center Length | 3 19/25" |
| Mount Hole Center-to-center Width | 2.38" |
| Mount Type | Any Position |
| Mounting | All Position |
| Mounting Orientation | Any Angle |
| Nameplate Rpm | 4 RPM |
| Nameplate Rpm Range | 0-15 RPM |
| No. Of Output Shafts | 1 |
| Number Of Output Shafts | 1 |
| Operating Voltage | 115V AC |
| Output Shaft Dia. | 3/8" |
| Output Shaft Diameter | 3/8" |
| Output Shaft Height | 1.38" |
| Output Shaft Length | 1" |
| Overall Height | 5 11/25" |
| Overall Length | 1 7/25" |
| Overall Width | 2 3/4" |
| Overhung Load | 56 lbs. |
| Overhung Load Capacity | 56 lbs.-ft. |
| Phase | 1 |
| Rotation | CW |
| Rpm @ 50 Hz | 3.3 RPM |
| Rpm @ 50 Hz | 3.3 |
| Rpm Range | 0-15 RPM |
| Shaft Dia. | 3/8" |
| Shaft Length | 1" |
| Shaft Orientation | Parallel |
| Standards | Ul Recognized |
| Thermal Protection | Auto |
| Type | Shaded Pole |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 11.18 |
| Ship length (cm) | 23.62 |
| Ship width (cm) | 16.26 |
| HS code | 8501104020 |
| Country of Origin | MX |
Product Variants
| Model | Mounting Orientation | Operating Voltage | Gear Ratio | Overhung Load Capacity | Rotation | Base To Center Of Shaft | Nameplate Rpm Range | Brake Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1LNF8 | Any Angle | 115V AC | 529:1 | 65 lbs.-ft. | CW | 1.38" | 0-15 RPM | - | €158.33 | |
| 1LNF9 | Any Angle | 115V AC | 126:1 | 15 lbs.-ft. | CW | 1.38" | 16-30 RPM | - | €168.16 | |
| 1LNG1 | Any Angle | 115V AC | 63:1 | - | - | - | 51-75 RPM | - | €168.03 | |
| 1LNG2 | Any Angle | 115V AC | 63:1 | 10 lbs.-ft. | CW | 1.38" | 0-15 RPM | - | €151.07 | |

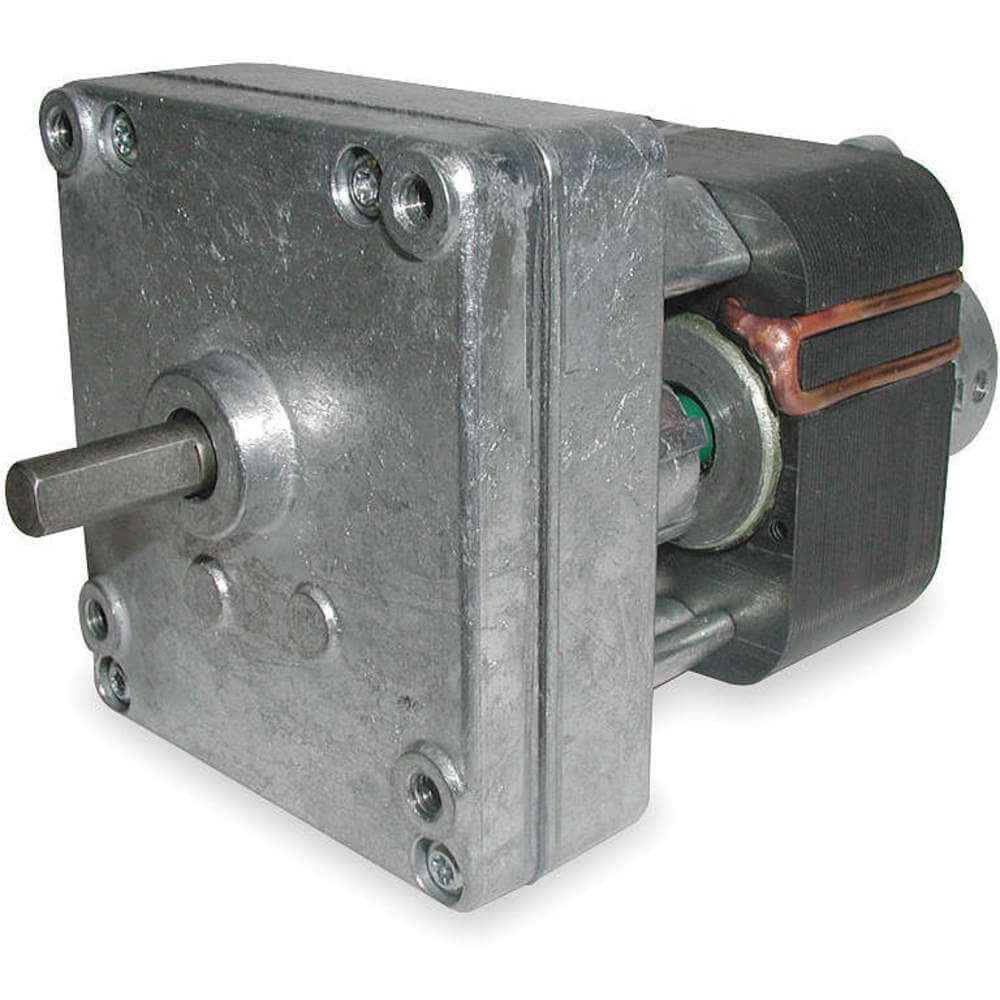

| 1MBF3 | Any Angle | 115V AC | 3231:1 | 41 lbs.-ft. | CW | 1.41" | 0-15 RPM | - | €136.13 | |
| 1MBF4 | Any Angle | 115V AC | 1526:1 | 41 lbs.-ft. | CW | 1.41" | 0-15 RPM | - | €142.00 | |
| 1MBF5 | Any Angle | 115V AC | 504:1 | 41 lbs.-ft. | CW | 1.41" | 0-15 RPM | - | €135.14 |
