BUSSMANN HM60030-2PR Fuse Block 30A For 600V NOS Fuses 2-Poles
Item: AH9MZMModel: HM60030-2PRCross Ref: 40LH30
7 In Stock
Ships within 2 days via
10.00% off
€99.82 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse Block |
| Ac Voltage Rating | 600V AC |
| Amp Range | 0-30A |
| Body Material | Thermoplastic |
| Compatible Fuse Series | HM60030 Series |
| Connector Type | Pressure Plate |
| Dc Voltage | Not Rated |
| Fits Fuse Type | Industrial |
| For Fuse Size | 5" x 13/16" Dia. |
| For Use | NOS |
| For Use With | NOS |
| Fuse Block Design | Open |
| Fuse Block Style | Nonrejection |
| Fuse Current | 0-30A |
| Fuse Overall Diameter | 13/16" |
| Fuse Overall Length | 7" |
| Fuse Ul Class | Class H, Class K5 |
| Height | 2.3" |
| Housing Material | Thermoplastic |
| Length | 7" |
| Material | Thermoplastic |
| Mounting Style | Bolt-Down, Din Rail |
| Mounting Type | Bolt Down, DIN Rail |
| Number Of Poles | 2 |
| Operating Amps | 0-30A |
| Spring Reinforced Clip | Yes |
| Standards | Ce, Csa Certified, Reach, Rohs, Ul Listed |
| Type | Fuse Block |
| Visual Indication | Non Indicating |
| Voltage | 600V AC |
| Voltage Rating | 600V AC |
| Width | 2 2/5" |
| Wire Range | 18 AWG to 10 AWG |
| Wire Size | 10 AWG to 18 AWG |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 4.57 |
| Ship length (cm) | 16 |
| Ship width (cm) | 5.84 |
| Country of Origin | MX |
Product Details:
- Fuse Type : Industrial
Product Variants
| Product | Model | Number Of Poles | Connector Type | Amp Range | Fuse Block Style | Voltage Rating | Height | Voltage | Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

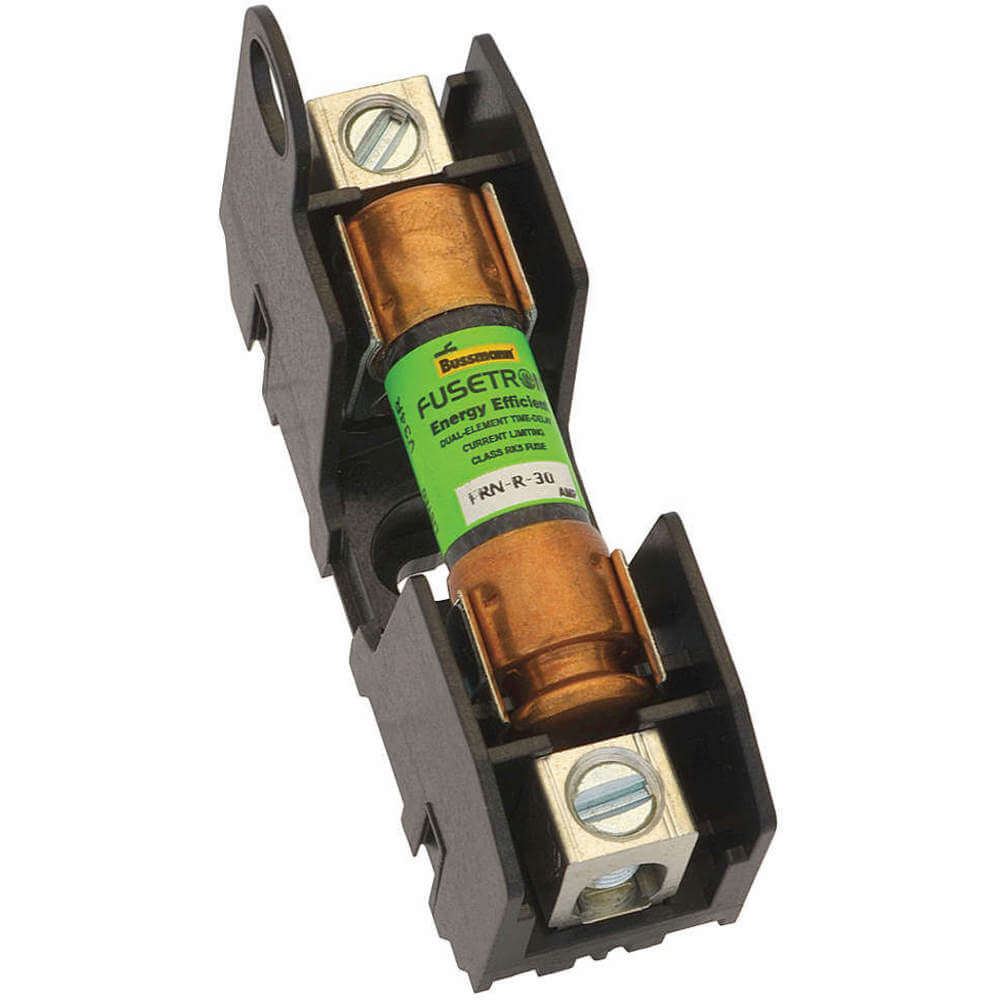

HM25030-1CR | 1 | Box Lug | 0-30A | Nonrejection | 250V AC/125V DC | 2" | 250V AC/125V DC | 2 AWG to 14 AWG | €73.23 | |
 |
HM60060-1CR | 1 | Box Lug | 31-60A | Nonrejection | 600V AC | 2 3/5" | 600V AC | 2 AWG to 14 AWG | €125.70 | |
|
HM25030-2SR | 2 | Screw | 0-30A | Nonrejection | 250V AC/125V DC | 2" | 250V AC/125V DC | 10 AWG to 18 AWG | €50.33 | |
 |

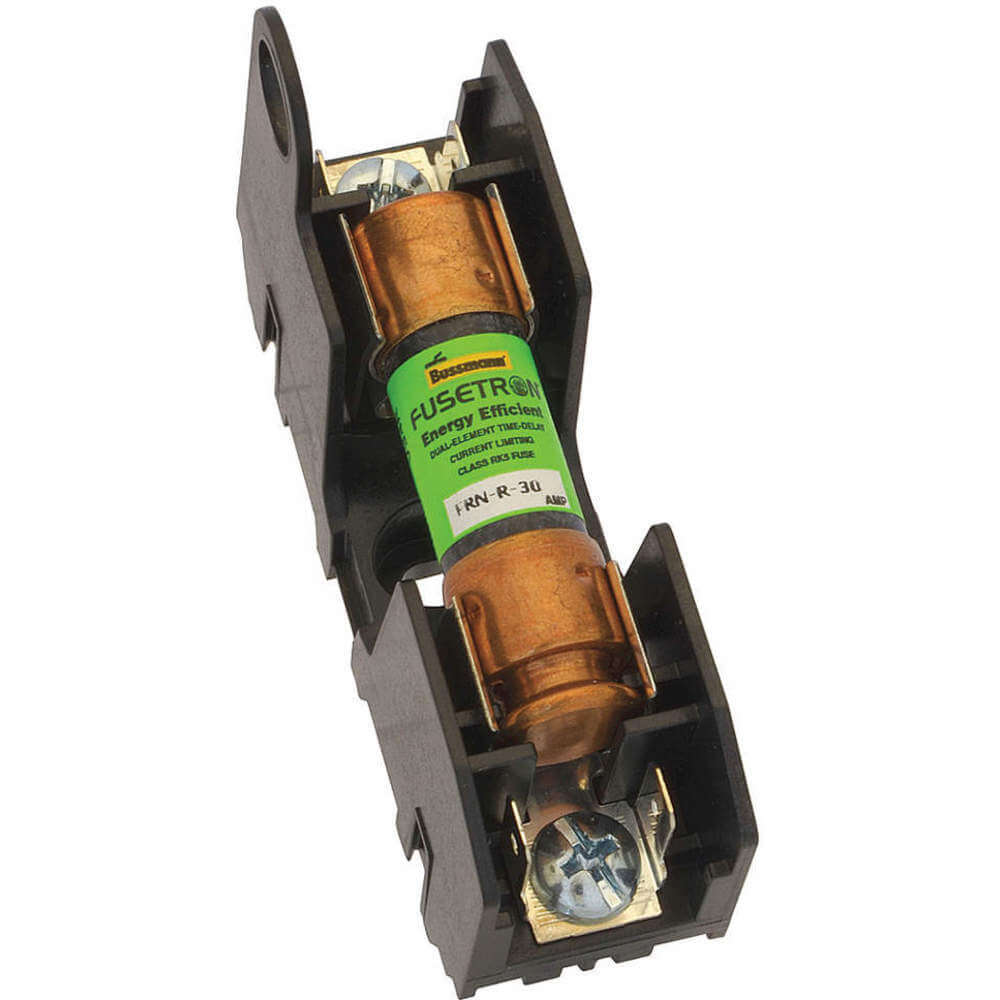

HM25030-1QR | 1 | Screw With Quick Connect | 0-30A | Nonrejection | 250V AC/125V DC | 2" | 250V AC/125V DC | 10 AWG to 18 AWG | €29.81 | |
|
HM60030-1PR | 1 | Pressure Plate | 0-30A | Nonrejection | 600V AC | 2.3" | 600V AC | 10 AWG to 18 AWG | €70.70 | |
|
HM25030-2PR | 2 | Pressure Plate | 0-30A | Nonrejection | 250V AC/125V DC | 2" | 250V AC/125V DC | 10 AWG to 18 AWG | €65.34 | |
 |
HM60030-3CR | 3 | Box Lug | 0-30A | Nonrejection | 600V AC | 2.3" | 600V AC | 2 AWG to 14 AWG | €227.93 |
