BUSSMANN Class H Modular Ferrule Fuse Blocks
Filter
A
B
C
D
E
F
G
H
I| Style | Model | Number Of Poles | Connector Type | Amp Range | Fuse Block Style | Voltage Rating | Height | Voltage | Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | HM25030-1CR | 1 | Box Lug | 0-30A | Nonrejection | 250V AC/125V DC | 2" | 250V AC/125V DC | 2 AWG to 14 AWG | €73.23 | |
| A | HM25030-1SR | 1 | Screw | 0-30A | Nonrejection | 250V AC/125V DC | 2" | 250V AC/125V DC | 10 AWG to 18 AWG | €36.26 | |
| A | HM25030-1PR | 1 | Pressure Plate | 0-30A | Nonrejection | 250V AC/125V DC | 2" | 250V AC/125V DC | 10 AWG to 18 AWG | €37.46 | |
| B | HM60030-1SR | 1 | Screw | 0-30A | Nonrejection | 600V AC | 2.3" | 600V AC | 10 AWG to 18 AWG | €70.70 | |

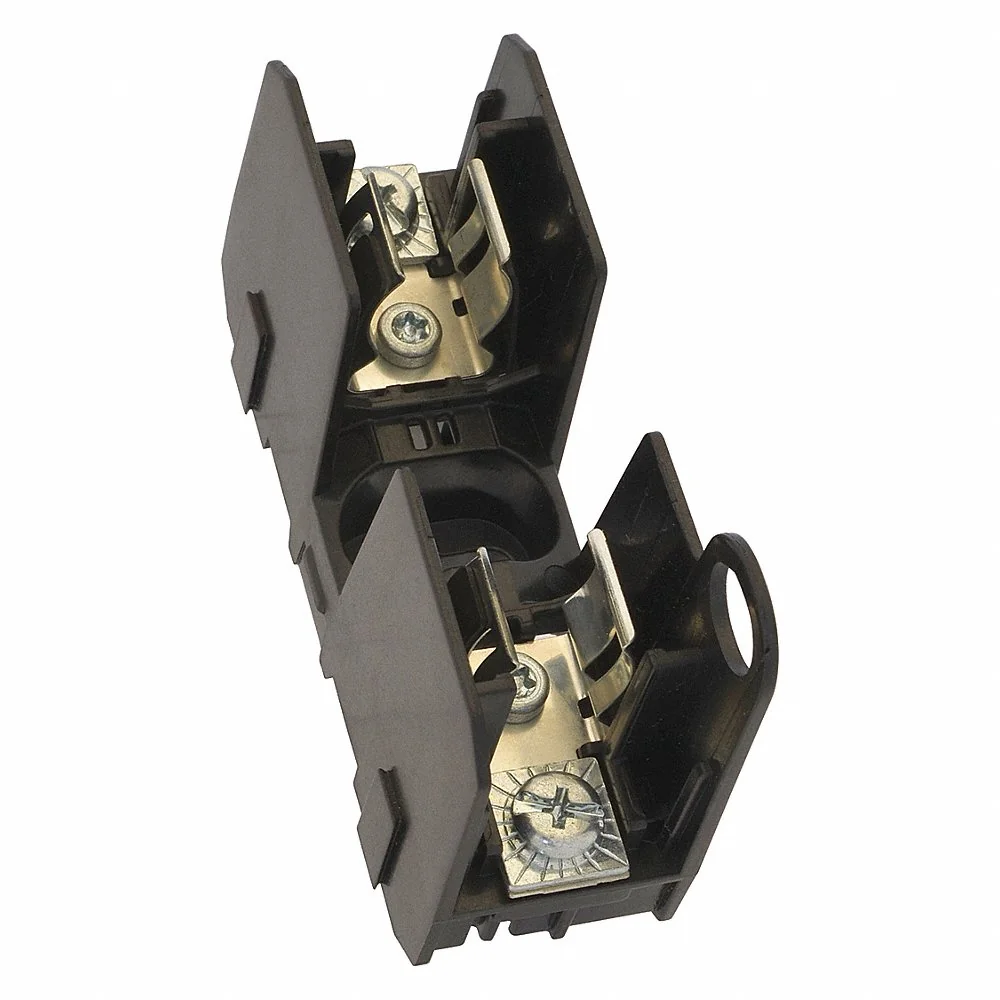

| C | HM60030-1CR | 1 | Box Lug | 0-30A | Nonrejection | 600V AC | 2.3" | 600V AC | 2 AWG to 14 AWG | €69.51 | |
| D | HM60060-1CR | 1 | Box Lug | 31-60A | Nonrejection | 600V AC | 2 3/5" | 600V AC | 2 AWG to 14 AWG | €125.70 | |
| E | HM25030-1QR | 1 | Screw With Quick Connect | 0-30A | Nonrejection | 250V AC/125V DC | 2" | 250V AC/125V DC | 10 AWG to 18 AWG | €29.81 | |
| F | HM25060-1CR | 1 | Box Lug | 31-60A | Nonrejection | 250V AC/125V DC | 2.3" | 250V AC/125V DC | 2 AWG to 14 AWG | €57.79 | |
| G | HM60030-1PR | 1 | Pressure Plate | 0-30A | Nonrejection | 600V AC | 2.3" | 600V AC | 10 AWG to 18 AWG | €70.70 | |
| H | HM60030-2SR | 2 | Screw | 0-30A | Non Rejection | - | 2.3" | 600V AC | - | €126.41 | |
| C | HM60030-2CR | 2 | Box Lug | 0-30A | Nonrejection | 600V AC | 2.3" | 600V AC | 2 AWG to 14 AWG | €119.80 | |
| G | HM60030-2PR | 2 | Pressure Plate | 0-30A | Nonrejection | 600V AC | 2.3" | 600V AC | 10 AWG to 18 AWG | €110.91 | |
| A | HM25030-2CR | 2 | Box Lug | 0-30A | Nonrejection | 250V AC/125V DC | 2" | 250V AC/125V DC | 2 AWG to 14 AWG | €84.67 | |
| D | HM60060-2CR | 2 | Box Lug | 31-60A | Nonrejection | 600V AC | 2 3/5" | 600V AC | 2 AWG to 14 AWG | €138.33 | |
| F | HM25060-2CR | 2 | Box Lug | 31-60A | Nonrejection | 250V AC/125V DC | 2.3" | 250V AC/125V DC | 2 AWG to 14 AWG | €112.57 | |
| A | HM25030-2PR | 2 | Pressure Plate | 0-30A | Nonrejection | 250V AC/125V DC | 2" | 250V AC/125V DC | 10 AWG to 18 AWG | €65.34 | |
| A | HM25030-2SR | 2 | Screw | 0-30A | Nonrejection | 250V AC/125V DC | 2" | 250V AC/125V DC | 10 AWG to 18 AWG | €50.33 | |
| I | HM60030-3CR | 3 | Box Lug | 0-30A | Nonrejection | 600V AC | 2.3" | 600V AC | 2 AWG to 14 AWG | €227.93 | |
| B | HM60030-3SR | 3 | Screw | 0-30A | Nonrejection | 600V AC | 2.3" | 600V AC | 10 AWG to 18 AWG | €135.94 | |
| G | HM60030-3PR | 3 | Pressure Plate | 0-30A | Nonrejection | 600V AC | 2.3" | 600V AC | 10 AWG to 18 AWG | €139.38 | |
| F | HM25060-3CR | 3 | Box Lug | 31-60A | Nonrejection | 250V AC/125V DC | 2.3" | 250V AC/125V DC | 2 AWG to 14 AWG | €149.05 | |
| A | HM25030-3CR | 3 | Box Lug | 0-30A | Nonrejection | 250V AC/125V DC | 2" | 250V AC/125V DC | 2 AWG to 14 AWG | €146.98 | |
| A | HM25030-3PR | 3 | Pressure Plate | - | - | - | 2" | 250V AC/125V DC | 10 AWG to 18 AWG | €89.63 | |
| D | HM60060-3CR | 3 | Box Lug | 31-60A | Nonrejection | 600V AC | 2 3/5" | 600V AC | 2 AWG to 14 AWG | €174.25 | |
| A | HM25030-3SR | 3 | Screw | 0-30A | Nonrejection | 250V AC/125V DC | 2" | 250V AC/125V DC | 10 AWG to 18 AWG | €93.69 |
