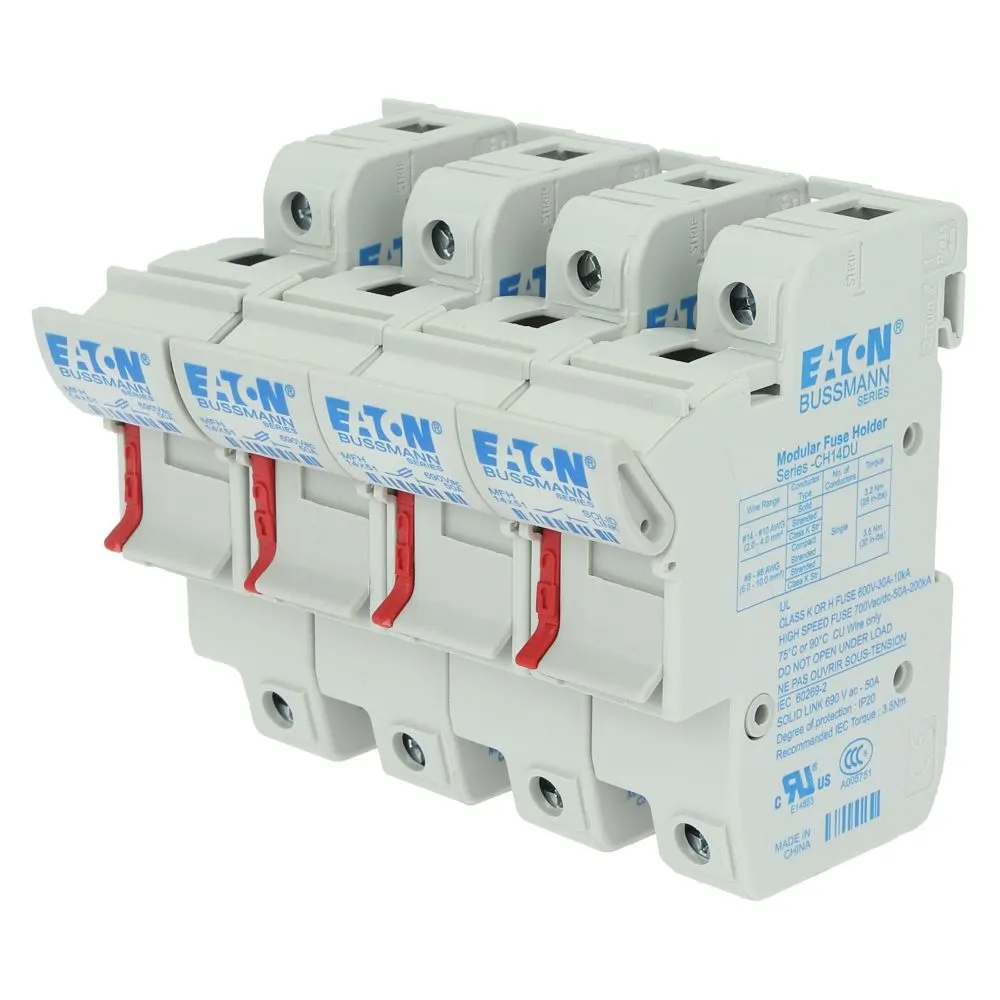

BUSSMANN CH143DNU Fuse Holder, Low Voltage, 50 A Rating, 690 V, Polyester
Get it by Friday, May 15
€84.14 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Holder |
| Amperage Rating | 50A |
| Application | Industrial And Commercial Applications |
| Built-in Depth | 51.5 mm |
| Degree Of Protection | IP20 |
| Fuse Size | 14 mm x 51 mm |
| Fuse Type | C14G, C14M |
| Lockable | Yes |
| Material | Polyester |
| Mounting Method | DIN Rail, 2 x M4 Panel Mounting Screws |
| Number Of Modular Spacings | 6 |
| Number Of Poles | 3 |
| Operating Temperature Details | +20°C to +70°C |
| Product Datasheet | bussmann-ch143dnu.pdf |
| Torque Rating | 3.5 N-m |
| Type | Fuse Accessory |
| Used With | C14G, C14M, FW A14F Fuses |
| Voltage Rating | 690V |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 9.14 |
| Ship length (cm) | 7.37 |
| Ship width (cm) | 10.59 |
| Country of Origin | US |
Product Details:
- Bussmann series 14 x 51 mm modularfuse holders are suitable for use with standardcylindrical fuse links and FW type ferrule fuselinks.
- It's compact dimensions helps reduce space,allows for higher cable bending radius. Lowwatts loss and wide range of accessoriesmake it ideally suited for most industrialapplications
Documentation:
Product Variants
| Product | Model | Connector Type | Mounting Type | Body Material | Number Of Poles | Amp Range | Mounting Style | Fuse Block Design | Visual Indication | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HRJ | Wire Leads | Inline | - | 1 | 0-20A | Inline | Non Breakaway | Non Indicating | €16.94 | |
 |
HPG | 1/4" Quick Connect | Panel | - | 1 | 0-30A | Panel | Not Applicable | Non Indicating | €26.89 | |
 |
CM100CF | Screw | Panel | - | 1 | 0-100A | Din Rail, Screw Mounting | Finger Safe | Non Indicating | €500.60 | |
 |
CM20CF | Screw | Panel | - | 1 | 0-30A | Din Rail, Screw Mounting | Finger Safe | Non Indicating | €323.47 | |
 |
CM30CF | Screw | Panel | - | 1 | 0-30A | Din Rail, Screw Mounting | Finger Safe | Non Indicating | €373.06 | |
 |
OPM-1038 | Box Lug | DIN Rail | Thermoplastic | 3 | 0-30A | Din Rail, Panel | Finger Safe | Indicating | €861.92 | |
 |
HHX | Wire Leads | Inline | Polycarbonate | 1 | 20-60A | Inline | Covered | Non Indicating | €60.97 |
