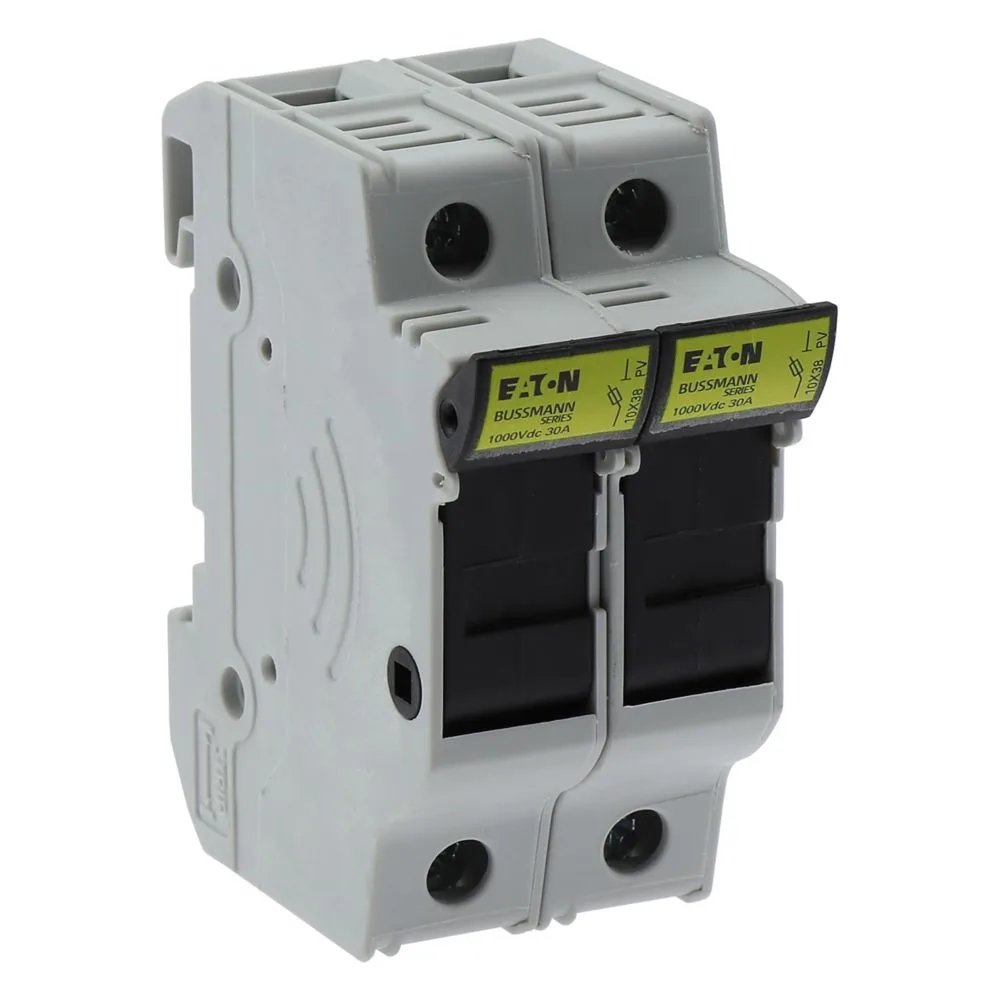

BUSSMANN CHPV2U PV Fuse Holder – 2-Pole, 30A, 1000VDC, DIN Rail Mount
Item: BD4YYXModel: CHPV2UCross Ref: 49ZU33
7 In Stock
Ships within 2 days via
10.00% off
€124.53 /unit
This product can only be shipped in multiples of 6Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse Block |
| Amp Range | 0-30A |
| Amps | 30A |
| Body Material | Thermoplastic |
| Color | White |
| Compatible Fuse Series | CHPV Series |
| Connector Type | Clamp/Spade Lug |
| Fits Fuse Type | Solar |
| For Fuse Size | 1 1/2" x 13/32" Dia. |
| Fuse Block Design | Finger-Safe |
| Fuse Block Style | Nonrejection |
| Fuse Current | 0-30A |
| Fuse Overall Length | 2.91" |
| Fuse Ul Class | Not Class Rated |
| Height | 2.43" |
| Illumination | Not Illuminated |
| Length | 2.91" |
| Material | Thermoplastic |
| Mounting Style | DIN Rail |
| Mounting Type | DIN Rail |
| Number Of Poles | 2 |
| Packaging | Bulk |
| Product Datasheet | bussmann-chpv2u.pdf |
| Product Type | Fuse Holder |
| Shaft Type | Captive Drawer |
| Standards | Ce, Csa Certified, Ul Listed |
| Termination Type | Screw |
| Visual Indication | Non Indicating |
| Voltage | 1000V DC |
| Voltage Rating | 1000V DC |
| Width | 1.38" |
| Wire Range | 18 AWG to 4 AWG |
Shipping Info:
| Ship weight (kg) | 0.67 |
| Ship height (cm) | 6.17 |
| Ship length (cm) | 7.39 |
| Ship width (cm) | 3.51 |
| Country of Origin | CN |
Product Details:
- Compact footprint consumes minimal panel space
- Blocks are fully modular with a snap-together design that provides tool-less assembly of multiple pole blocks at point-of-use to reduce inventory and save assembly time and labor
- DIN-Rail and panel mount versatility allows one product to be used for multiple applications, lowering inventory cost
- Optional see-through cover enhances safety with IP20 finger-safe protection, lockout/tagout capability and open circuit indication
- Easy circuit identification with available universal marker labels for fuse block covers
- Tin-plated bimetallic copper fuse clips deliver superior fatigue resistance compared to traditional spring brass
