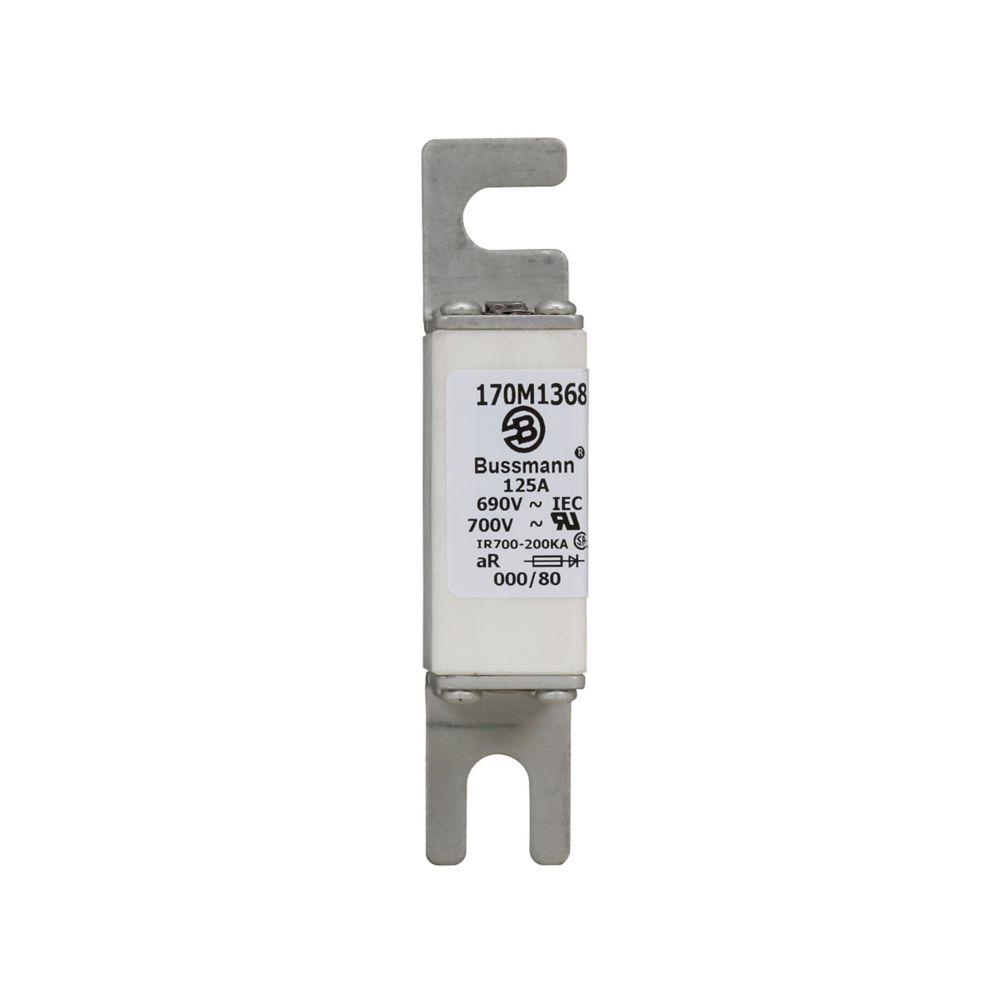

BUSSMANN 170M1368 Specialty Fuse, High Speed, 690 VAC / 690 VDC, 125 A
Item: BC9QZNModel: 170M1368
7 In Stock
Ships within 2 days via
10.00% off
€26.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Blade Fuse |
| Ac Voltage | 690V AC |
| Amps | 125A |
| Body Style | Square |
| Dc Voltage | 690V DC |
| Fuse Type | Square Body Blade Fuses |
| Height | 21 mm |
| Interrupt Rating | 200 kA |
| Length | 54 mm |
| Mounting Type | Stud |
| Overall Length | 2.13" |
| Packaging | Bulk |
| Product Datasheet | bussmann-170m1368.pdf |
| Product Type | High Speed Square Body Fuse |
| Series | 170M Type 80 Series |
| Termination Type | Bolt Down |
| Type | High Speed Fuse |
| Voltage | 690V AC |
| Voltage (dc) | 690VDC |
| Width | 48 mm |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 4.57 |
| Ship length (cm) | 10.49 |
| Ship width (cm) | 29.97 |
| Country of Origin | US |
Product Details:
- Square body DIN 43653 bolted tags high speed fuses, for the protection of DC commonbus, DC drives, power converters/rectifiers and reduced rated voltage starters. Availablewith and without visual indicator, and Type T indicator for a microswitch.
- Base - light-weight, high temperaturethermoplastic
- Mounting studs - plated steel
- Washer - spring steel
- Nuts - plated steel
- Connector: tin-plated aluminum
Documentation:
Product Variants
| Product | Model | Amps | Body Style | Ac Voltage Rating | Type | Interrupt Rating | Height | Fuse Type | Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
170M3018 | 350A | Bolt On | 700V AC | - | 200 kA at 690V AC | - | - | High Speed | €925.57 | |
|
170M4016 | 630A | Bolt On | 690V AC | - | 200 kA at 690V AC | - | - | High Speed | €1,287.40 | |
 |
170M5013 | 700A | Square | - | High Speed | - | 66 mm | - | Class AR | €301.36 | |
 |
170M5016 | 1 kA | Square | - | High Speed | - | - | - | - | €393.43 | |
|
170M4012 | 400A | Square | - | High Speed Fuse | - | - | - | - | €310.05 | |
 |
170M5011 | 550A | Square | - | High Speed | - | - | - | - | €267.97 | |
|
170M2615 | 125A | Square | - | High Speed Fuse | - | - | - | - | €151.89 |
