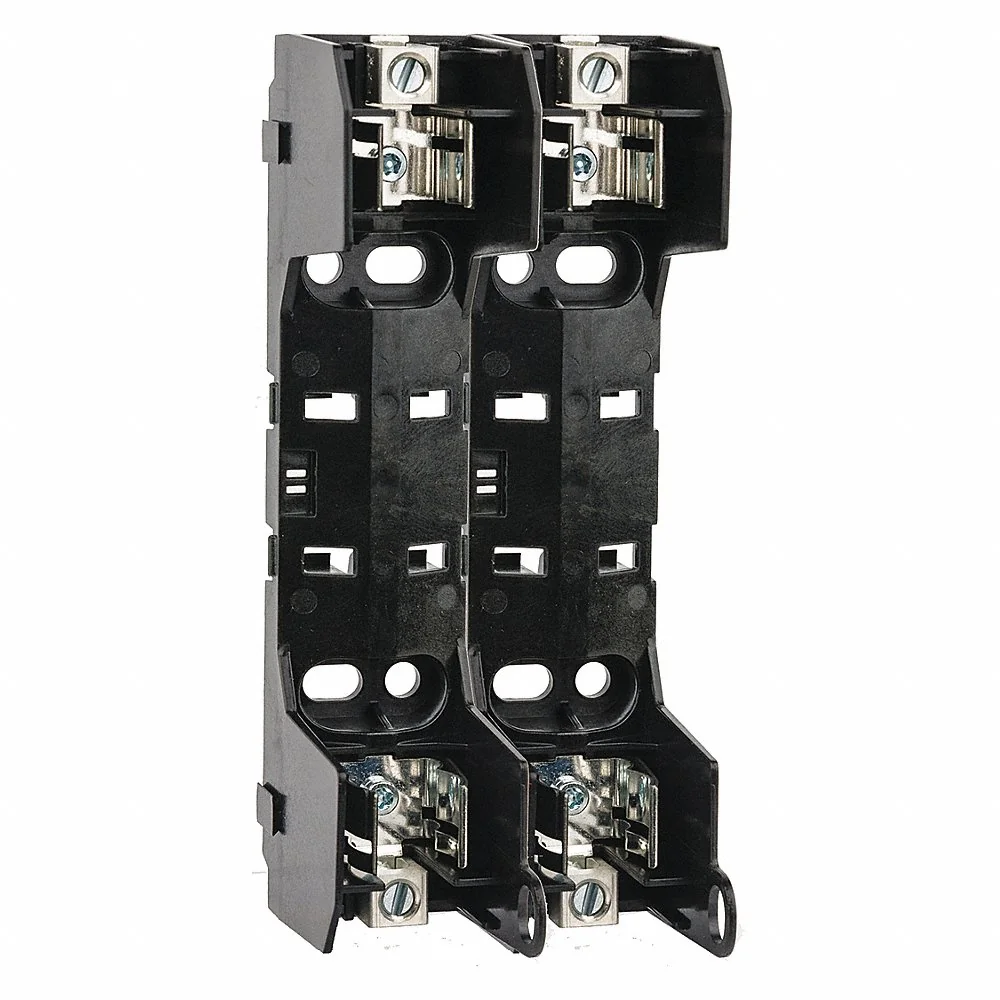

BUSSMANN HM60030-2CR Fuse Block, Fits Industrial Fuse Type, 2 Poles, 0 To 30 Amp, 600 VAC, H Class, 14 to 2 AWG, Box Lug
Item: AH9MYYModel: HM60030-2CRCross Ref: 40LH17
7 In Stock
Ships within 2 days via
5.00% off
€113.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse Block |
| Ac Voltage Rating | 600V AC |
| Amps | 0-30A |
| Body Material | Thermoplastic |
| Compatible Fuse Series | HM60030 Series |
| Connector Type | Box Lug |
| Dc Voltage | Not Rated |
| Fits Fuse Type | Industrial |
| For Fuse Size | 5" x 13/16" Dia. |
| For Use | NOS |
| For Use With | NOS |
| Fuse Amps | 0-30A |
| Fuse Block Design | Open |
| Fuse Block Style | Nonrejection |
| Fuse Overall Dia. | 13/16" |
| Fuse Overall Length | 7" |
| Fuse Ul Class | Class H, Class K5 |
| Height | 2.3" |
| Housing Material | Thermoplastic |
| Length | 7" |
| Material | Thermoplastic |
| Mounting Style | Bolt-Down, DIN Rail |
| Mounting Type | Bolt Down, DIN Rail |
| No. Of Poles | 2 |
| Operating Amps | 0-30A |
| Spring Reinforced Clip | Yes |
| Standards | Ce, Csa Certified, Reach, Rohs, Ul Listed |
| Type | Fuse Block |
| Visual Indication | Non Indicating |
| Voltage | 600V AC |
| Width | 2 2/5" |
| Wire | 14 AWG to 2 AWG |
| Wire Size | 2 AWG to 14 AWG |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 15.75 |
| Ship width (cm) | 6.35 |
| Country of Origin | MX |
Product Details:
- Fuse Type : Industrial
Product Variants
| Product | Model | Connector Type | Fuse Block Style | Height | Voltage | Wire Size | Dc Voltage | Operating Amps | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HM25030-1CR | Box Lug | Nonrejection | 2" | 250V AC/125V DC | 2 AWG to 14 AWG | 125V DC | 0-30A | 0-30A | €73.23 | |
 |
HM60060-1CR | Box Lug | Nonrejection | 2 3/5" | 600V AC | 2 AWG to 14 AWG | Not Rated | 35-60A | 31-60A | €125.70 | |
 |
HM25030-2SR | Screw | Nonrejection | 2" | 250V AC/125V DC | 10 AWG to 18 AWG | 125V DC | 0-30A | 0-30A | €50.33 | |
 |
HM25030-1QR | Screw With Quick Connect | Nonrejection | 2" | 250V AC/125V DC | 10 AWG to 18 AWG | 125V DC | 0-30A | 0-30A | €29.81 | |
 |
HM60030-1PR | Pressure Plate | Nonrejection | 2.3" | 600V AC | 10 AWG to 18 AWG | Not Rated | 0-30A | 0-30A | €70.70 | |
|
HM25030-2PR | Pressure Plate | Nonrejection | 2" | 250V AC/125V DC | 10 AWG to 18 AWG | 125V DC | 0-30A | 0-30A | €65.34 | |
 |
HM60030-3CR | Box Lug | Nonrejection | 2.3" | 600V AC | 2 AWG to 14 AWG | Not Rated | 0-30A | 0-30A | €227.93 |
