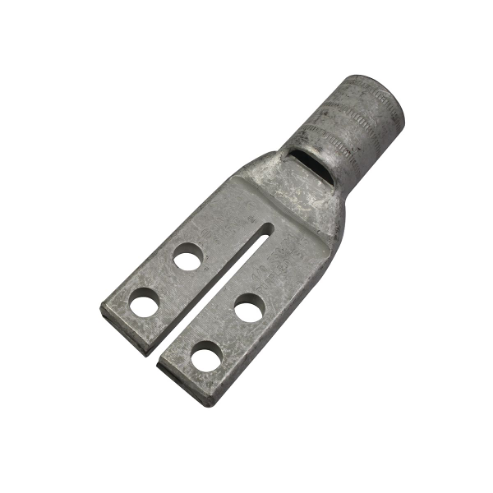

BURNDY YA28L4TCG1 Compression Lug, 1 Inch Barrel Length, Purple
84 mm
Purple
Get it by Tuesday, Feb 24
€354.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Compression Lug |
| Application | Wire Termination |
| Bolt Hole Size | 0.27" |
| Certification - Csa Approved | No |
| Certification - Culus | No |
| Certification - Etl | No |
| Certification - Ul Recognized | No |
| Color Code | Purple |
| Conductor - Copper Str Navy Size | 200 (61) Navy |
| Conductor - Copper Str Size | 4/0 AWG |
| Conductor - Copper Str Size Range | 4/0 AWG |
| Conductor - Material | Copper |
| Conductor Size | 4/0 AWG |
| Conductor Type | Code |
| Connector Type | Standard Barrel |
| Die Index | 15 |
| Dimension N | 0.31" |
| Dimension - B Length Fraction | 1" |
| Dimension - B Length Inch | 1" |
| Dimension - Bolt Size Fraction | 1/4" |
| Dimension - Bolt Size Inch | 0.25" |
| Dimension - F Width Center To Center | 0.75" |
| Dimension - Hole Size Fraction | 1/4" |
| Dimension - Hole Size Inch | 0.27 |
| Dimension - Hole Size Mm | 6.9 mm |
| Dimension - L Length Overall Mm | 84 mm |
| Dimension - Stud Size Fraction | 1/4" |
| Dimension - Stud Size Inch | 1/4" |
| Dimension - Thread Size | 1/4" |
| Dimension - Z (inch) | 0.2" |
| Eu Rohs Indicator | Yes |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Finish Type | Tin-Plated |
| Material | Copper |
| Outside Diameter | 0.69" |
| Overall Length | 3.29" |
| Pad Width | 1.38" |
| Physical Attribute - Number Of Holes | 4 |
| Physical Attribute - Tongue Angle | Straight |
| Plated | Y |
| Plating Type | Tin Electro Plated |
| Standards - Rohs Compliance Status | CM |
| Strip Length | 1.125" |
| Trade Name | Hylug |
| Type | Standard Barrel, Tin Plated |
| Ul Listed | Yes |
| Voltage - Maximum | 35000V |
| Voltage Rating | 35 kV |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.75 |
| Ship length (cm) | 8.36 |
| Ship width (cm) | 3.51 |
| Country of Origin | US |
Product Variants
| Product | Model | Color Code | Stud Size | Material | Connector Type | Wire Size | Overall Length | Number Of Holes | Strip Length | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YAZ6CTC14 | Blue | 1/4" | - | - | - | 3 1/2" | 1 | 1.188" | 1 | - | RFQ
|
 |
YA4CL3BOX | Gray | 0.312" | - | - | - | 1.79" | 1 | 7/8" | 1 | - | RFQ
|
 |
YAEV8CL2 | Red | 0.312" | - | - | - | 1.54" | 1 | - | 1 | - | RFQ
|
 |
YAZV102TC14 | - | 1/4" | - | - | - | 2 4/25" | 2 | 3/4" | 1 | €16.48 | |
 |
YA27A1 | Ruby | - | - | - | - | 2 22/25" | 1 | 1 1/2" | 1 | - | RFQ
|
 |
YA1CLBOX | Green | 0.312" | - | - | - | 1.94" | 1 | 0.938" | 1 | - | RFQ
|
 |
YA27L | Orange | 1/2" | - | - | - | 2.54" | 1 | - | 1 | - | RFQ
|
