WEG General Purpose Single Phase Motors, W22 Severe Duty, TEFC
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q| Style | Model | Voltage | Phase | Service Factor | Full Load Amps | Hp | Frame | Rpm | No Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 00536ES1B184JP-W22 | 115/208-230V | 1 | - | - | - | 184JP | 3600 RPM | - | €1,207.31 | |
| B | 00518ES1B184JP-W22 | 115/208-230V | 1 | - | - | - | 184JP | 1800 RPM | - | €1,232.34 | |
| C | 00518ES1B184JM-W22 | 115/208-230V | 1 | - | - | - | 184JM | 1800 RPM | - | €1,184.93 | |

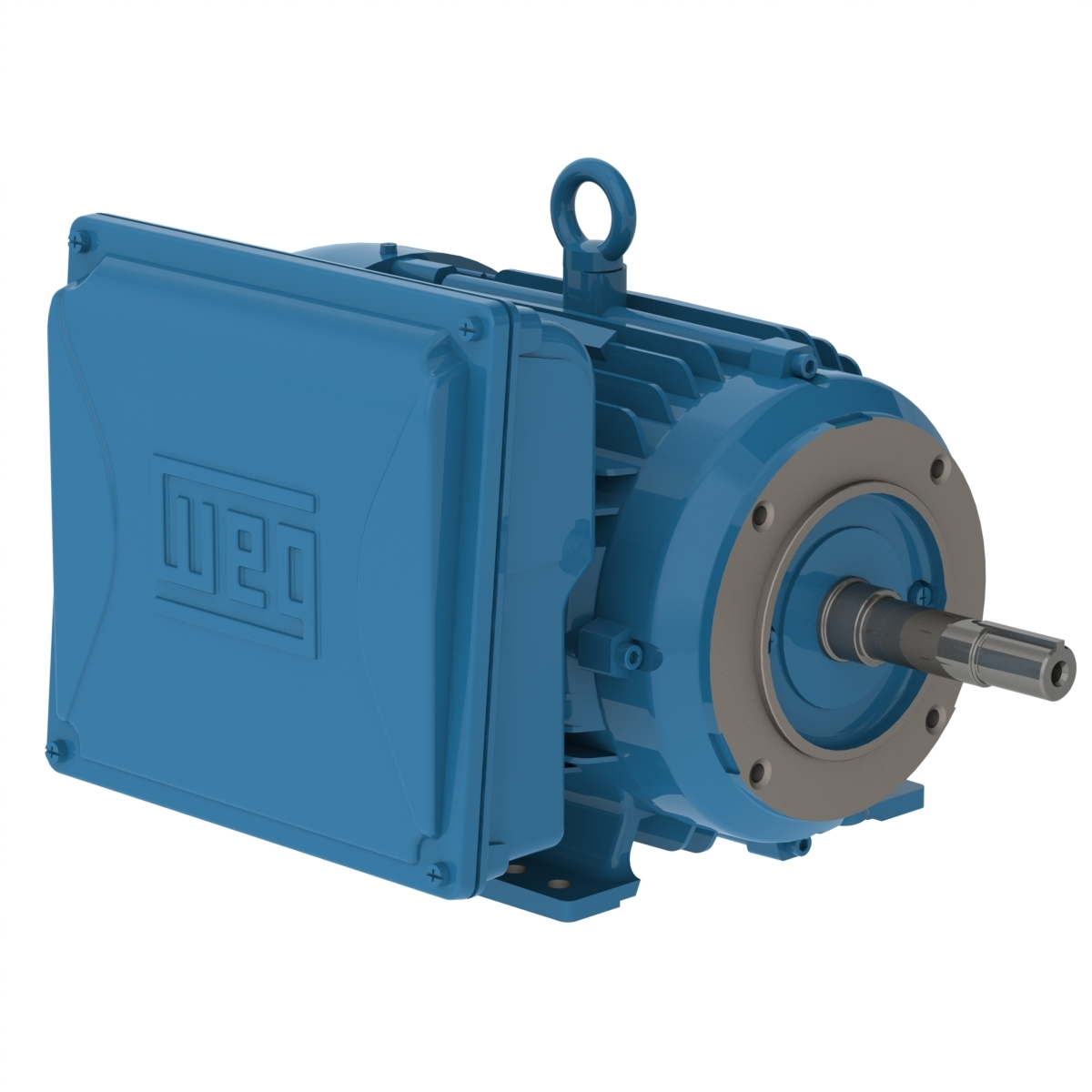

| C | 00318ES1B184JM-W22 | 115/208-230V | 1 | - | - | - | 184JM | 1800 RPM | - | €979.44 | |
| D | 00536ES1B184T-W22 | 115/208-230V AC | 1 | 1.15 | - | - | 182/4T | 3400-3600 RPM | 15/0-7.5A | €1,240.80 | |
| E | 00318ES1B184TC-W22 | 115/208-230V AC | 1 | 1.15 | - | - | 182/4TC | 1700-1800 RPM | 18/7.76-9A | €1,089.27 | |
| D | 00336ES1B182T-W22 | 115/208-230V AC | 1 | 1.15 | - | - | 182/4T | 3400-3600 RPM | 8/3.45-4A | €1,052.30 | |
| F | 00336ES1B145JM-W22 | 115/208/230V AC | 1 | 1.15 | - | - | 145JM | 3400-3600 RPM | 2.5-2.9/5.8A | €1,283.76 | |
| G | 00336ES1B145JP-W22 | 115/208/230V AC | 1 | 1.15 | - | - | 145JP | 3400-3600 RPM | 2.5-2.9/5.8A | €1,283.76 | |
| H | 00736ES1B213T-W22 | 115/208/230V AC | 1 | - | - | 7 1/2 hp | 213T | 3600 RPM | - | - | RFQ
|
| A | 01036ES1E215JP-W22 | 208-230/460V | 1 | 1 | 19.4/38.8-43.2A | - | 215JP | 3400-3600 RPM | 3.85/7.7A | €1,754.78 | |
| I | 00156ES1E143JP-W22 | 208-230/460V | 1 | 1 | 3.9/7.8A | 1 1/2 hp | 143JP | 3400-3600 RPM | 2.2/4.4A | €604.07 | |
| J | 00158ES1E145JM-W22 | 208-230/460V | 1 | 1 | 3.6/7.2A | 1 1/2 hp | 145JM | 1700-1800 RPM | 2/4A | €842.13 | |
| J | 00156ES1E143JM-W22 | 208-230/460V | 1 | 1 | 3.9/7.8A | 1 1/2 hp | 143JM | 3400-3600 RPM | 2.2/4.4A | €604.07 | |
| B | 00318ES1E184JP-W22 | 208-230/460V | 1 | 1 | 6.8/13.6-14.7A | - | 184JP | 1700-1800 RPM | 3/6A | €979.44 | |
| J | 00318ES1E184JM-W22 | 208-230/460V | 1 | 1 | 6.8/13.6-14.7A | - | 184JM | 1700-1800 RPM | 3/6A | €979.44 | |
| A | 01018ES1E215JP-W22 | 208-230/460V | 1 | 1 | 19.5/39-44.8A | - | 215JP | 1700-1800 RPM | 3/6A | €2,226.15 | |
| K | .5036ES1E143JM-W22 | 208-230/460V | 1 | 1 | 1.9/3.8A | 1/2 hp | 143JM | 3400-3600 RPM | 1.3/2.6A | €553.52 | |

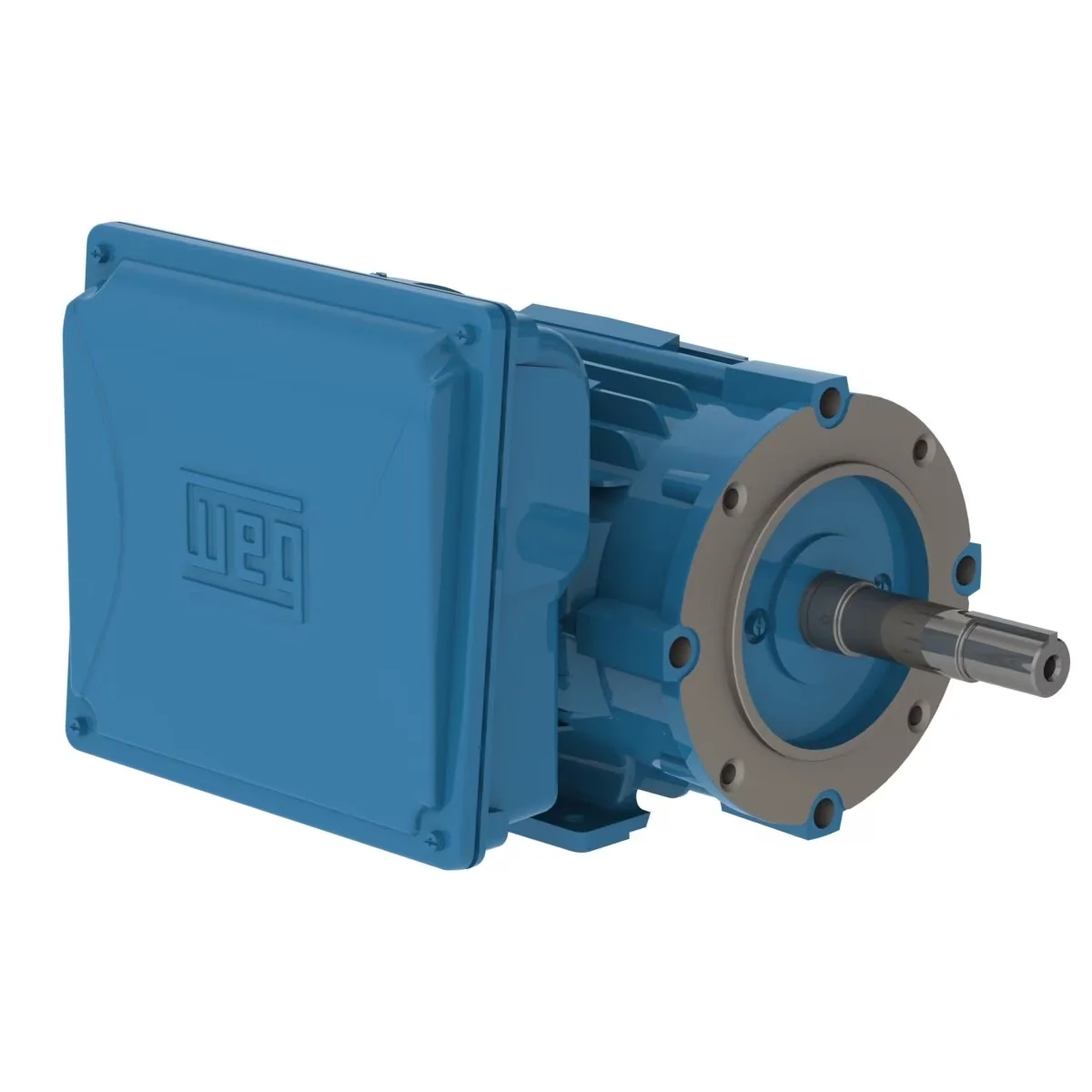

| J | 00218ES1E145JM-W22 | 208-230/460V | 1 | 1 | 4.2/8.4A | - | 145JM | 1700-1800 RPM | 1.5/3A | €875.26 | |
| J | 01018ES1E215JM-W22 | 208-230/460V | 1 | 1 | 19.5/39-44.8A | - | 215JM | 1700-1800 RPM | 3/6A | €1,661.87 | |
| A | 00518ES1E184JP-W22 | 208-230/460V | 1 | 1 | 10.7/21.4-22.5A | - | 184JP | 1700-1800 RPM | 4.2/8.4A | €1,184.93 | |

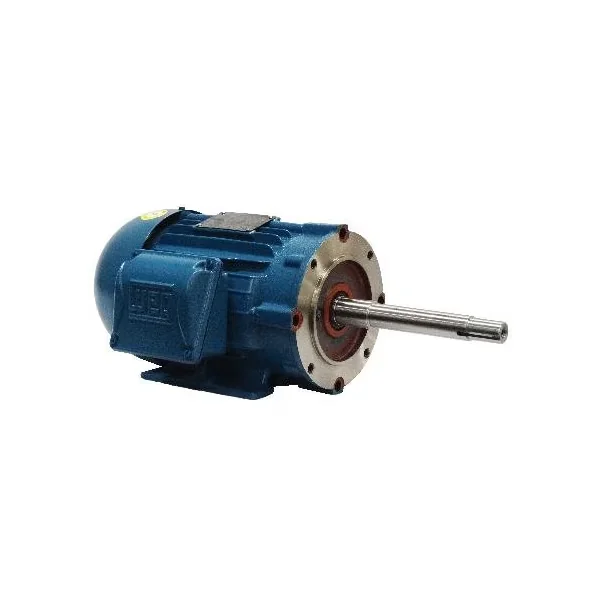

| A | 00718ES1E215JP-W22 | 208-230/460V | 1 | 1 | 17/34-35.5A | 7 1/2 hp | 215JP | 1700-1800 RPM | 8.8/17.6A | €1,478.99 | |
| J | 00136ES1E143JM-W22 | 208-230/460V | 1 | 1 | 3.15/6.3A | - | 143JM | 3400-3600 RPM | 1.95/3.9A | €565.12 | |
| A | 00536ES1E184JP-W22 | 208-230/460V | 1 | 1 | 10.5/21-22.5A | - | 184JP | 3400-3600 RPM | 4/8A | €1,207.31 | |
| A | 00336ES1E145JP-W22 | 208-230/460V | 1 | 1 | 6.75/13.5-14.6A | - | 145JP | 3400-3600 RPM | 2.65/5.3A | €891.59 | |

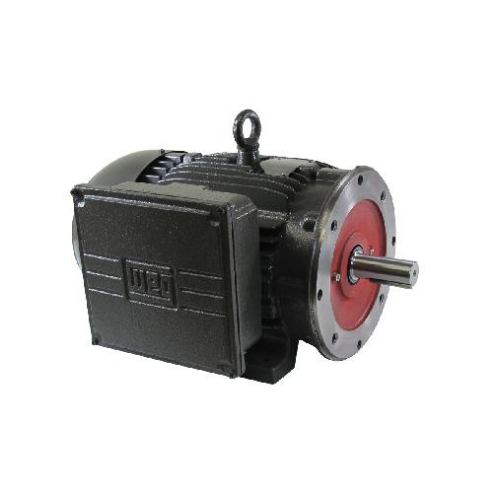

| L | 00518ES1EID184TC-W22 | 208-230/460V | 1 | - | - | - | 184TC | 1800 RPM | - | €955.41 | |
| A | 00736ES1E213JP-W22 | 208-230/460V | 1 | 1 | 14.9/29.8-33.4A | 7 1/2 hp | 213JP | 3400-3600 RPM | 3.5/7A | €1,318.12 | |
| I | 00218ES1E145JP-W22 | 208-230/460V | 1 | 1 | 4.2/8.4A | - | 145JP | 1700-1800 RPM | 1.5/3A | €674.50 | |
| I | 00236ES1E145JP-W22 | 208-230/460V | 1 | 1 | 4.9/9.8-10.2A | - | 145JP | 3400-3600 RPM | 2.45/4.9A | €638.05 | |

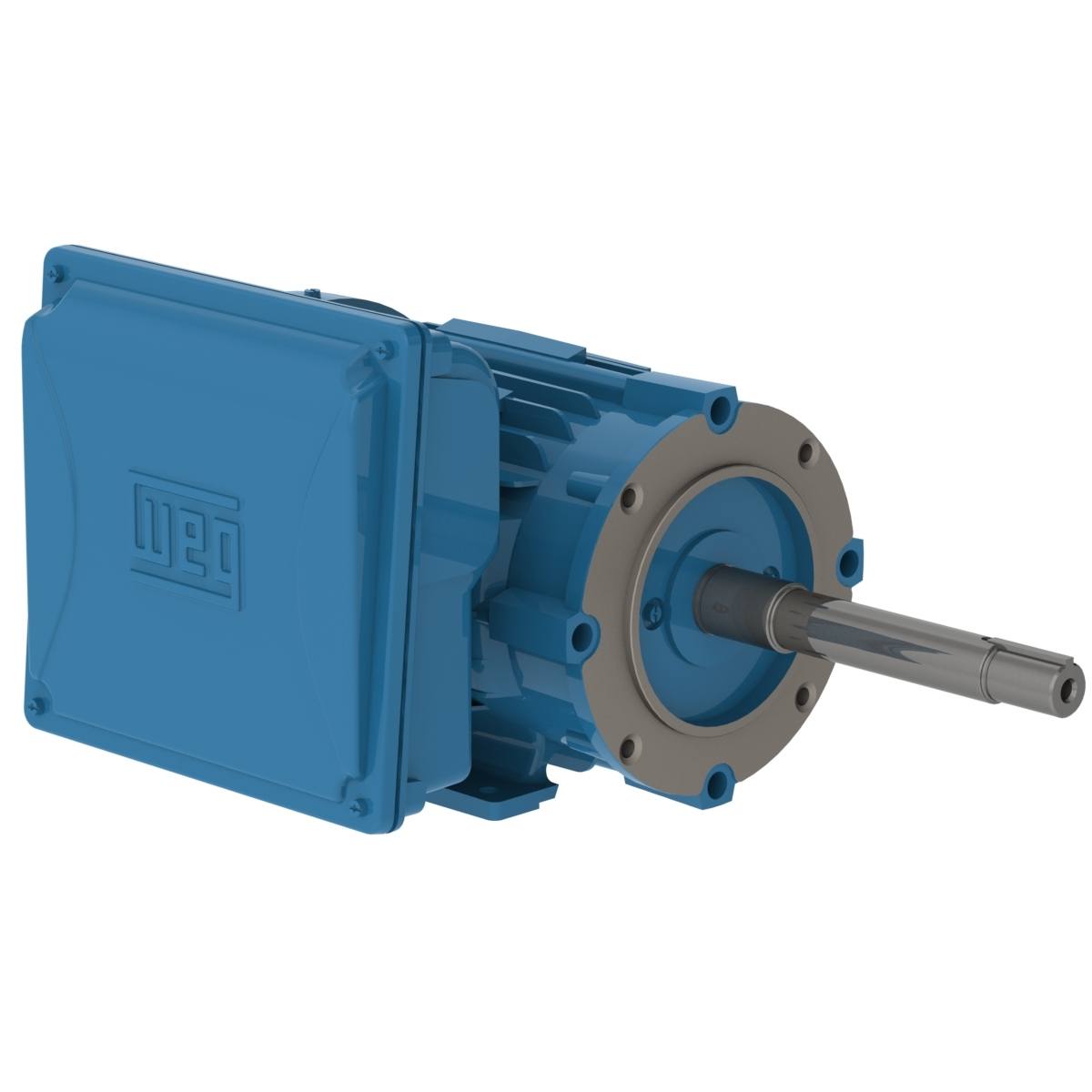

| I | .5036ES1E143JP-W22 | 208-230/460V | 1 | 1 | 1.9/3.8A | 1/2 hp | 143JP | 3400-3600 RPM | 1.3/2.6A | €553.52 | |
| H | 00718ES1EID215TC-W22 | 208-230/460V | 1 | - | - | 7 1/2 hp | 215TC | 1800 RPM | - | €1,267.67 | |
| M | 01018ES1E215T-W22 | 208-230/460V | 1 | 1.15 | - | 10 hp | 213/5T | 1700-1800 RPM | 9.66-11.2/5.6A | €1,836.76 | |
| N | 00536ES1E184JM-W22 | 208-230/460V | 1 | - | - | - | 184JM | 3400-3600 RPM | - | €1,738.33 | |
| D | 00318ES1E184T-W22 | 208-230/460V AC | 1 | 1.15 | - | - | 182/4T | 1700-1800 RPM | 5.78-6.7/3.35A | €1,042.74 | |
| E | 00318ES1E184TC-W22 | 208-230/460V AC | 1 | 1.15 | - | - | 182/4TC | 1700-1800 RPM | 5.78-6.7/3.35A | €1,089.27 | |
| D | 00518ES1E184T-W22 | 208-230/460V AC | 1 | 1.15 | - | - | 182/4T | 1700-1800 RPM | 6.9-8/4A | €1,269.44 | |
| M | 00718ES1E215T-W22 | 208-230/460V AC | 1 | 1.15 | - | 7 1/2 hp | 213/5T | 1700-1800 RPM | 8.97-10.4/5.2A | €1,642.44 | |
| O | 01018ES1E215TC-W22 | 208-230/460V AC | 1 | 1.15 | - | 10 hp | 213/5TC | 1700-1800 RPM | 9.66-11.2/5.6A | €1,899.58 | |
| P | 00512ES1E215T-W22 | 208-230/460V AC | 1 | 1.15 | - | - | 213/5T | 1100-1200 RPM | 6.47-7.5/3.75A | €1,847.24 | |
| E | 00518ES1E184TC-W22 | 208-230/460V AC | 1 | 1.15 | - | - | 182/4TC | 1700-1800 RPM | 6.9-8/4A | €1,315.95 | |
| O | 01218ES1E215TC-W22 | 208-230/460V AC | 1 | 1.15 | - | - | 213/5TC | 1700-1800 RPM | 15.6-18.1/9.05A | €2,112.07 | |
| P | 00212ES1E213T-W22 | 208-230/460V AC | 1 | 1.15 | - | - | 213/5T | 1100-1200 RPM | 3.97-4.6/2.3A | €1,442.43 | |
| D | 00536ES1E184T-W22 | 208-230/460V AC | 1 | 1.15 | - | - | 182/4T | 3400-3600 RPM | 1.95/3.36-3.9A | €1,238.40 | |
| P | 00312ES1E215T-W22 | 208-230/460V AC | 1 | 1.15 | - | - | 213/5T | 1100-1200 RPM | 2.8/4.83-5.6A | €1,603.79 | |
| E | 00536ES1E184TC-W22 | 208-230/460V AC | 1 | 1.15 | - | - | 182/4TC | 3400-3600 RPM | 3.36-3.9/1.95A | €1,284.95 | |
| O | 00718ES1E215TC-W22 | 208-230/460V AC | 1 | 1.15 | - | - | 213/5TC | 1700-1800 RPM | 8.97-10.4/5.2A | €1,640.17 | |
| D | 00336ES1E182T-W22 | 208-230/460V AC | 3 | 1.15 | - | - | 182/4T | 3400-3600 RPM | 3.45-4/2A | €1,048.71 | |
| P | 00736ES1E213T-W22 | 208-230/460V AC | 1 | 1.15 | - | - | 213/5T | 3400-3600 RPM | 5.69-6.6/3.3A | €1,800.70 | |
| O | 01018ES1EID215TC-W22 | 208-230/460V AC | 1 | 1.15 | - | - | 213/5TC | 1700-1800 RPM | 9.66-11.2/5.6A | €1,958.31 | |
| O | 01036ES1E215TC-W22 | 208-230/460V AC | 1 | 1.15 | - | - | 213/5TC | 3400-3600 RPM | 5.95-6.9/3.45A | €2,277.37 | |
| P | 01036ES1E215T-W22 | 208-230/460V AC | 1 | 1.15 | - | 10 hp | 213/5T | 3400-3600 RPM | 5.95-6.9/3.45A | €2,214.94 | |
| Q | 00336ES1E145TC-W22 | 208-230/460V AC | 1 | 1.15 | - | - | 143/5TC | 3400-3600 RPM | 2.5-2.9/1.45A | €1,048.71 | |
| O | 01218ES1EID215TC-W22 | 208-230/460V AC | 1 | 1.15 | - | - | 213/5TC | 1700-1800 RPM | 15.6-18.1/9.05A | €2,182.56 | |
| D | 00152ES1E182T-W22 | 208-230/460V AC | 1 | 1.15 | - | - | 182/4T | 1100-1200 RPM | 6.04-7/3.5A | €1,312.38 | |
| P | 01218ES1E215T-W22 | 208-230/460V AC | 1 | 1.15 | - | - | 213/5T | 1700-1800 RPM | 15.6-18.1/9.05A | €2,053.10 | |
| J | 00718ES1C215JM-W22 | 208-230V | 1 | - | - | 7 1/2 hp | 215JM | 1700-1800 RPM | - | €1,482.36 | |
| J | 00536ES1C184JM-W22 | 208-230V | 1 | 1 | 21-22.5A | - | 184JM | 3400-3600 RPM | 8A | €1,207.31 | |
| J | 01018ES1C215JM-W22 | 208-230V | 1 | - | - | - | 215JM | 1700-1800 RPM | - | €1,661.87 | |
| D | 00518ES1C184T-W22 | 208-230V AC | 1 | 1.15 | - | - | 182/4T | 1700-1800 RPM | 6.9-8A | €1,271.82 | |
| E | 00318ES1C184TC-W22 | 208-230V AC | 1 | 1.15 | - | - | 182/4TC | 1700-1800 RPM | 5.78-6.7A | €1,089.27 | |
| A | 01036ES1C215JP-W22 | 208-230V AC | 1 | - | - | - | 215JP | 3600 RPM | - | €1,754.78 |
