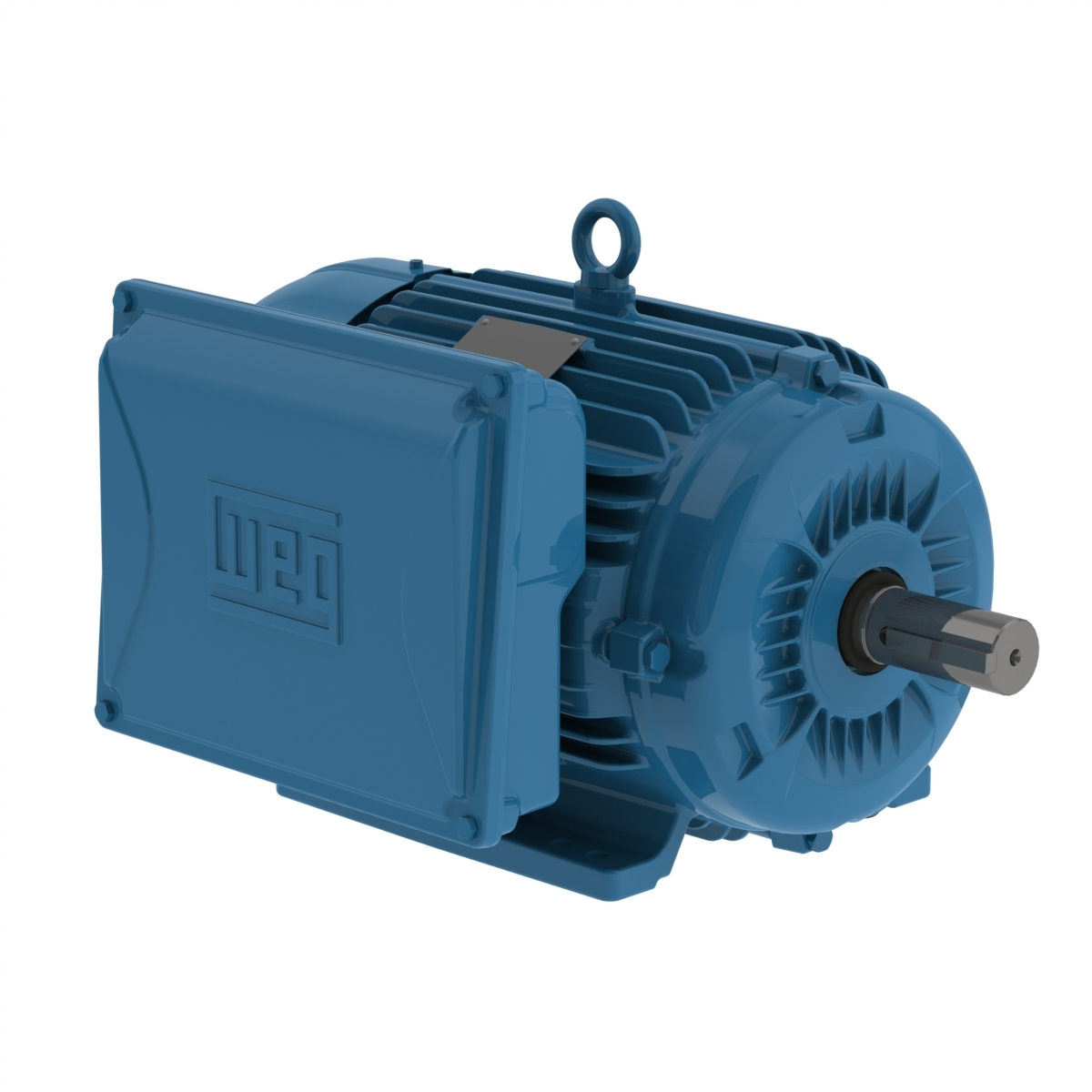

WEG 00512ES1E215T-W22 Electric Motor, 5Hp, 60Hz, 1200 Rpm | BC2GWE

WEG 00512ES1E215T-W22 14091668 General Purpose Motor, 5 HP, 1200 RPM, 208/230/460 V, 1 Phase, TEFC, 215T Frame

Item: BC2GWEModel: 00512ES1E215T-W22Cross Ref: 14091668
Check Availability
In Stock

Get it by Tuesday, Jul 7

€1,847.24 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 10.6/21.2-22A , 22-21.2/10.6A
Bearing Cap No
Break Down Torque 250%
Cable Press Material Sem
Cold Locked Rotor Time 25 sec.
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 50% 77% , 85%
Efficiency 75% 83.9%
Efficiency @ 1 % 92%
Efficiency @ 100% 82.5%
Efficiency @ 75 % 90%
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange Without
Flange Type Without
Frame 213/5T
Frame Material Cast Iron
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 14 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 185-178/89A , 89/178-185A
Locked Rotor Time (cold) 25 sec.
Locked Rotor Time(hot) 14 sec.
Locked Rotor Torque 220%
Lrc 8.4X(Code K)
Main Terminal Box Hole 1"
Main Terminal Box Hole Size 1"
Main Terminal Box Hole Type NPT
Main Terminal Box Type NPT
Moment Of Inertia 1.98 lbs.-sq. ft.
Moment Of Inertia (j) 1.98 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 1175 RPM
Mounting F-1 , Foot Mounted
No Load Amps 3.75/6.47-7.5A , 6.47-7.5/3.75A
No. Of Poles 6
Noise Level 63 dBA
Output 5 hp
Output Rating 5 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting RAL5009 207A (ISO 12944-C2)
Phase 1
Power Factor 100% 0.92
Power Factor 50% 0.85
Power Factor 75% 0.9
Power Factor @ 1 % 82.5
Power Factor @ 50 % 77
Power Factor @ 75 % 83.9
Rotation CW, CCW
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.08%
Speed 1100-1200 RPM , 1175 RPM
Starting Method Direct On Line
Synchronous Speed 1200 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 22.3 lbs.-ft.
Tropicalized Painting Without
Voltage 208-230/460V , 208-230/460V AC

Shipping Info:

Ship weight (kg) 77.4
Ship height (cm)24.38
Ship length (cm)39.88
Ship width (cm)30.99
Country of OriginUS

Product Variants

ProductModelVoltagePhaseFrequencyService FactorHpFull Load AmpsFrameNo. Of PolesPrice
WEG 00518ES1E184JP Electric Motor, 5Hp, 60Hz, 1730 Rpm | BB2KMT 00518ES1E184JP-W22208-230/460V160 Hz1-10.7/21.4-22.5A184JP4€1,184.93
WEG 01018ES1E215JM Electric Motor, 10Hp, 60Hz, 1730 Rpm | BB2LRY 01018ES1E215JM-W22208-230/460V160 Hz110 hp19.5/39-44.8A215JM4€1,661.87
WEG 00736ES1E213TC Electric Motor, 7.5Hp, 60Hz, 3600 Rpm | BB2WCL 00736ES1E213TC-W22208-230/460V AC160 Hz1.157 1/2 hp-213TC2-
RFQ
WEG .5036ES1E143JM Electric Motor, 0.5Hp, 60Hz, 3530 Rpm | BB3JYX .5036ES1E143JM-W22208-230/460V160 Hz11/2 hp1.9/3.8A143JM2€553.52
WEG 01018ES1E215JP Electric Motor, 10Hp, 60Hz, 1730 Rpm | BB3NDP 01018ES1E215JP-W22208-230/460V160 Hz1-19.5/39-44.8A215JP4€2,226.15
WEG 00318ES1E184JM Electric Motor, 3Hp, 60Hz, 1750 Rpm | BB3QDA 00318ES1E184JM-W22208-230/460V160 Hz1-6.8/13.6-14.7A184JM4€979.44
WEG 00318ES1E184JP Electric Motor, 3Hp, 60Hz, 1750 Rpm | BB4PXT 00318ES1E184JP-W22208-230/460V160 Hz1-6.8/13.6-14.7A184JP4€979.44
