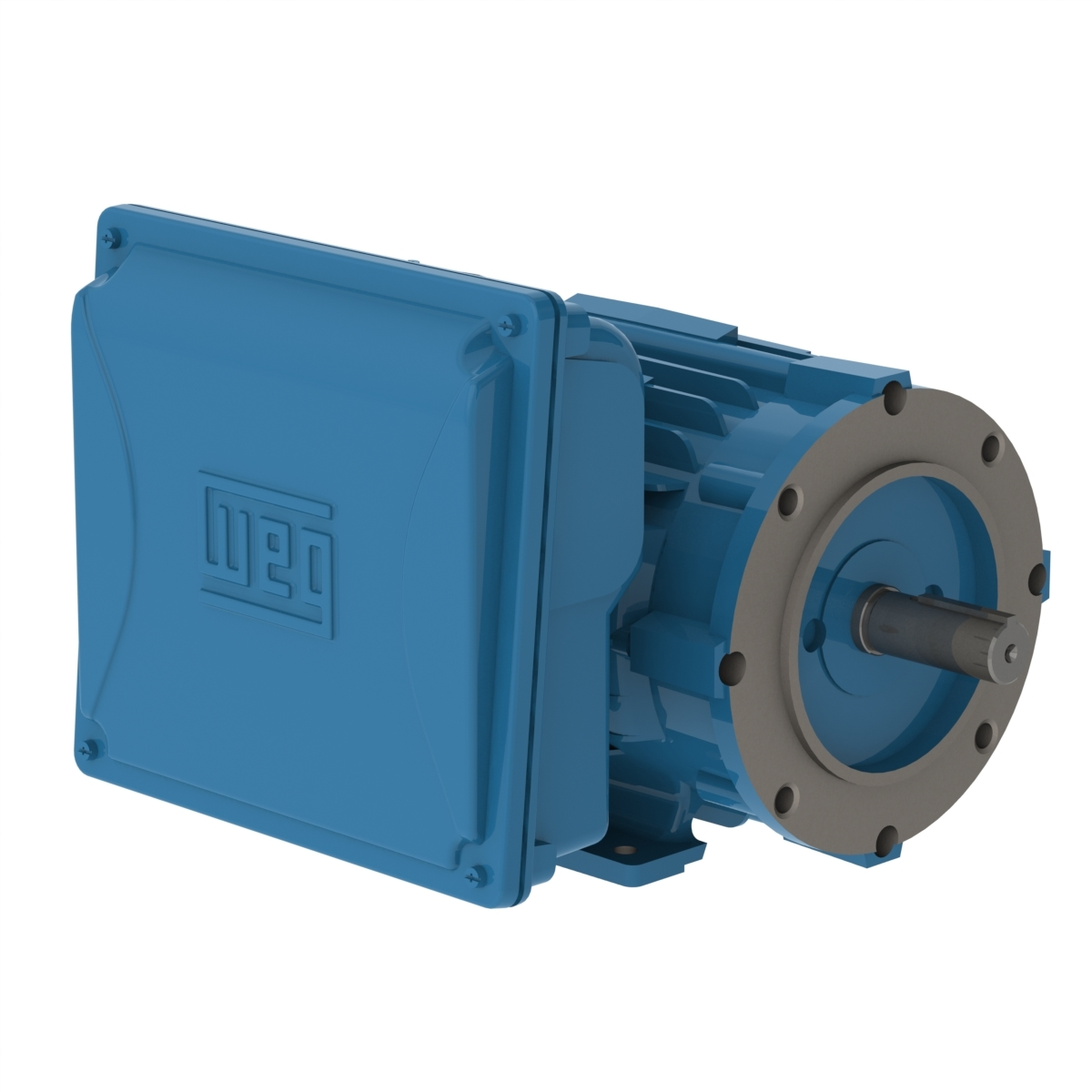

WEG 00336ES1E145TC-W22 Electric Motor, 3Hp, 60Hz, 3600 Rpm | BC3HHK

WEG 00336ES1E145TC-W22 14018469 General Purpose Motor, 3 HP, 2 Poles, 143/5TC Frame, 1 Phase, 208-230/460 V, 60 Hz, IC411-TEFC, Foot Mounted

Item: BC3HHKModel: 00336ES1E145TC-W22Cross Ref: 14018469
Check Availability
In Stock

Get it by Monday, Jul 13

€1,048.71 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 13.6-12.5/6.25A , 6.25/12.5-13.6A
Bearing Cap Yes
Break Down Torque 240%
Cold Locked Rotor Time 12 sec.
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 50% 72.5% , 96%
Efficiency 75% 76%
Efficiency @ 1 % 97%
Efficiency @ 100% 78.5%
Efficiency @ 75 % 97%
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange C
Flange Type C
Frame 143/5TC
Frame Material Cast Iron
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 7 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 45/90-97.9A , 97.9-90/45A
Locked Rotor Time 7 sec.
Locked Rotor Time (cold) 12 sec.
Locked Rotor Torque 220%
Lrc 7.2X(Code H)
Main Terminal Box Hole 3/4"
Main Terminal Box Hole Size 3/4"
Main Terminal Box Hole Type NPT
Main Terminal Box Type NPT
Moment Of Inertia 0.0664 lbs.-sq. ft.
Moment Of Inertia (j) 0.0664 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 3510 RPM
Mounting F-1 , Foot Mounted
No Load Amps 1.45/2.5-2.9A , 2.5-2.9/1.45A
No. Of Poles 2
Noise Level 69 dBA
Output 3 hp
Output Rating 3 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting RAL5009 207A (ISO 12944-C2)
Phase 1
Power Factor 100% 0.97
Power Factor 50% 0.96
Power Factor 75% 0.97
Power Factor @ 1 % 78.5
Power Factor @ 50 % 72.5
Power Factor @ 75 % 76
Product Datasheet weg-00336es1e145tc-w22.pdf
Rotation CW, CCW
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Locking Device Without
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 2.5%
Speed 3400-3600 RPM , 3510 RPM
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 4.49 lbs.-ft.
Tropicalized Painting Without
Voltage 208-230/460V , 208-230/460V AC

Shipping Info:

Ship weight (kg) 25.2
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Documentation:

Datasheet

Product Variants

ProductModelVoltagePhaseFrequencyService FactorHpFull Load AmpsFrameNo. Of PolesPrice
WEG 00518ES1E184JP Electric Motor, 5Hp, 60Hz, 1730 Rpm | BB2KMT 00518ES1E184JP-W22208-230/460V160 Hz1-10.7/21.4-22.5A184JP4€1,184.93
WEG 01018ES1E215JM Electric Motor, 10Hp, 60Hz, 1730 Rpm | BB2LRY 01018ES1E215JM-W22208-230/460V160 Hz110 hp19.5/39-44.8A215JM4€1,661.87
WEG 00736ES1E213TC Electric Motor, 7.5Hp, 60Hz, 3600 Rpm | BB2WCL 00736ES1E213TC-W22208-230/460V AC160 Hz1.157 1/2 hp-213TC2-
RFQ
WEG .5036ES1E143JM Electric Motor, 0.5Hp, 60Hz, 3530 Rpm | BB3JYX .5036ES1E143JM-W22208-230/460V160 Hz11/2 hp1.9/3.8A143JM2€553.52
WEG 01018ES1E215JP Electric Motor, 10Hp, 60Hz, 1730 Rpm | BB3NDP 01018ES1E215JP-W22208-230/460V160 Hz1-19.5/39-44.8A215JP4€2,226.15
WEG 00318ES1E184JM Electric Motor, 3Hp, 60Hz, 1750 Rpm | BB3QDA 00318ES1E184JM-W22208-230/460V160 Hz1-6.8/13.6-14.7A184JM4€979.44
WEG 00318ES1E184JP Electric Motor, 3Hp, 60Hz, 1750 Rpm | BB4PXT 00318ES1E184JP-W22208-230/460V160 Hz1-6.8/13.6-14.7A184JP4€979.44
