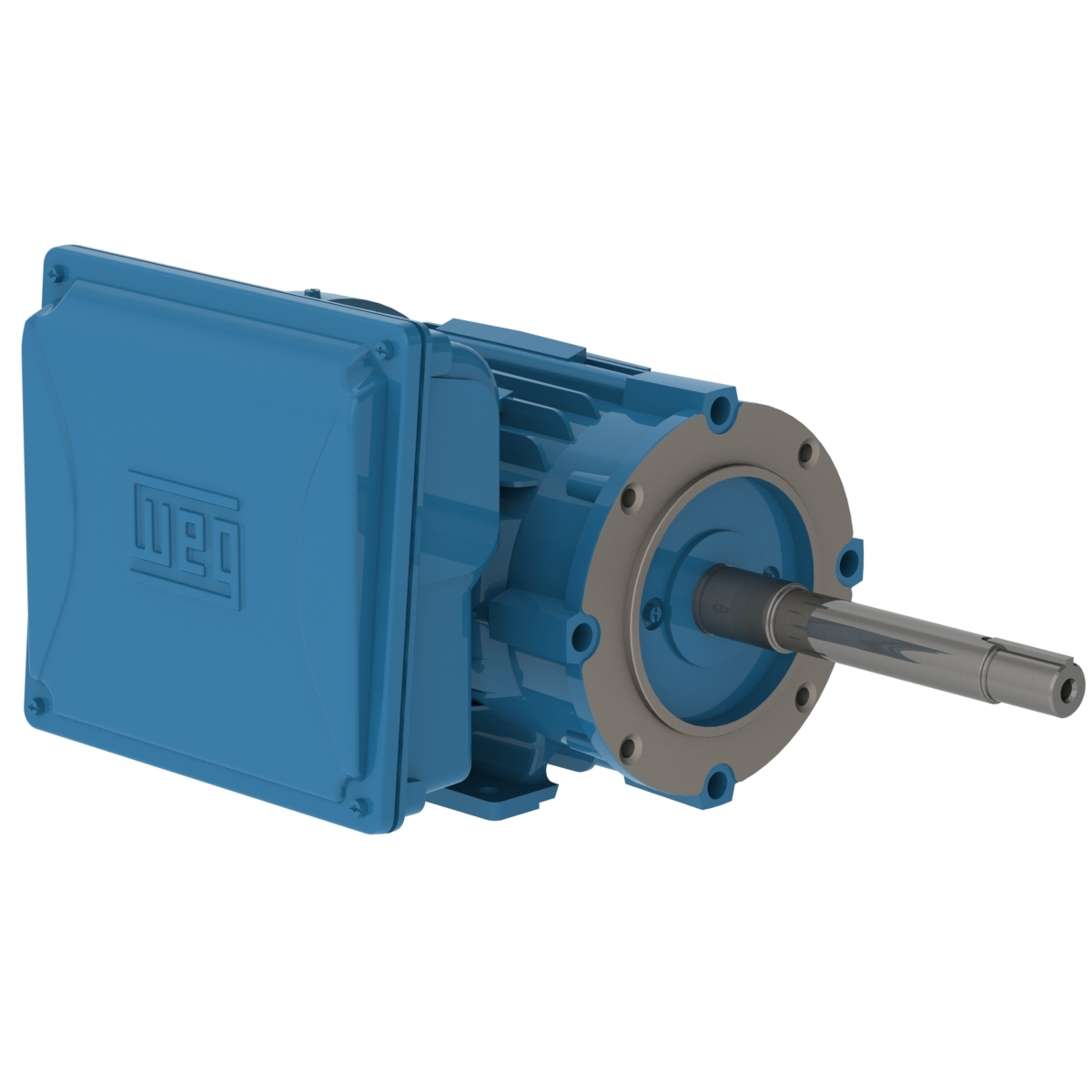

WEG 00158ES1E145JP-W22 14183266 Pump Motor, 1.5 HP, 1800 RPM, 208/230/460V, TEFC, 145JP, W22 Sev Duty
1800 rpm
1.5 hp
145JP
208/230/460V
Get it by Tuesday, Aug 25
€899.57 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 3.38/6.76-7A |
| Bearing Cap | Yes |
| Break Down Torque | 229% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 10 sec. |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 65% |
| Efficiency 75% | 73% |
| Efficiency @ 100% | 77% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Frame | 145JP |
| Frame Material | Cast Iron |
| Frame Size | 143/5JP |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hp | 1 1/2 hp |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 27/54.1-56A |
| Locked Rotor Time | 6 sec. |
| Locked Rotor Time (cold) | 10 sec. |
| Locked Rotor Time(hot) | 6 sec. |
| Locked Rotor Torque | 260% |
| Lrc | 8x(Code K) |
| Main Terminal Box Hole | 3/4" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia (j) | 0.1628 lbs.-sq. ft. |
| Mounting | F-1 |
| Nde Bearing Seal | V Ring |
| No Load Amps | 1.15/1.98-2.3A |
| No. Of Poles | 4 |
| Noise Level | 58 dBA |
| Output Rating | 1 1/2 hp |
| Overload Protection | No |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 1 |
| Power Factor 100% | 0.92 |
| Power Factor 50% | 0.9 |
| Power Factor 75% | 0.92 |
| Replaces | 00158ES1E145JP |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Slip | 2.5% |
| Speed | 1700-1800 RPM , 1755 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 4.49 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 208-230/460V , 208/230/460V AC |
Shipping Info:
| Ship weight (kg) | 22.05 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 52.83 |
| Ship width (cm) | 37.08 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Phase | Frequency | Service Factor | Hp | Full Load Amps | Frame | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00518ES1E184JP-W22 | 208-230/460V | 1 | 60 Hz | 1 | - | 10.7/21.4-22.5A | 184JP | 4 | €1,184.93 | |
 |
01018ES1E215JM-W22 | 208-230/460V | 1 | 60 Hz | 1 | 10 hp | 19.5/39-44.8A | 215JM | 4 | €1,661.87 | |
 |
00736ES1E213TC-W22 | 208-230/460V AC | 1 | 60 Hz | 1.15 | 7 1/2 hp | - | 213TC | 2 | - | RFQ
|
 |
.5036ES1E143JM-W22 | 208-230/460V | 1 | 60 Hz | 1 | 1/2 hp | 1.9/3.8A | 143JM | 2 | €553.52 | |
|
01018ES1E215JP-W22 | 208-230/460V | 1 | 60 Hz | 1 | - | 19.5/39-44.8A | 215JP | 4 | €2,226.15 | |
|
00318ES1E184JM-W22 | 208-230/460V | 1 | 60 Hz | 1 | - | 6.8/13.6-14.7A | 184JM | 4 | €979.44 | |
 |
00318ES1E184JP-W22 | 208-230/460V | 1 | 60 Hz | 1 | - | 6.8/13.6-14.7A | 184JP | 4 | €979.44 |
