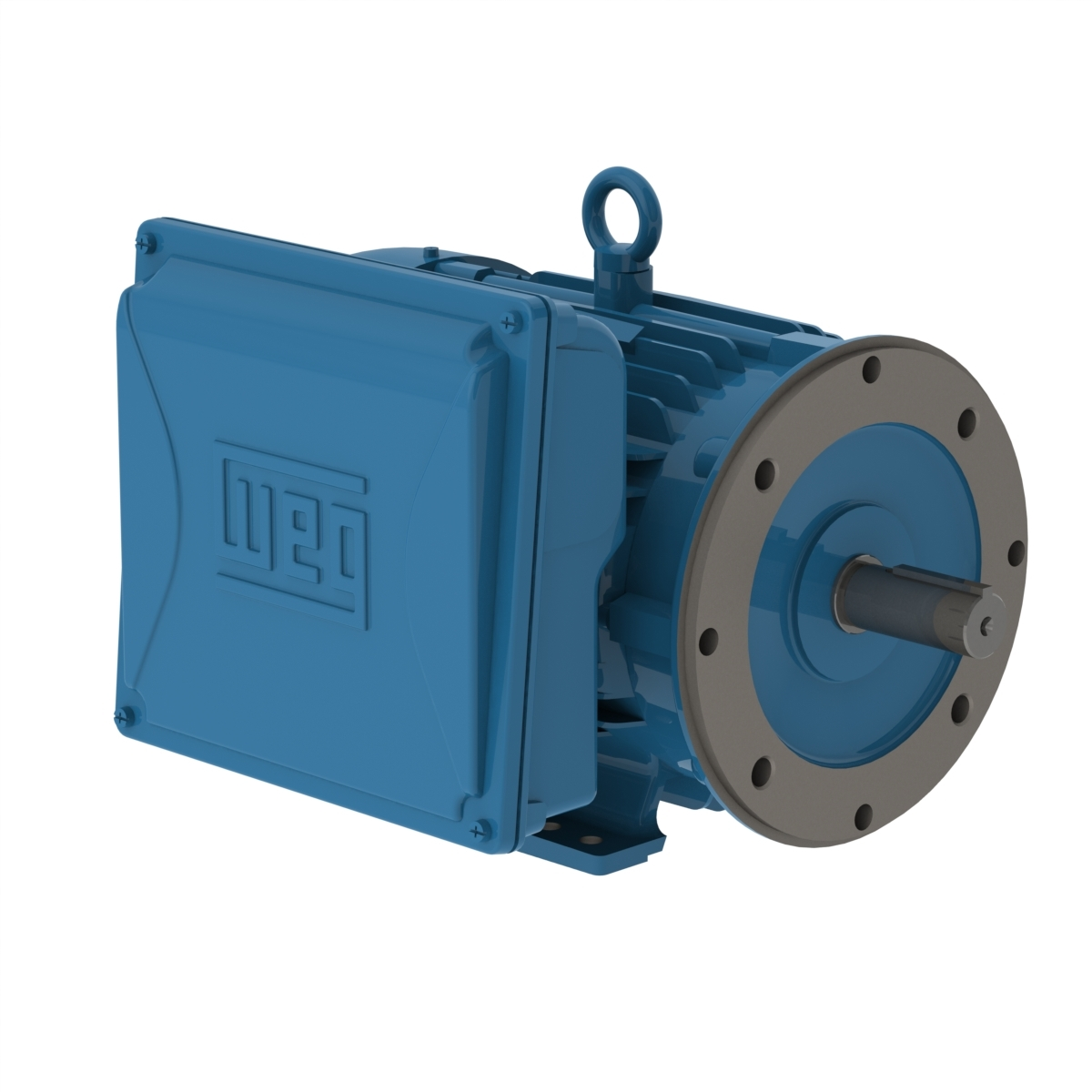

WEG 00518ES1E184TC-W22 14112693 General Purpose Motor, 5 HP, 4 Poles, 182/4TC Frame, 1 Phase, 208-230/460 V, 60 Hz, IC411-TEFC, Foot Mounted
Get it by Tuesday, Sep 1
€1,315.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 10.7/21.4-23A , 23-21.4/10.7A |
| Bearing Cap | Yes |
| Cold Locked Rotor Time | 12 sec. |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 72.5% , 89% |
| Efficiency 75% | 78.5% |
| Efficiency @ 1 % | 94% |
| Efficiency @ 100% | 80% |
| Efficiency @ 75 % | 93% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | 182/4TC |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 7 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 150-139/69.5A , 69.5/139-150A |
| Locked Rotor Time | 7 sec. |
| Locked Rotor Time (cold) | 12 sec. |
| Locked Rotor Torque | 330% |
| Lrc | 6.5X(Code H) |
| Main Terminal Box Hole | 1" |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Moment Of Inertia | 0.4357 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.4357 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1730 RPM |
| Mounting | F-1 , Foot Mounted |
| No Load Amps | 3.6/6.21-7.2A , 6.9-8/4A |
| No. Of Poles | 4 |
| Noise Level | 60 dBA |
| Output | 5 hp |
| Output Rating | 5 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 207A (ISO 12944-C2) |
| Phase | 1 |
| Power Factor 100% | 0.94 |
| Power Factor 50% | 0.89 |
| Power Factor 75% | 0.93 |
| Power Factor @ 1 % | 80 |
| Power Factor @ 50 % | 72.5 |
| Power Factor @ 75 % | 78.5 |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 3.89% |
| Speed | 1700-1800 RPM , 1730 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 15.2 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 208-230/460V , 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 53.1 |
| Ship height (cm) | 24.38 |
| Ship length (cm) | 39.88 |
| Ship width (cm) | 30.99 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Phase | Service Factor | Hp | Full Load Amps | Frame | Insulation Class | Duty Cycle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00518ES1E184JP-W22 | 208-230/460V | 1 | 1 | - | 10.7/21.4-22.5A | 184JP | Class F | Cont.(S1) | €1,184.93 | |
 |
01018ES1E215JM-W22 | 208-230/460V | 1 | 1 | 10 hp | 19.5/39-44.8A | 215JM | Class F | Cont.(S1) | €1,661.87 | |
 |
00736ES1E213TC-W22 | 208-230/460V AC | 1 | 1.15 | 7 1/2 hp | - | 213TC | Class F | S1 | - | RFQ
|
 |
.5036ES1E143JM-W22 | 208-230/460V | 1 | 1 | 1/2 hp | 1.9/3.8A | 143JM | Class F | - | €553.52 | |
|
01018ES1E215JP-W22 | 208-230/460V | 1 | 1 | - | 19.5/39-44.8A | 215JP | Class F | Cont.(S1) | €2,226.15 | |
|
00318ES1E184JM-W22 | 208-230/460V | 1 | 1 | - | 6.8/13.6-14.7A | 184JM | Class F | Cont.(S1) | €979.44 | |
 |
00318ES1E184JP-W22 | 208-230/460V | 1 | 1 | - | 6.8/13.6-14.7A | 184JP | Class F | Cont.(S1) | €979.44 |
