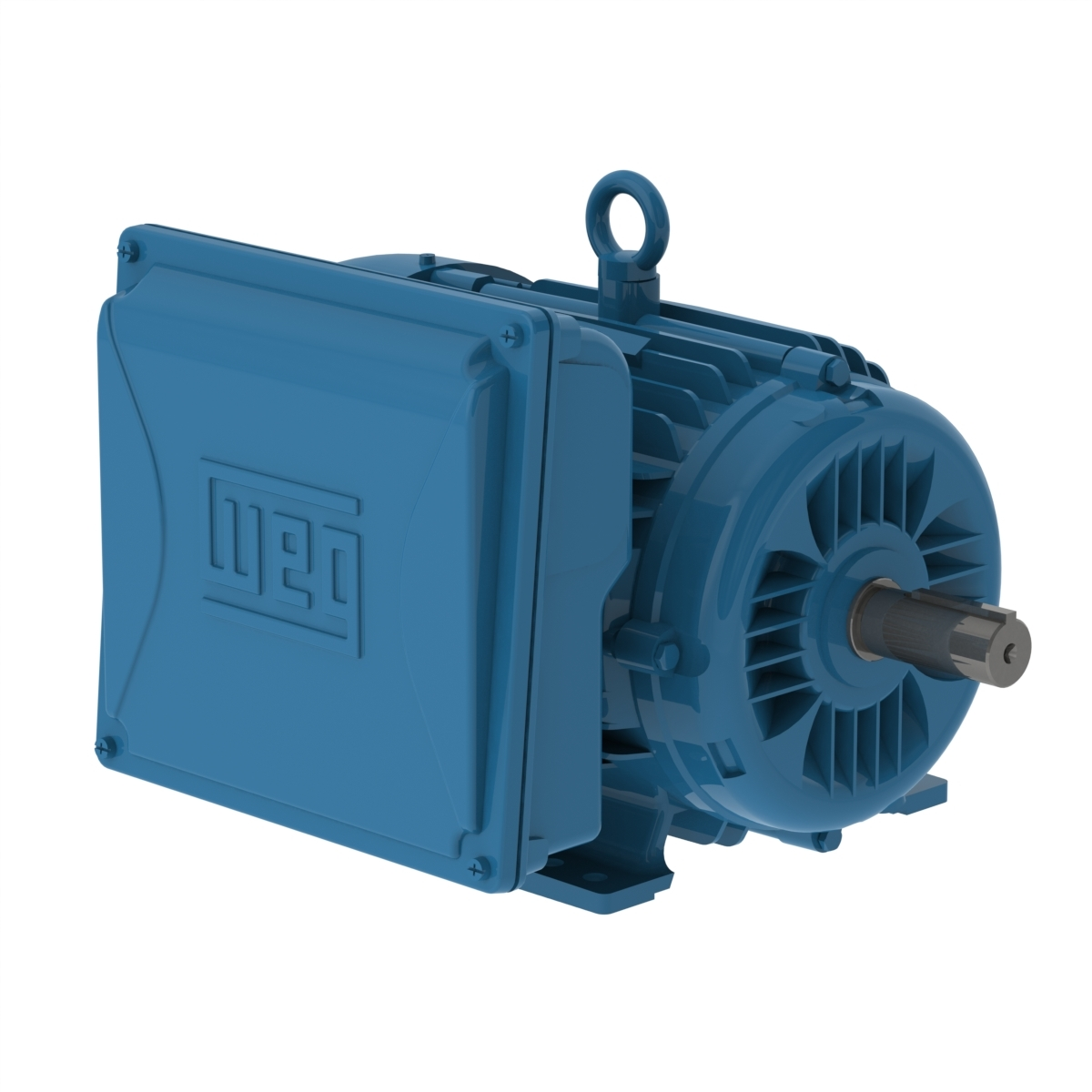

WEG 00536ES1B184T-W22 14165571 General Purpose Motor, 5 HP, 3600 RPM, 115/208/230 V, 1 Phase, TEFC, 184T Frame
3600 rpm
5 hp
184T
115/208/230V
Get it by Tuesday, Sep 1
€1,240.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 20.8-22.1/41.1A , 41.1/22.1-20.8A |
| Bearing Cap | No |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 10 sec. |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 75% | 82.5% |
| Efficiency @ 1 % | 89% |
| Efficiency @ 100% | 84% |
| Efficiency @ 75 % | 87% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | 182/4T |
| Frame Material | Cast Iron |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 6 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 181-192/358A , 358/192-181A |
| Locked Rotor Time | 6 sec. |
| Locked Rotor Time (cold) | 10 sec. |
| Locked Rotor Torque | 320% |
| Lrc | 8.7X(Code K) |
| Main Terminal Box Hole | 1" |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Moment Of Inertia | 0.1898 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.1898 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 3515 RPM |
| Mounting | F-1 , Foot Mounted |
| No Load Amps | 0-7.5/15A , 15/0-7.5A |
| No. Of Poles | 2 |
| Output | 5 hp |
| Output Rating | 5 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 207A (ISO 12944-C2) |
| Phase | 1 |
| Power Factor 100% | 0.89 |
| Power Factor 50% | 0.78 |
| Power Factor 75% | 0.87 |
| Power Factor @ 1 % | 84 |
| Power Factor @ 50 % | 78 |
| Power Factor @ 75 % | 82.5 |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.36% |
| Speed | 3400-3600 RPM , 3515 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 7.47 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 115/208-230V , 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 51.75 |
| Ship height (cm) | 24.38 |
| Ship length (cm) | 39.88 |
| Ship width (cm) | 30.99 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Phase | Service Factor | Hp | Full Load Amps | Frame | Insulation Class | Duty Cycle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00518ES1E184JP-W22 | 208-230/460V | 1 | 1 | - | 10.7/21.4-22.5A | 184JP | Class F | Cont.(S1) | €1,184.93 | |
 |
01018ES1E215JM-W22 | 208-230/460V | 1 | 1 | 10 hp | 19.5/39-44.8A | 215JM | Class F | Cont.(S1) | €1,661.87 | |
 |
00736ES1E213TC-W22 | 208-230/460V AC | 1 | 1.15 | 7 1/2 hp | - | 213TC | Class F | S1 | - | RFQ
|
 |
.5036ES1E143JM-W22 | 208-230/460V | 1 | 1 | 1/2 hp | 1.9/3.8A | 143JM | Class F | - | €553.52 | |
|
01018ES1E215JP-W22 | 208-230/460V | 1 | 1 | - | 19.5/39-44.8A | 215JP | Class F | Cont.(S1) | €2,226.15 | |
|
00318ES1E184JM-W22 | 208-230/460V | 1 | 1 | - | 6.8/13.6-14.7A | 184JM | Class F | Cont.(S1) | €979.44 | |
 |
00318ES1E184JP-W22 | 208-230/460V | 1 | 1 | - | 6.8/13.6-14.7A | 184JP | Class F | Cont.(S1) | €979.44 |
