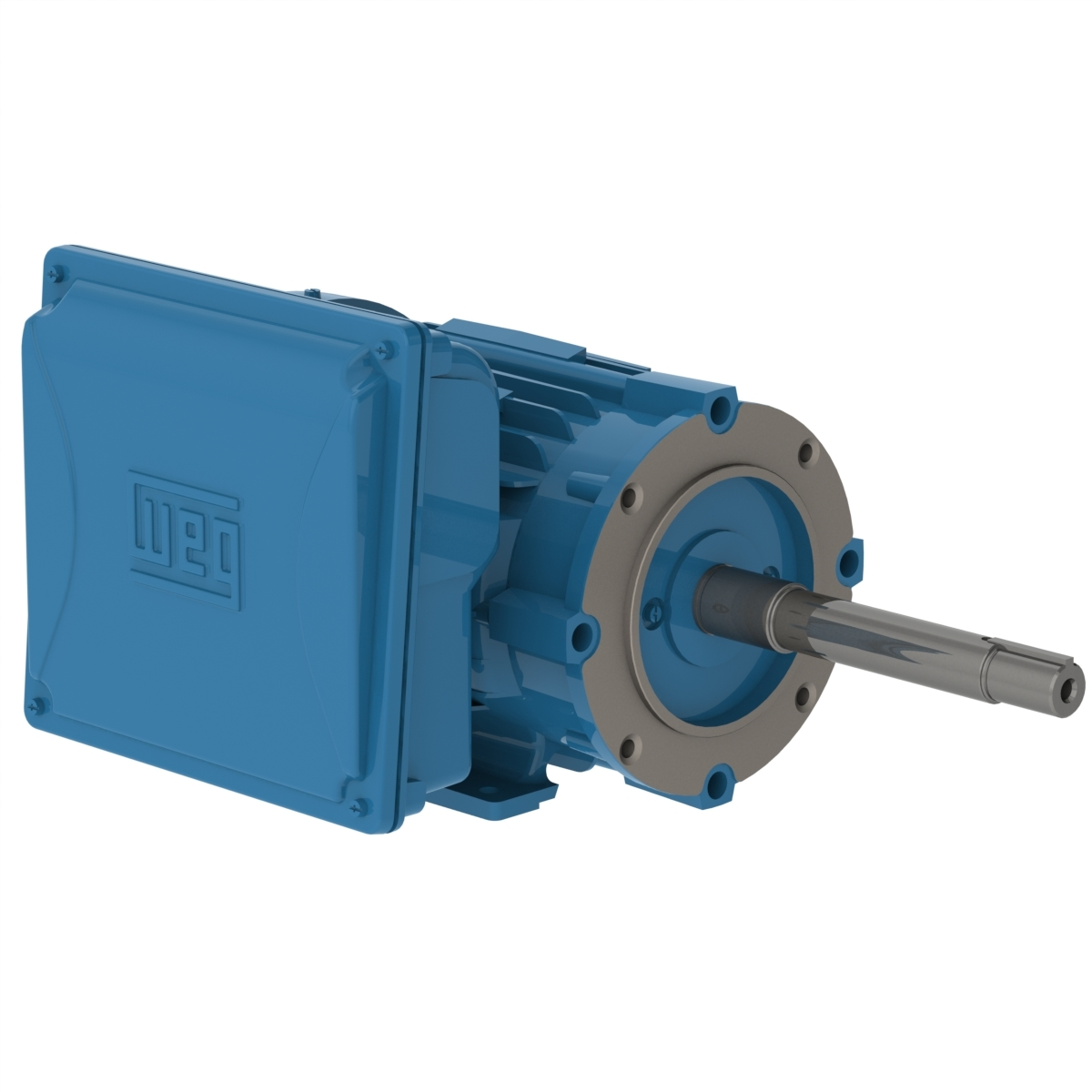

WEG 00336ES1B145JP-W22 14180701 Pump Motor, 3 HP, 3600 RPM, 115/208/230V, TEFC, 145JP, W22 Sev Duty
3600 rpm
3 hp
145JP
115/208/230V
Get it by Tuesday, Sep 1
€1,283.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 12.5-13.6/25A |
| Bearing Cap | Yes |
| Break Down Torque | 240% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 12 sec. |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 72.5% |
| Efficiency 75% | 76% |
| Efficiency @ 100% | 78.5% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Frame | 145JP |
| Frame Material | Cast Iron |
| Frame Size | 143/5JP |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 90-97.9/180A |
| Locked Rotor Time | 7 sec. |
| Locked Rotor Time (cold) | 12 sec. |
| Locked Rotor Time(hot) | 7 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 7.2x(Code H) |
| Main Terminal Box Hole | 3/4" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia (j) | 0.0664 lbs.-sq. ft. |
| Mounting | F-1 |
| Nde Bearing Seal | V Ring |
| No Load Amps | 2.5-2.9/5.8A |
| No. Of Poles | 2 |
| Noise Level | 69 dBA |
| Output Rating | 3 hp |
| Overload Protection | No |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 1 |
| Power Factor 100% | 0.97 |
| Power Factor 50% | 0.96 |
| Power Factor 75% | 0.97 |
| Replaces | 00336ES1B145JP |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Slip | 2.36% |
| Speed | 3400-3600 RPM , 3515 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 4.48 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 115/208-230V , 115/208/230V AC |
Shipping Info:
| Ship weight (kg) | 27.9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Voltage | Phase | Service Factor | Hp | Full Load Amps | Frame | Insulation Class | Duty Cycle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00518ES1E184JP-W22 | 208-230/460V | 1 | 1 | - | 10.7/21.4-22.5A | 184JP | Class F | Cont.(S1) | €1,184.93 | |
 |
01018ES1E215JM-W22 | 208-230/460V | 1 | 1 | 10 hp | 19.5/39-44.8A | 215JM | Class F | Cont.(S1) | €1,661.87 | |
 |
00736ES1E213TC-W22 | 208-230/460V AC | 1 | 1.15 | 7 1/2 hp | - | 213TC | Class F | S1 | - | RFQ
|
 |
.5036ES1E143JM-W22 | 208-230/460V | 1 | 1 | 1/2 hp | 1.9/3.8A | 143JM | Class F | - | €553.52 | |
|
01018ES1E215JP-W22 | 208-230/460V | 1 | 1 | - | 19.5/39-44.8A | 215JP | Class F | Cont.(S1) | €2,226.15 | |
|
00318ES1E184JM-W22 | 208-230/460V | 1 | 1 | - | 6.8/13.6-14.7A | 184JM | Class F | Cont.(S1) | €979.44 | |
 |
00318ES1E184JP-W22 | 208-230/460V | 1 | 1 | - | 6.8/13.6-14.7A | 184JP | Class F | Cont.(S1) | €979.44 |
