Which type of switch is used in these pumps?

These sump pumps have a piggyback switch connection that transfers power to pumps, turning them On.

What is the maximum water temperature of Dayton submersible sump pumps?

These pumps can withstand water temperatures up to 104 degrees F.

How often should a sump pump be serviced?

Sump pumps should ideally be serviced every three to four months.

Submersible Sump Pumps

Dayton submersible sump pumps are used to pump slurry and excess water from flooded basements or work sites.

Filter

Style	Model	Hp	Body Material	Voltage	Switch Actuation	Base Material	Cord Length	Max. Head	Impeller Material	Price
A	N140	1 hp	Cast Iron	115V AC	No Switch Included	Cast Iron	20 ft.	50 ft.	Thermoplastic	€961.45
B	BN140	1 hp	Cast Iron	115V AC	Tether Float	Cast Iron	20 ft.	50 ft.	Thermoplastic	€1,061.00
C	3YU68	1/2 hp	Polypropylene	115V AC	Tether Float	Polypropylene	10 ft.	25 ft.	Polyamide	€291.59
D	3BB82	1/2 hp	Cast Iron	120V AC	Vertical Float	Cast Iron	15 ft.	32 ft.	Cast Iron	€631.76
E	3BB77	1/2 hp	Cast Iron	120V AC	Tether Float	Cast Iron	15 ft.	32 ft.	Cast Iron	€583.68
F	511710	1/2 hp	Cast Iron	115V AC	Sensor	Polypropylene	15 ft.	30 ft.	Nylon	€1,221.09
G	3BB74	1/2 hp	Cast Iron	120V AC	No Switch Included	Cast Iron	15 ft.	32 ft.	Cast Iron	€616.97
H	3BB79	1/2 hp	Cast Iron	120V AC	Diaphragm	Cast Iron	15 ft.	32 ft.	Cast Iron	€768.25
E	3BB69	1/2 hp	Cast Iron	120V AC	Tether Float	Cast Iron	10 ft.	30 ft.	Cast Iron	€394.24
I	M3098	1/2 hp	Cast Iron	115V AC	Vertical Float	Cast Iron	15 ft.	21 ft.	Cast Iron	€1,306.95
J	N98	1/2 hp	Cast Iron	115V AC	No Switch Included	Engineered Thermoplastic	15 ft.	23 ft.	Plastic	€476.93
K	1APP2	1/2 hp	Stainless Steel	120V AC	Dual Micro Reed	Cast Iron	13 ft.	33 ft.	Polycarbonate	€589.44
L	1XHV7	1/2 hp	Aluminum	120V AC	No Switch Included	Cast Iron	10 ft.	32 ft.	Engineered Polymer	€365.53
M	N137	1/2 hp	Cast Iron	115V AC	No Switch Included	Cast Iron	10 ft.	26 ft.	Bronze, Cast Iron	€692.50
D	3BB71	1/2 hp	Cast Iron	120V AC	Vertical Float	Cast Iron	10 ft.	30 ft.	Cast Iron	€429.85
N	3YU75	1/2 hp	Stainless Steel	115V AC	Tether Float	Stainless Steel	15 ft.	23 ft.	Stainless Steel	€566.14
O	M98	1/2 hp	Cast Iron	115V AC	Vertical Float	Engineered Thermoplastic	9 ft.	23 ft.	Plastic	€502.67
P	3YU73	1/2 hp	Stainless Steel	115V AC	Vertical Float	Polypropylene	10 ft.	25 ft.	Polyamide	€542.13
Q	3YU59	1/2 hp	Polypropylene	115V AC	Vertical Float	Polypropylene	10 ft.	35 ft.	Polyamide	€355.70
R	3YU71	1/2 hp	Polypropylene	115V AC	Vertical Float	Polypropylene	10 ft.	25 ft.	Polyamide	€373.63
S	M137	1/2 hp	Cast Iron	115V AC	Vertical Float	Cast Iron	10 ft.	26 ft.	Bronze, Cast Iron	€870.29
G	3BB73	1/3 hp	Cast Iron	120V AC	No Switch Included	Cast Iron	15 ft.	30 ft.	Cast Iron	€397.40
D	3BB81	1/3 hp	Cast Iron	120V AC	Vertical Float	Cast Iron	15 ft.	30 ft.	Cast Iron	€515.74
E	3BB76	1/3 hp	Cast Iron	120V AC	Tether Float	Cast Iron	15 ft.	30 ft.	Cast Iron	€445.78
H	3BB78	1/3 hp	Cast Iron	120V AC	Diaphragm	Cast Iron	15 ft.	30 ft.	Cast Iron	€532.03

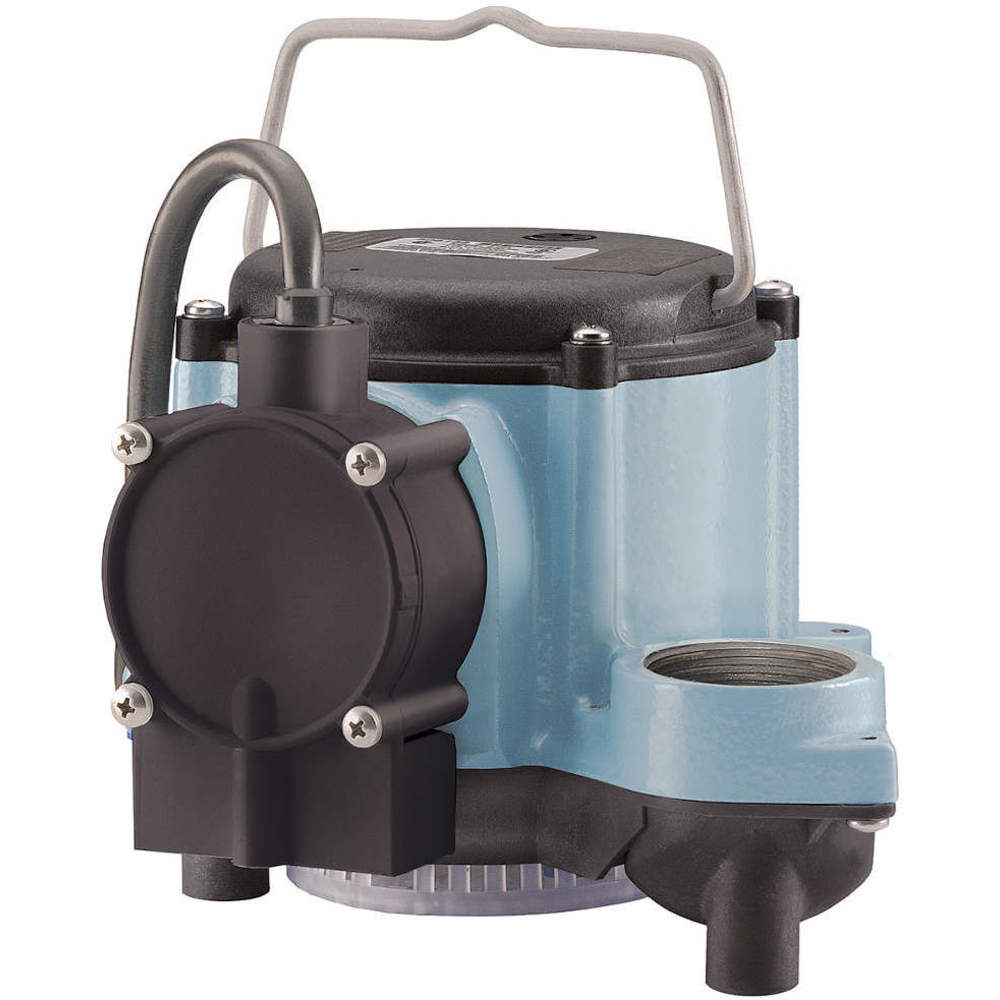

T	506158	1/3 hp	Cast Iron	115V AC	Diaphragm	Polypropylene	10 ft.	18 ft.	Nylon	€303.87

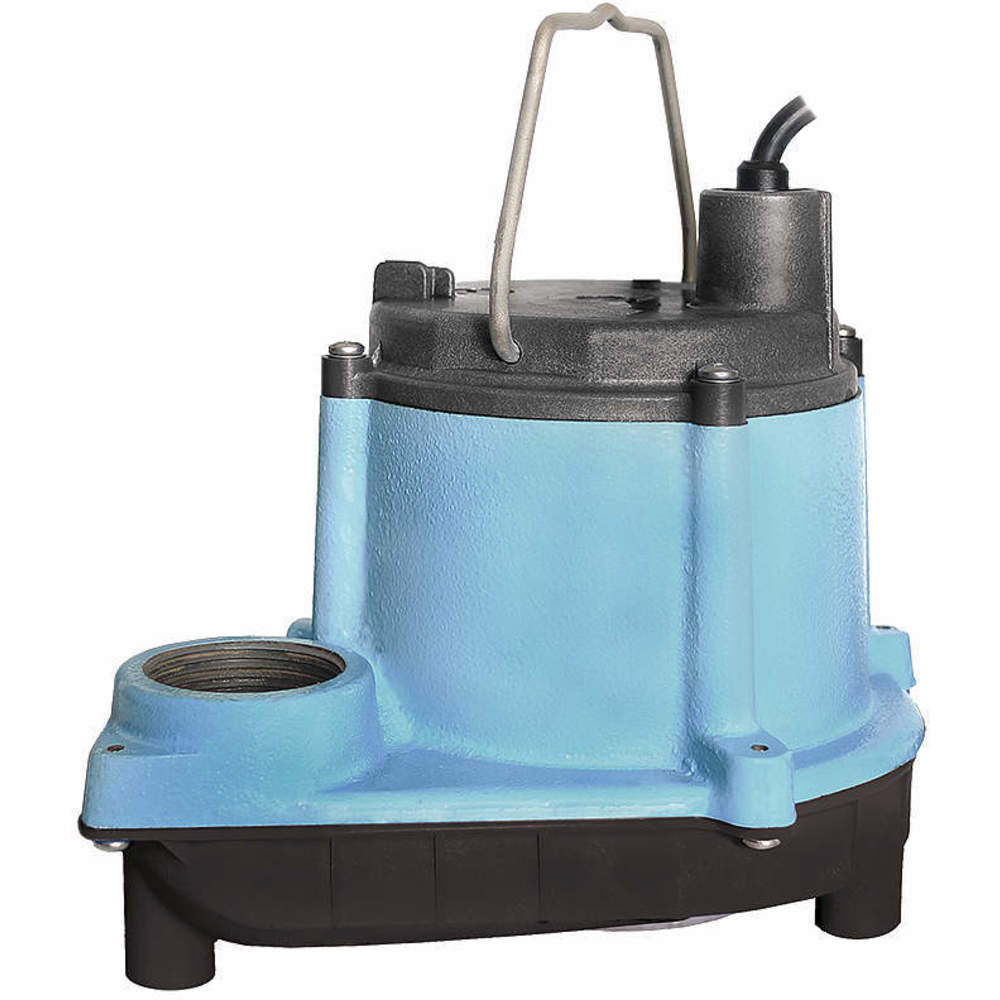

U	506271	1/3 hp	Cast Iron	115V AC	No Switch Included	Polypropylene	10 ft.	18 ft.	Nylon	€347.41
Q	3YU58	1/3 hp	Polypropylene	115V AC	Vertical Float	Polypropylene	10 ft.	26 ft.	Polyamide	€430.09
V	3YU65	1/3 hp	Polypropylene	115V AC	No Switch Included	Polypropylene	10 ft.	22 ft.	Polyamide	€249.98
D	3BB70	1/3 hp	Cast Iron	120V AC	Vertical Float	Cast Iron	10 ft.	30 ft.	Cast Iron	€367.27
C	3YU67	1/3 hp	Polypropylene	115V AC	Tether Float	Polypropylene	10 ft.	22 ft.	Polyamide	€315.75
E	3BB68	1/3 hp	Cast Iron	120V AC	Tether Float	Cast Iron	10 ft.	30 ft.	Cast Iron	€332.59
R	3YU70	1/3 hp	Polypropylene	115V AC	Vertical Float	Polypropylene	10 ft.	22 ft.	Polyamide	€342.48
P	3YU72	1/3 hp	Stainless Steel	115V AC	Vertical Float	Polypropylene	10 ft.	22 ft.	Polyamide	€479.95
N	3YU74	1/3 hp	Stainless Steel	115V AC	Tether Float	Stainless Steel	15 ft.	16 ft.	Stainless Steel	€637.80
W	1XHV6	1/3 hp	Aluminum	120V AC	No Switch Included	Cast Iron	13 ft.	29 ft.	Engineered Polymer	€178.54
K	1APP1	1/3 hp	Stainless Steel	120V AC	Dual Micro Reed	Cast Iron	13 ft.	30 ft.	Polycarbonate	€490.05
X	506160	1/3 hp	Cast Iron	120V AC	Diaphragm	Polypropylene	8 ft.	18 ft.	Nylon	€310.29
Y	BN2057	1/3 hp	Cast Iron	115V AC	Tether Float	Cast Iron	10 ft.	18 ft.	Cast Iron	€825.75
C	3YU66	1/4 hp	Polypropylene	115V AC	Tether Float	Polypropylene	10 ft.	20 ft.	Polyamide	€264.74
Q	3YU57	1/4 hp	Polypropylene	115V AC	Vertical Float	Polypropylene	10 ft.	21 ft.	Polyamide	€367.03
R	3YU69	1/4 hp	Polypropylene	115V AC	Vertical Float	Polypropylene	10 ft.	20 ft.	Polyamide	€340.76
N	3YU76	3/4 hp	Stainless Steel	115V AC	Tether Float	Stainless Steel	15 ft.	26 ft.	Stainless Steel	€781.65
Z	3BB80	3/4 hp	Cast Iron	120V AC	Diaphragm	Cast Iron	15 ft.	37 ft.	Cast Iron	€888.74
D	3BB72	3/4 hp	Cast Iron	120V AC	Vertical Float	Cast Iron	10 ft.	32 ft.	Cast Iron	€549.90
G	3BB75	3/4 hp	Cast Iron	120V AC	No Switch Included	Cast Iron	15 ft.	37 ft.	Cast Iron	€692.86
A1	N53	3/10 hp	Cast Iron	115V AC	No Switch Included	Polypropylene	9 ft.	19 ft.	Thermoplastic	€314.79
A1	E57	3/10 hp	Cast Iron	230V AC	No Switch Included	Cast Iron	9 ft.	19 ft.	Cast Iron	€414.32
B1	N57	3/10 hp	Cast Iron	115V AC	No Switch Included	Cast Iron	9 ft.	19 ft.	Cast Iron	€346.01
C1	M53	3/10 hp	Cast Iron	115V AC	Vertical Float	Polypropylene	9 ft.	19 ft.	Plastic With Metal Insert	€405.32
D1	M55	3/10 hp	Cast Bronze	115V AC	Vertical Float	Polypropylene	9 ft.	19 ft.	Bronze	€2,320.03
C1	M57	3/10 hp	Cast Iron	115V AC	Vertical Float	Cast Iron	9 ft.	19 ft.	Cast Iron	€356.98

Submersible Sump Pumps

Dayton submersible sump pumps are used to pump slurry and excess water from flooded basements or work sites. These pumps feature housing made of cast iron / polypropylene / stainless steel / aluminium for low friction, high flexural strength and corrosion resistance. They are equipped with SiC / Buna-N / CRB / CMC seals for watertight, oiltight and dustproof sealing. These sump pumps deliver speeds up to 3600 rpm, have a maximum load capacity of 300 lb, and are available in 1/4, 1/3, 1/2 & 3/4 hp variants.

Working Mechanism

Submersible pumps push water to the surface by converting rotary energy to kinetic energy and finally to pressure energy.
The rotation of the impeller pushes the water through the diffuser, and from there, it goes to the surface.

Features

These Dayton sump pumps feature housing made of cast iron / polypropylene / stainless steel / aluminium for low friction, high flexural strength and corrosion resistance.
They are equipped with SiC / Buna-N / CRB / CMC seals for watertight, oiltight and dustproof sealing.
These sump pumps deliver speeds up to 3600 rpm and have a maximum load capacity of 300 lb.
They are available in 1/4, 1/3, 1/2 & 3/4 hp variants.
