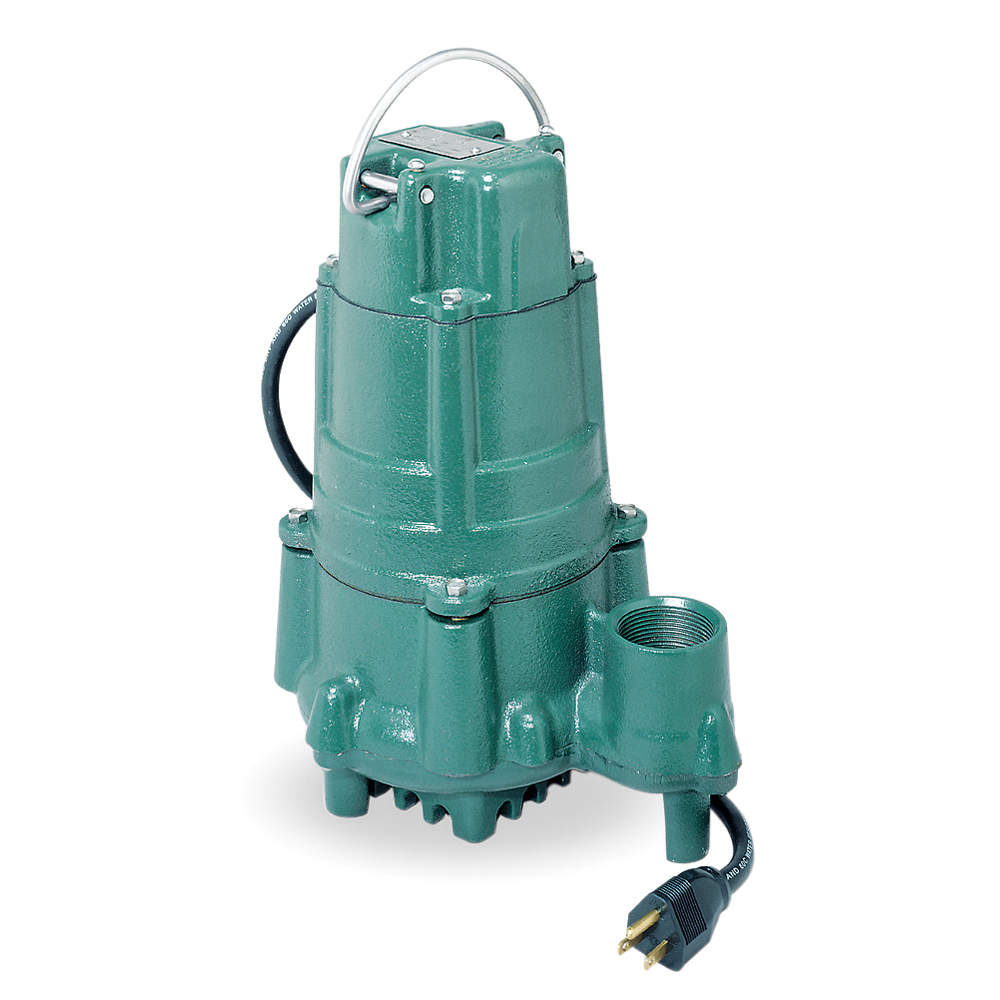

ZOELLER N140 Sump Pump 1 Hp 1-1/2 Inch Npt 50ft Max Cast Iron
Get it by Wednesday, Dec 24
10.00% off
€865.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Submersible Sump Pump |
| Alarm Included | No |
| Amps | 12A |
| Base Material | Cast Iron |
| Body Dia. | 10 1/8" |
| Body Material | Cast Iron |
| Cord Length | 20 ft. |
| Cord Length - Pumps | 20 ft. |
| Dia. | 10 1/8" |
| Diameter | 10 1/8" |
| Discharge Dia. | 1 1/2" |
| Discharge Gender | Female |
| Discharge Npt | 1-1/2" |
| Discharge Size | 1 1/2" |
| Discharge Type | FNPT |
| Duty Cycle | Continuous |
| Flow Rate @ 10 Ft. | 80 GPM |
| Flow Rate @ 10 Ft. Of Head | 80 GPM |
| Flow Rate @ 15 Ft. Of Head | 73 GPM |
| Flow Rate @ 20 Ft. | 66 GPM |
| Flow Rate @ 20 Ft. Of Head | 66 GPM |
| Flow Rate @ 25 Ft. | 59 GPM |
| Flow Rate @ 30 Ft. | 50 GPM |
| Flow Rate @ 40 Ft. | 32 GPM |
| Flow Rate @ 5 Ft. | 86 GPM |
| Flow Rate @ 5 Ft. Of Head | 86 GPM |
| Frequency | 60 Hz |
| Gauge | 16 AWG |
| Housing Material | Cast Iron |
| Hp | 1 hp |
| Impeller Material | Thermoplastic |
| Impeller Material - Pumps | Polypropylene |
| Manufacturers Warranty Length | 1 yr. |
| Max. Flow Rate @ 15 Ft. | 73 GPM |
| Max. Head | 50 ft. |
| Max. Head - Pumps | 50 ft. |
| Max. Liquid Temp. | 130°F |
| Max. Solid Dia. | 3/4" |
| Min. Sump Pit Dia. | 18" |
| Nec Cord Designation | SOW |
| No. Of Conductors | 3 |
| Outlet | 1 1/2" Fnpt |
| Overall Height | 12 5/8" |
| Pump Body Material | Cast Iron |
| Rated Voltage | 115V |
| Rpm | 3450 RPM |
| Shaft Material | Carbon Ceramic |
| Shaft Seal Material | Carbon Ceramic |
| Shaft Seal Material - Pumps | Ceramic, Carbon |
| Switch Actuation | No Switch Included |
| Switch Electrical Connection | No Switch Included |
| Switch Type - Pumps | No Switch Included |
| Thermal Protection | Yes |
| Top Material | Cast Iron |
| Voltage | 115V AC |
| Voltage - Pumps | 120V AC |
Shipping Info:
| Ship weight (kg) | 21.22 |
| Ship height (cm) | 32.07 |
| Ship length (cm) | 35.05 |
| Ship width (cm) | 32.07 |
| HS code | 8413702004 |
| Country of Origin | US |
Product Variants
| Product | Model | Hp | Body Material | Voltage | Switch Actuation | Base Material | Cord Length | Max. Head | Impeller Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BN140 | 1 hp | Cast Iron | 115V AC | Tether Float | Cast Iron | 20 ft. | 50 ft. | Thermoplastic | €1,061.00 | |
 |
1APP1 | 1/3 hp | Stainless Steel | 120V AC | Dual Micro Reed | Cast Iron | 13 ft. | 30 ft. | Polycarbonate | €490.05 | |
|
1APP2 | 1/2 hp | Stainless Steel | 120V AC | Dual Micro Reed | Cast Iron | 13 ft. | 33 ft. | Polycarbonate | €589.44 | |
 |
1XHV6 | 1/3 hp | Aluminum | 120V AC | No Switch Included | Cast Iron | 13 ft. | 29 ft. | Engineered Polymer | €178.54 | |
 |
1XHV7 | 1/2 hp | Aluminum | 120V AC | No Switch Included | Cast Iron | 10 ft. | 32 ft. | Engineered Polymer | €365.53 | |
 |
M53 | 3/10 hp | Cast Iron | 115V AC | Vertical Float | Polypropylene | 9 ft. | 19 ft. | Plastic With Metal Insert | €405.32 | |
 |
M55 | 3/10 hp | Cast Bronze | 115V AC | Vertical Float | Polypropylene | 9 ft. | 19 ft. | Bronze | €2,320.03 |
