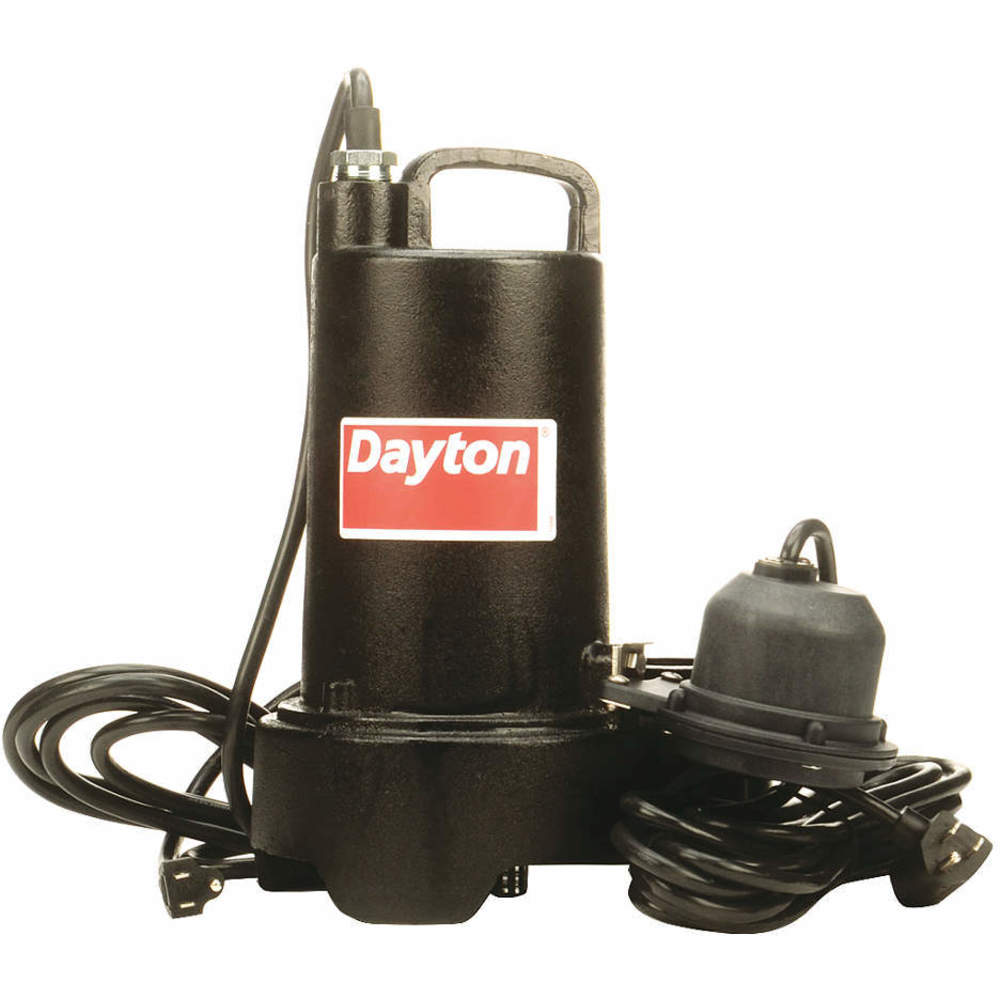

DAYTON 3BB78 Sump Pump 1/3 Hp 1-1/2 Npt 15 Feet
Get it by Monday, Feb 16
10.00% off
€478.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Submersible Sump Pump |
| Alarm Included | No |
| Amps | 6.8A |
| Ansi Type | IA |
| Base Material | Cast Iron |
| Base Spread | 78" |
| Bearing Type | Lower Ball, Upper Ball |
| Body Dia. | 10" |
| Body Material | Cast Iron |
| Bottom Width | 31 3/4" |
| Cord Length | 15 ft. |
| Cord Length - Pumps | 15 ft. |
| Dia. | 10" |
| Diameter | 10" |
| Discharge Dia. | 1 1/2" |
| Discharge Gender | Female |
| Discharge Npt | 1-1/2" |
| Discharge Size | 1 1/2" |
| Discharge Type | FNPT |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Flow Rate @ 10 Ft. | 57 GPM |
| Flow Rate @ 10 Ft. Of Head | 57 GPM |
| Flow Rate @ 15 Ft. Of Head | 45 GPM |
| Flow Rate @ 20 Ft. | 30 GPM |
| Flow Rate @ 20 Ft. Of Head | 30 GPM |
| Flow Rate @ 25 Ft. | 15 GPM |
| Flow Rate @ 5 Ft. | 65 GPM |
| Flow Rate @ 5 Ft. Of Head | 65 GPM |
| Frequency | 60 Hz |
| Gauge | 18 AWG |
| Gauge/conductor | 18/3 |
| Housing Material | Cast Iron |
| Hp | 1/3 hp |
| Impeller Material | Cast Iron |
| Impeller Material - Pumps | Cast Iron |
| Ladder Height | 10 ft. |
| Load Capacity | 300 lbs. |
| Material | Aluminum |
| Max. Flow Rate @ 15 Ft. | 45 GPM |
| Max. Head | 30 ft. |
| Max. Head - Pumps | 30 ft. |
| Max. Liquid Temp. | 104°F |
| Max. Solid Dia. | 1/2" |
| Mechanical Seal Material | SIC |
| Motor Type | Oil Filled, Permanent Split Capacitor |
| Nec Cord Designation | SJTOW |
| No. Of Conductors | 3 |
| No. Of Steps | 9 |
| Off Point | 5" |
| On Point | 14 1/2" |
| Outlet | 1 1/2" Fnpt |
| Overall Height | 11 3/4" |
| Pump Body Material | Cast Iron |
| Shaft Material | Carbon Ceramic |
| Shaft Seal Material | Carbon Ceramic |
| Shaft Seal Material - Pumps | Carbon Ceramic |
| Step Depth | 3" |
| Switch Actuation | Diaphragm |
| Switch Electrical Connection | Piggyback |
| Switch Type | Diaphragm |
| Switch Type - Pumps | Diaphragm |
| Thermal Protection | Yes |
| Top Material | Cast Iron |
| Tread | Ribbed |
| Voltage | 120V AC |
| Voltage - Pumps | 120V AC |
Shipping Info:
| Ship weight (kg) | 15.08 |
| Ship height (cm) | 40.13 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 26.16 |
| HS code | 8413702004 |
| Country of Origin | CN |
Product Variants
| Product | Model | Hp | Body Material | Voltage | Switch Actuation | Base Material | Cord Length | Max. Head | Impeller Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1APP1 | 1/3 hp | Stainless Steel | 120V AC | Dual Micro Reed | Cast Iron | 13 ft. | 30 ft. | Polycarbonate | €490.05 | |
|
1APP2 | 1/2 hp | Stainless Steel | 120V AC | Dual Micro Reed | Cast Iron | 13 ft. | 33 ft. | Polycarbonate | €589.44 | |
 |
1XHV6 | 1/3 hp | Aluminum | 120V AC | No Switch Included | Cast Iron | 13 ft. | 29 ft. | Engineered Polymer | €178.54 | |
 |
1XHV7 | 1/2 hp | Aluminum | 120V AC | No Switch Included | Cast Iron | 10 ft. | 32 ft. | Engineered Polymer | €365.53 | |
 |
M53 | 3/10 hp | Cast Iron | 115V AC | Vertical Float | Polypropylene | 9 ft. | 19 ft. | Plastic With Metal Insert | €405.32 | |
 |
M55 | 3/10 hp | Cast Bronze | 115V AC | Vertical Float | Polypropylene | 9 ft. | 19 ft. | Bronze | €2,320.03 | |
|
M57 | 3/10 hp | Cast Iron | 115V AC | Vertical Float | Cast Iron | 9 ft. | 19 ft. | Cast Iron | €356.98 |
