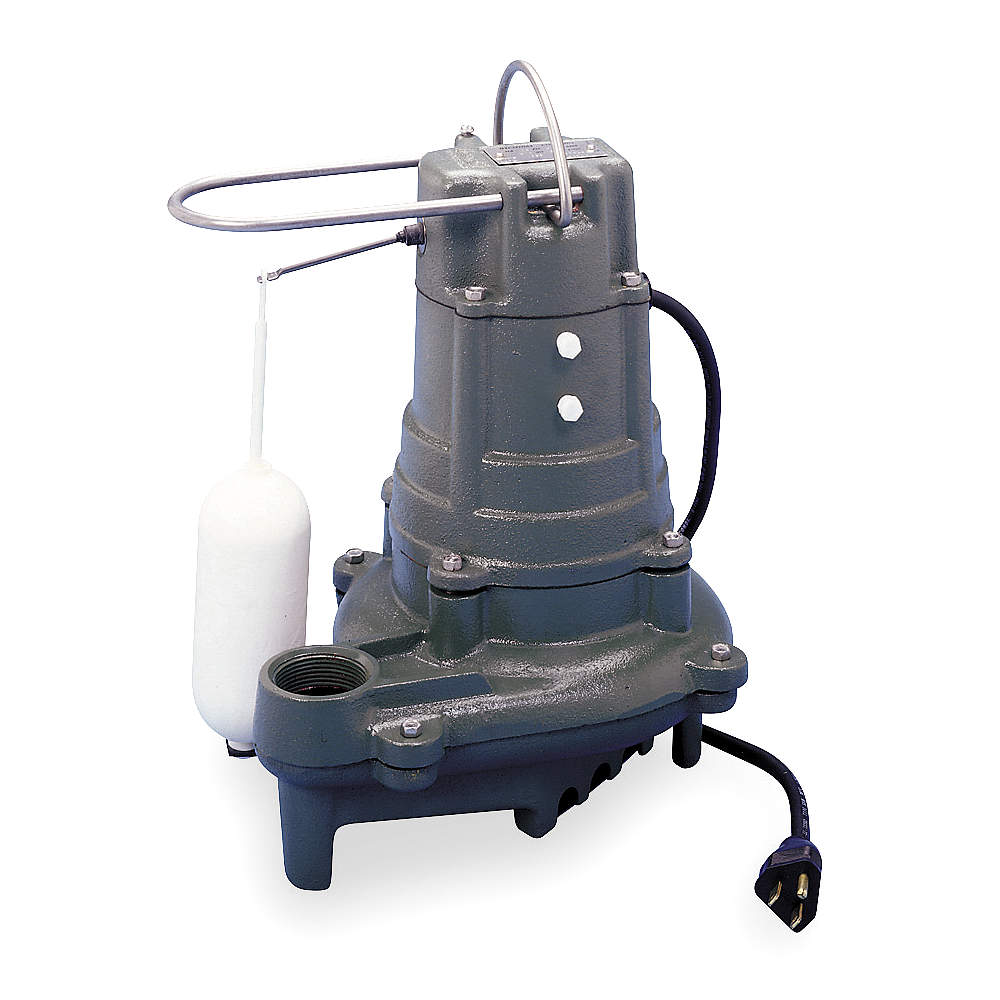

ZOELLER M137 Sump Pump 1/2 Hp 1-1/2 Inch Npt 26ft Max Ci
Get it by Monday, Aug 17
5.00% off
€826.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Submersible Sump Pump |
| Alarm Included | No |
| Amps | 10.7A |
| Base Material | Cast Iron |
| Body Dia. | 11 3/4" |
| Body Material | Cast Iron |
| Cord Length | 10 ft. |
| Cord Length-pumps | 10 ft. |
| Dia. | 11 3/4" |
| Discharge Dia. | 1 1/2" |
| Discharge Gender | Female |
| Discharge Npt | 1-1/2" |
| Discharge Size | 1 1/2" |
| Discharge Type | FNPT |
| Duty Cycle | Continuous |
| Flow Rate @ 10 Ft. | 79 GPM |
| Flow Rate @ 10 Ft. Of Head | 79 GPM |
| Flow Rate @ 15 Ft. Of Head | 58 GPM |
| Flow Rate @ 20 Ft Of Head | 36 GPM |
| Flow Rate @ 20 Ft. | 36 GPM |
| Flow Rate @ 25 Ft. | 8 GPM |
| Flow Rate @ 5 Ft. | 93 GPM |
| Flow Rate @ 5 Ft. Of Head | 90 GPM |
| Frequency | 60 Hz |
| Gauge | 16 AWG |
| Gauge/conductor | 16/3 |
| Housing Material | Cast Iron |
| Hp | 1/2 hp |
| Impeller Material | Bronze, Cast Iron |
| Impeller Material-pumps | Cast Iron |
| Max. Flow Rate @ 15 Ft. | 64 GPM |
| Max. Head | 26 ft. |
| Max. Head-pumps | 26 ft. |
| Max. Liquid Temp. | 130°F |
| Max. Solid Dia. | 5/8" |
| Min. Sump Pit Dia. | 18" |
| Nec Cord Designation | SJOW |
| No. Of Conductors | 3 |
| Off Point | 2 3/4" |
| On Point | 10" |
| Outlet | 1 1/2" Fnpt |
| Overall Height | 13" |
| Pump Body Material | Cast Iron |
| Series | FLOW-MATE Series |
| Shaft Material | Carbon Ceramic |
| Shaft Seal Material | Carbon Ceramic |
| Shaft Seal Material-pumps | Ceramic, Carbon |
| Speed | 1725 RPM |
| Switch Actuation | Vertical Float |
| Switch Electrical Connection | Integral |
| Switch Type | Vertical |
| Switch Type-pumps | Vertical |
| Thermal Protection | Yes |
| Top Material | Cast Iron |
| Voltage | 115V , 115V AC |
| Voltage-pumps | 120V AC |
Shipping Info:
| Ship weight (kg) | 21.08 |
| Ship height (cm) | 33.02 |
| Ship length (cm) | 34.8 |
| Ship width (cm) | 33.02 |
| HS code | 8413702004 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Cord Length | Hp | Amps | Impeller Material | Base Material | Flow Rate @ 10 Ft. | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BN140 | 115V AC | 20 ft. | 1 hp | 12A | Thermoplastic | Cast Iron | 80 GPM | Cast Iron | €1,061.00 | |
 |
1APP1 | 120V AC | 13 ft. | 1/3 hp | 4A | Polycarbonate | Cast Iron | 50 GPM | Stainless Steel | €392.04 | |
|
1APP2 | 120V AC | 13 ft. | 1/2 hp | 4.3A | Polycarbonate | Cast Iron | 65 GPM | Stainless Steel | €471.55 | |
 |
1XHV6 | 120V AC | 13 ft. | 1/3 hp | 3.8A | Engineered Polymer | Cast Iron | 46 GPM | Aluminum | €142.83 | |
 |
1XHV7 | 120V AC | 10 ft. | 1/2 hp | 4.8A | Engineered Polymer | Cast Iron | 61 GPM | Aluminum | €292.43 | |
 |
M53 | 115V AC | 9 ft. | 3/10 hp | 9.7A | Plastic With Metal Insert | Polypropylene | 34 GPM | Cast Iron | €302.99 | |
 |
M55 | 115V AC | 9 ft. | 3/10 hp | 9.6A | Bronze | Polypropylene | 34 GPM | Cast Bronze | €2,320.03 |
